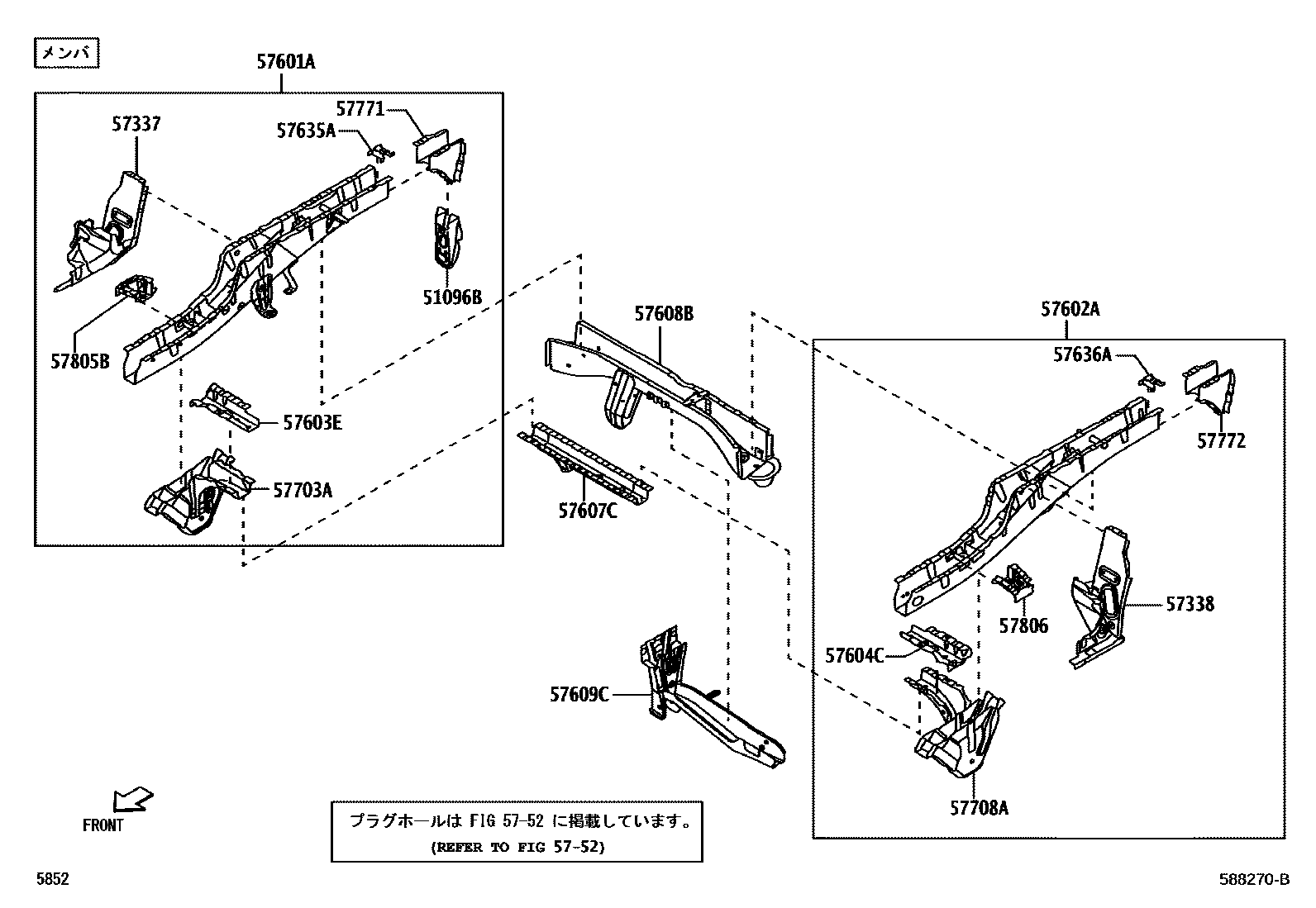

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1���� 0002 1�������

51096BHOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-B5010iS700,710202112

57337OUTRIGGER, REAR RH

main57301-B5020iS700,710202112

57338OUTRIGGER, REAR LH

main57302-B5030iS700,710202112

5752HOLE PLUG

→ Go to FIG 57-52

57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-B5170iS700,710202112

57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-B5030iS700,710202112

57603EEXTENSION SUB-ASSY, REAR SIDE MEMBER, RH

main57631-B5010iS700,710202112

57604CEXTENSION SUB-ASSY, REAR SIDE MEMBER, LH

main57632-B5010iS700,710202112

57607CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-B5110iS700,710202112

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-B5110iS700,710202112

57609CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

main57609-B5080iS700,710202112

57635AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH

main57635-B5020iS700,710202112

57636AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH

main57635-B5020iS700,710202112

57703ABRACKET SUB-ASSY, REAR SUSPENSION ARM, FRONT RH

main57707-B5020iS700,710202112

57708APLATE SUB-ASSY, REAR SPRING, LH

main57708-B5020iS700,710202112

57771PLATE, REAR SPRING, RH

main57723-B5020iS700,710202112

57772PLATE, REAR SPRING, LH

main57723-B5020iS700,710202112

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57801-B5010iS700,710202112

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57802-B5020iS700,710202112

19 parts on this diagram · 2 diagrams in section
