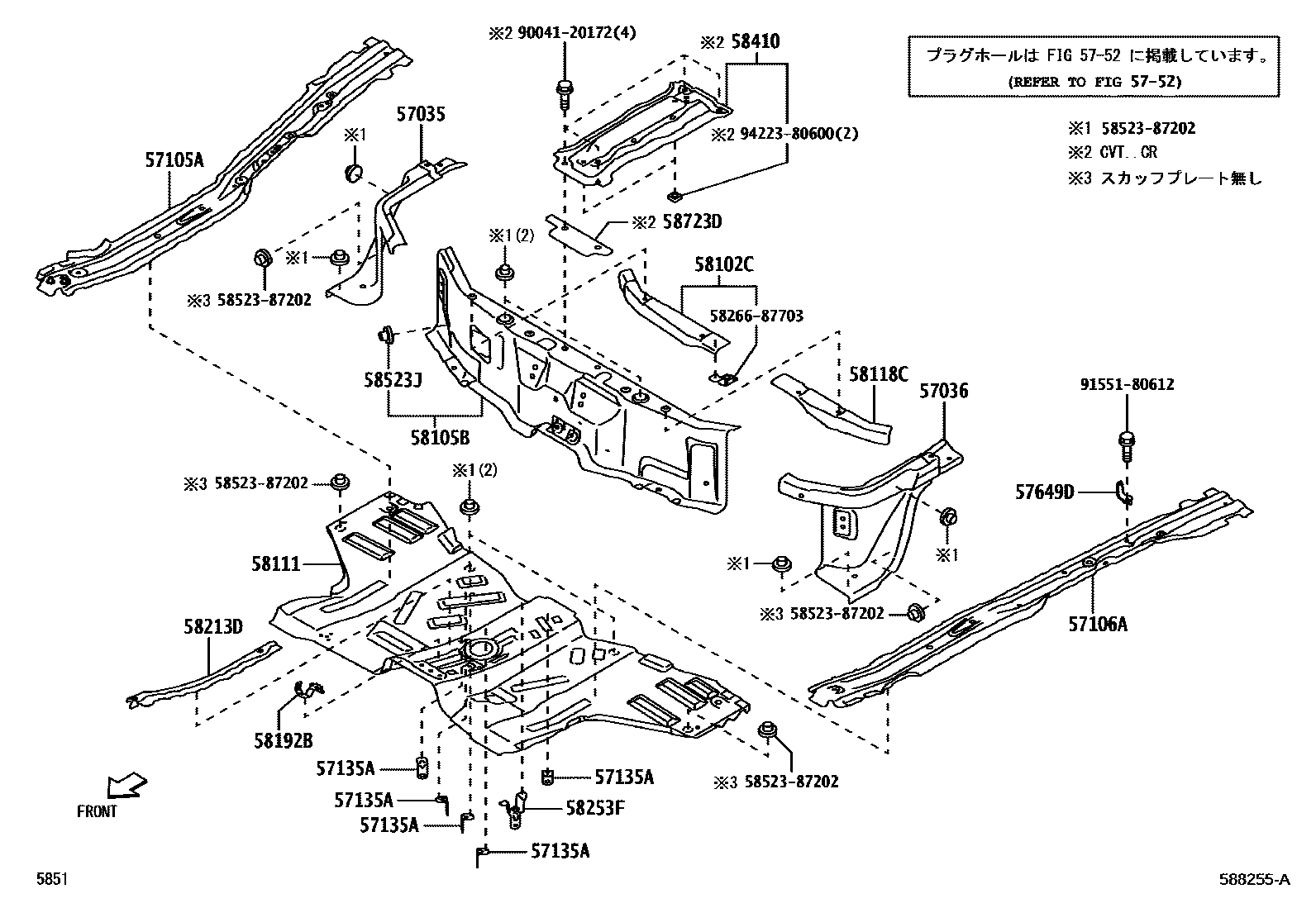

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1��� 0002 1����

57035PANEL SUB-ASSY, FRONT STEP, RH

main57035-B5050iS700,710..SPL202112

main57035-B5090iS700,710..CR,DLX202112

57036PANEL SUB-ASSY, FRONT STEP, LH

main57036-B5070iS700,710..SPL202112

main57036-B5080iS700,710..CR,DLX202112

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-B5040iS700,710202112

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-B5030iS700,710202112

57135ABRACKET, FRONT FLOOR SIDE, RH

main57135-B5010×5iS700,710202112

5752HOLE PLUG

→ Go to FIG 57-52

57649DBRACKET, WIRING HARNESS

main82715-B5830iS700,710202112

58102CREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH

main58102-B5030iS700,710202112

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-B5020iS700,710202112

58111PAN, FRONT FLOOR

main58111-B5130iS700,710..SPL202112

main58111-B5140iS700,710..CR,DLX202112

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-B5030iS700,710202112

58192BPLATE, FRONT FLOOR, REAR

main58192-B5020iS700,710202112

58213DREINFORCEMENT, CENTER FLOOR PANEL

main57551-B5020iS700,710202112

58253FBRACKET, PARKING BRAKE CABLE

main47758-B5020iS700,710202112

58410COVER, ENGINE SERVICE HOLE

main58401-B5120iS700,710..CVT..CR202112

58523JHOOK, MALE, NO.1

main58523-87202×2iS700,710202112

58723DCUSHION, ENGINE SERVICE COVER

main47131-B5010iS700,710..CVT..CR202112

5826687703BRACKET, CONSOLE BOX SUPPORT, FRONT

main58266-87703

5852387202COVER, FRONT SEAT BRACKET

main58523-87202

9004120172

main90041-20172

9155180612

main91551-80612

9422380600

main94223-80600

22 parts on this diagram · 2 diagrams in section
