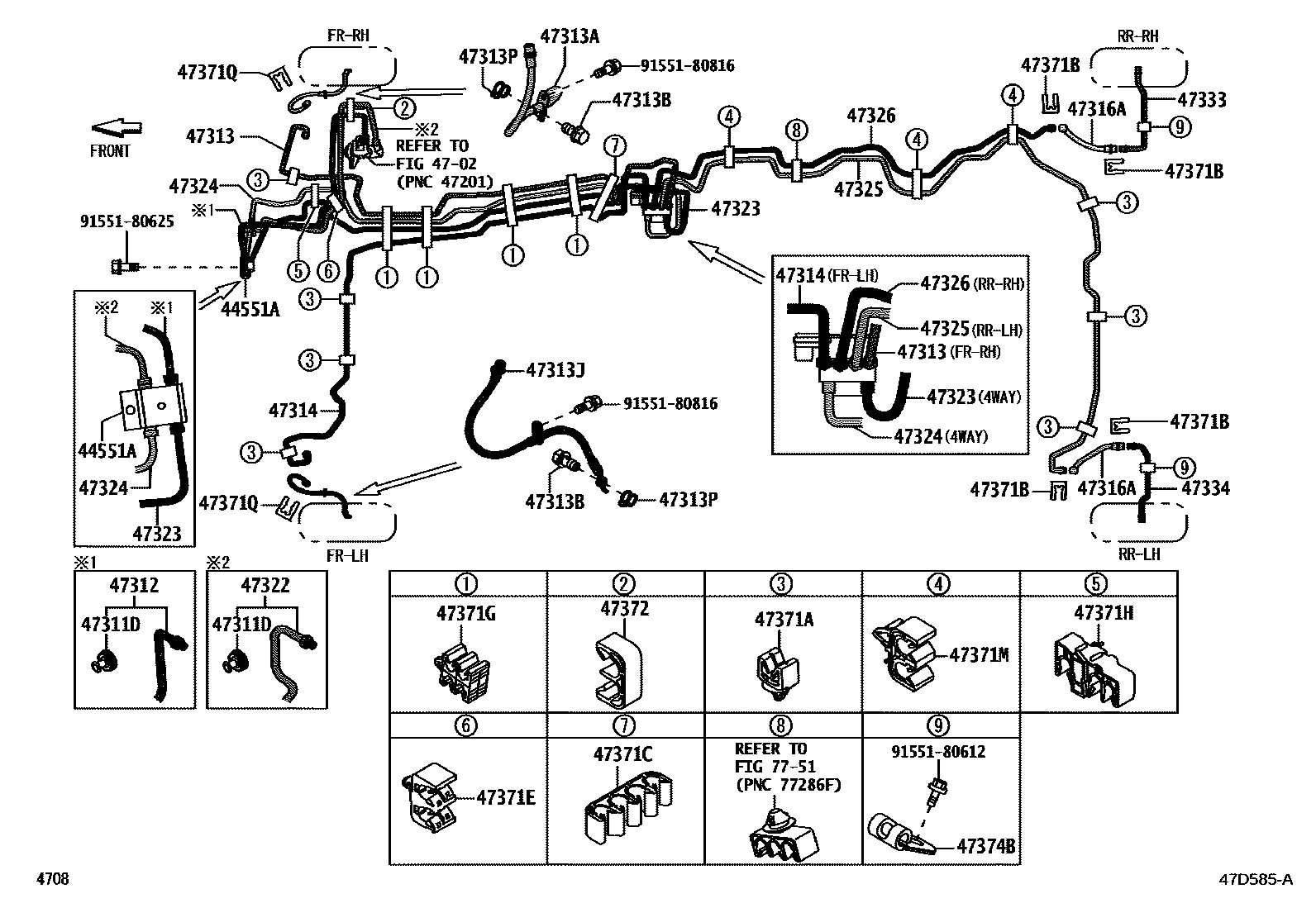

BRAKE TUBE & CLAMP

0001 1 0002 1�������

44551AWAY, NO.1(FOR BRAKE ACTUATOR)

main44589-B5030iS700,710202112

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90044-80674×2iS700,710202112

47312TUBE, FRONT BRAKE, NO.2

main47312-B5070iS700,710202112

47313TUBE, FRONT BRAKE, NO.3

main47313-B5100iS700,710202112

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90049-22329iS700,710202112

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iS700,710202112

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90049-22330iS700,710202112

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iS700,710202112

47314TUBE, FRONT BRAKE, NO.4

main47314-B5080iS700,710202112

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90049-22331×2iS700,710202112

47322TUBE, REAR BRAKE, NO.2

main47322-B5060iS700,710202112

47323TUBE, REAR BRAKE, NO.3

main47323-B5080iS700,710202112

47324TUBE, REAR BRAKE, NO.4

main47324-B5090iS700,710202112

47325TUBE, REAR BRAKE, NO.5

main47325-B5040iS700,710202112

47326TUBE, REAR BRAKE, NO.6

main47326-B5040iS700,710202112

47333TUBE, REAR BRAKE, NO.12

main47333-B5110iS700,710202112

47334TUBE, REAR BRAKE, NO.13

main47334-B5140iS700,710202112

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01D29×7iS700,710202112

47371BCLAMP, BRAKE TUBE, NO.6

main90044-65441×4iS700,710202112

47371CCLAMP, BRAKE TUBE, NO.7

main47372-B5020iS700,710202112

47371ECLAMP, BRAKE TUBE, NO.9

main90044-64911iS700,710202112

47371GCLAMP, BRAKE TUBE, NO.11

main47371-B5030×4iS700,710202112

47371HCLAMP, BRAKE TUBE, NO.12

main90044-64892iS700,710202112

47371MCLAMP, BRAKE TUBE, NO.13

main77286-B5030×3iS700,710202112

47371QCLAMP, BRAKE TUBE, NO.15

main90044-65441×2iS700,710202112

47372CLAMP, BRAKE TUBE, NO.2

main47371-B5050iS700,710202112

47374BCLAMP, BRAKE TUBE, NO.4

main96221-30705×2iS700,710202112

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9155180612

main91551-80612

9155180625

main91551-80625

9155180816

main91551-80816

32 parts on this diagram · 2 diagrams in section
