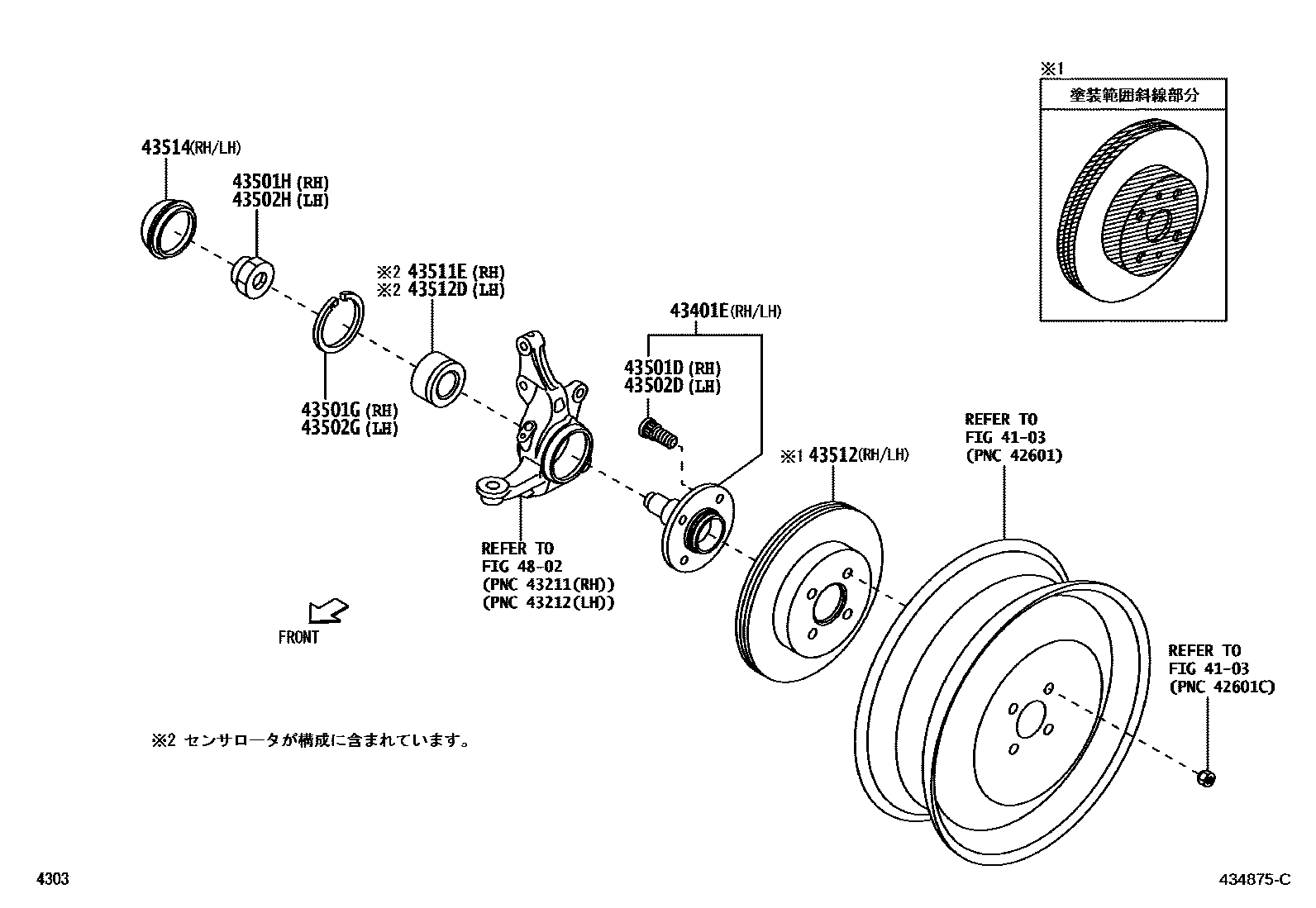

FRONT AXLE HUB

0001 12WD 0002 14WD

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

43401ESPINDLE SUB-ASSY, STEERING

main43401-97501×2iS700202112

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12056×4iS700,710202112

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21111iS700,710202112

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90041-78071iS700202112

main90041-79274iS710202112

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12056×4iS700,710202112

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21111iS700,710202112

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90041-78071iS700202112

main90041-79274iS710202112

43511EBEARING (FOR FRONT AXLE HUB RH)

main43560-B6011iS700,710202112

43512DISC, FRONT

main43512-B5050×2iS700,710202112

43512DBEARING (FOR FRONT AXLE HUB LH)

main43560-B6011iS700,710202112

43514CAP, FRONT HUB GREASE

main43514-97501×2iS700202112

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

13 parts on this diagram · 2 diagrams in section
