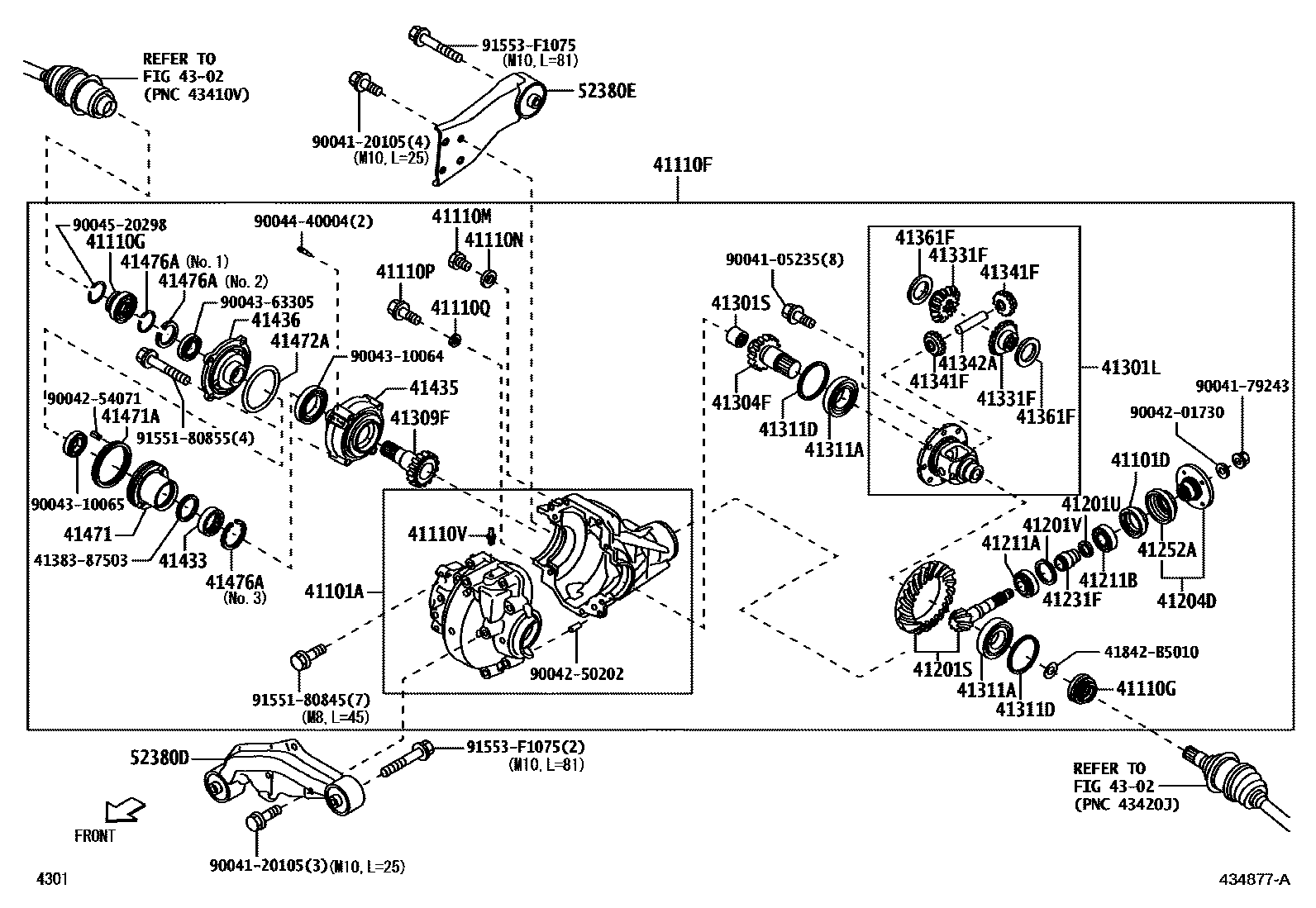

FRONT AXLE HOUSING & DIFFERENTIAL

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-B5080iS710202112

41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)

main90043-11399iS710202112

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-B5250iS710..5F202112-202406

main41110-B5251iS710..5F202407

main41110-B5260iS710..CVT..NTBO202112-202406

main41110-B5261iS710..CVT..NTBO202407

main41110-B5270iS710..TBO202112-202406

main41110-B5271iS710..TBO202407

41110GSEAL, OIL (FOR DIFFERENTIAL SIDE)

main90043-11400×2iS710202112

41110MPLUG, FRONT DIFFERENTIAL FILLER

main90043-41035iS710202112

41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG

main90044-30178iS710202112

41110PPLUG, FRONT DIFFERENTIAL DRAIN

main90041-05210iS710202112

41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG

main90044-30026iS710202112

41110VUNION (FOR FRONT DIFFERENTIAL)

main90044-04146iS710202112

41201SFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-B5060iS710..5F202112

main41201-B5100iS710..TBO202112

main41201-B5110iS710..CVT..NTBO202112

41201USHIM (FOR FRONT DIFF DRIVE PINION SPACER FRONT ADJUST)

main90045-64533iS710202112

main90045-64534iS710202112

main90045-64535iS710202112

main90045-64536iS710202112

main90045-64537iS710202112

main90045-64538iS710202112

main90045-64539iS710202112

main90045-64540iS710202112

main90045-64541iS710202112

main90045-64542iS710202112

main90045-64543iS710202112

main90045-64544iS710202112

main90045-64545iS710202112

main90045-64546iS710202112

main90045-64547iS710202112

main90045-64548iS710202112

main90045-64549iS710202112

41201VSHIM (FOR FRONT DIFF DRIVE PINION SPACER REAR ADJUST)

main90045-64318iS710202112

main90045-64319iS710202112

main90045-64320iS710202112

main90045-64321iS710202112

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-87514iS710202112

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90043-66036iS710202112

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90043-66012iS710202112

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-B5010iS710202112

41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)

main41252-87504iS710202112

41301LCASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1

main41301-B5060iS710..5F202112

main41301-B5070iS710..CVT..NTBO202112

main41301-B5080iS710..TBO202112

41301SBEARING, NEEDLE ROLLER

main90043-64141iS710202112

41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

main41333-B5020iS710202112

41309FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH

main41337-B5010iS710202112

41311ABEARING (FOR FRONT DIFFERENTIAL CASE)

main90043-63228×2iS710202112

41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)

main90045-64598iS710202112

main90045-64599iS710202112

main90045-64600iS710202112

main90045-64601iS710202112

main90045-64602iS710202112

main90045-64603iS710202112

main90045-64604iS710202112

main90045-64605iS710202112

main90045-64606iS710202112

main90045-64607iS710202112

main90045-64608iS710202112

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-B1010×2iS710202112

41341FPINION, FRONT DIFFERENTIAL

main41341-87101×2iS710202112

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main41342-B5010iS710202112

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-87501×2iS710202112

main41361-87506×2iS710202112

main41361-87507×2iS710202112

41433SLEEVE, DIFFERENTIAL CLUTCH

main41433-B5010iS710202112

41435CASE, DIFFERENTIAL CLUTCH

main41435-B5010iS710202112

41436COVER, FRONT DIFFERENTIAL CLUTCH CASE

main41436-B5010iS710202112-202502

41471PISTON, DIFFERENTIAL LOCK CLUTCH, NO.1

main41471-B5010iS710202112

41471ARING, O (FOR DIFFERENTIAL LOCK CLUTCH PISTON NO.1)

main90043-01242iS710202112

41472ARING, O (FOR DIFFERENTIAL LOCK CLUTCH PISTON NO.2)

main90043-01244iS710202112

41476ARING, HOLE SNAP (FOR DIFFERENTIAL LOCK CLUTCH FLANGE)

main90045-21154iS710202112

main96150-02500iS710202112

main96151-04700iS710202112

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

52380DSUPPORT ASSY, FRONT DIFFERENTIAL

main51205-B5050iS710202112

52380ESUPPORT ASSY, DIFFERENTIAL

main51205-B5080iS710202112

4138387503WASHER, CLUTCH MEMBER THRUST

main41383-87503

41842B5010

main41842-B5010

9004105235

main90041-05235

9004120105

main90041-20105

9004179243

main90041-79243

9004201730

main90042-01730

9004250202

main90042-50202

9004254071

main90042-54071

9004310064

main90043-10064

9004310065

main90043-10065

9004363305

main90043-63305

9004440004

main90044-40004

9004520298

main90045-20298

9155180845

main91551-80845

9155180855

main91551-80855

91553F1075

main91553-F1075

53 parts on this diagram · 1 diagram in section
