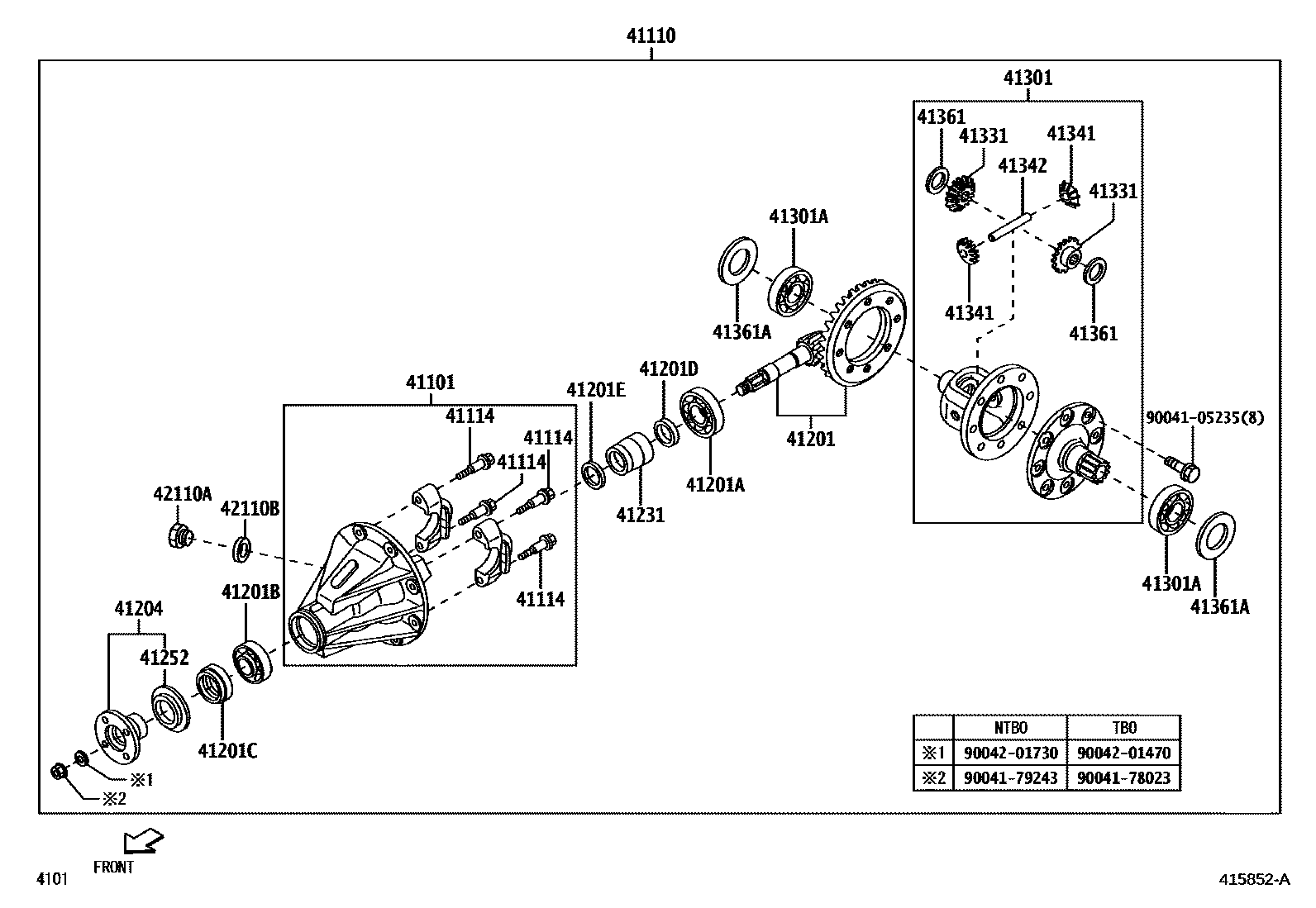

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41110CARRIER ASSY, DIFFERENTIAL, REAR
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301CASE SUB-ASSY, REAR DIFFERENTIAL
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41331GEAR, REAR DIFFERENTIAL SIDE
41341PINION, REAR DIFFERENTIAL
41342SHAFT, REAR DIFFERENTIAL PINION
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361ASHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST)
42110HOUSING ASSY, REAR AXLE
42110APLUG (FOR REAR AXLE HOUSING FILLER)
42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)
9004105235
main90041-05235
9004178023
main90041-78023
9004179243
main90041-79243
9004201470
main90042-01470
9004201730
main90042-01730
27 parts on this diagram · 2 diagrams in section
