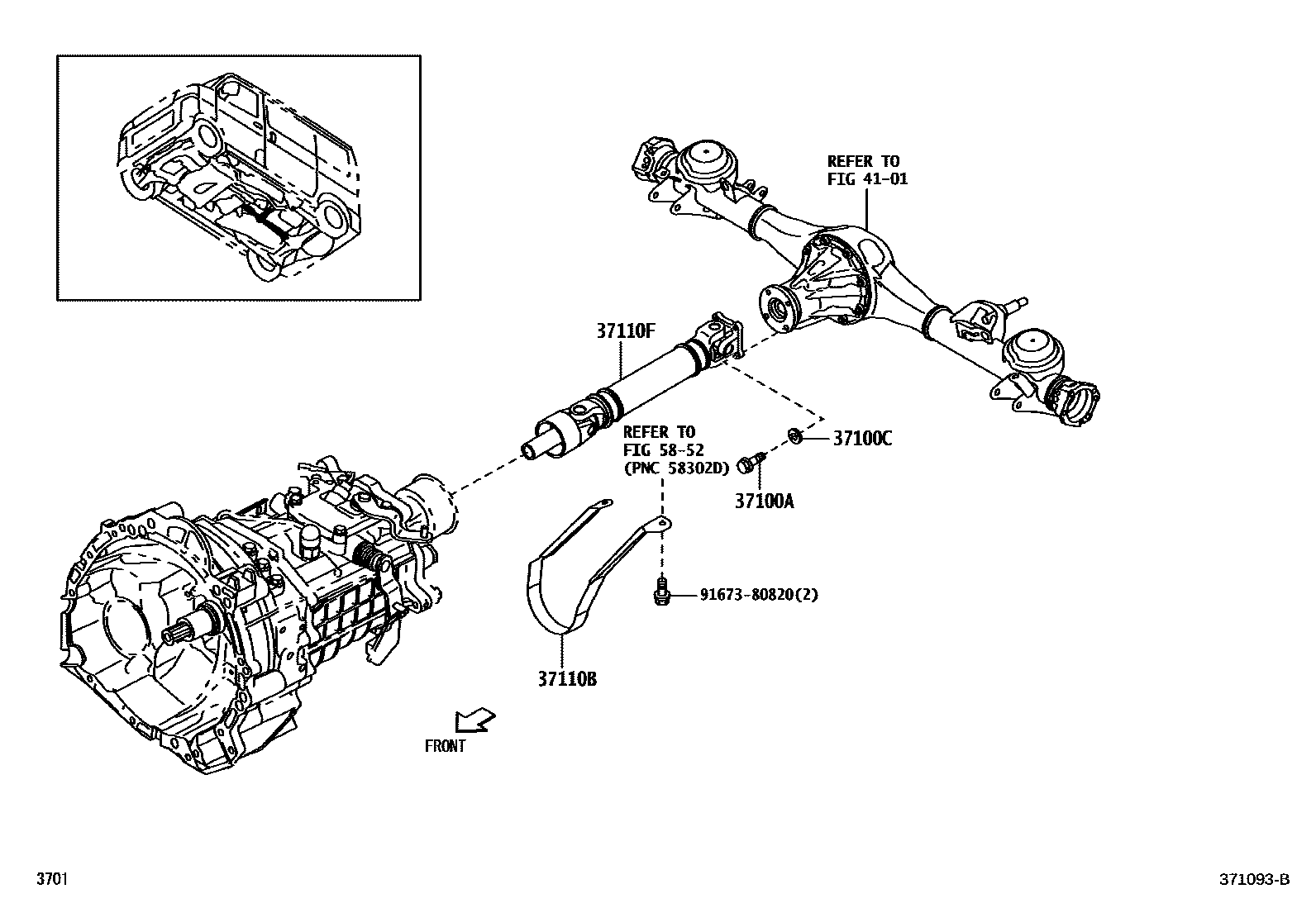

PROPELLER SHAFT & UNIVERSAL JOINT

0001 12WD 0002 14WD

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-B5011iS710..5F202112

main37100-B5031iS710..CVT202112

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90041-01494iS700,710202112

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main94512-01000iS700,710202112

37110BGUARD, PROPELLER SHAFT

main51569-B5020iS700,710202112

37110FSHAFT ASSY, PROPELLER, REAR

main37110-B5040iS700..5F202112

main37110-B5050iS710..5F202112

main37110-B5150iS700..TBO202112

main37110-B5160iS710..TBO202112

main37110-B5190iS700..CVT..NTBO202112

main37110-B5200iS710..CVT..NTBO202112

4101REAR AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 41-01

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

9167380820

main91673-80820

8 parts on this diagram · 2 diagrams in section
