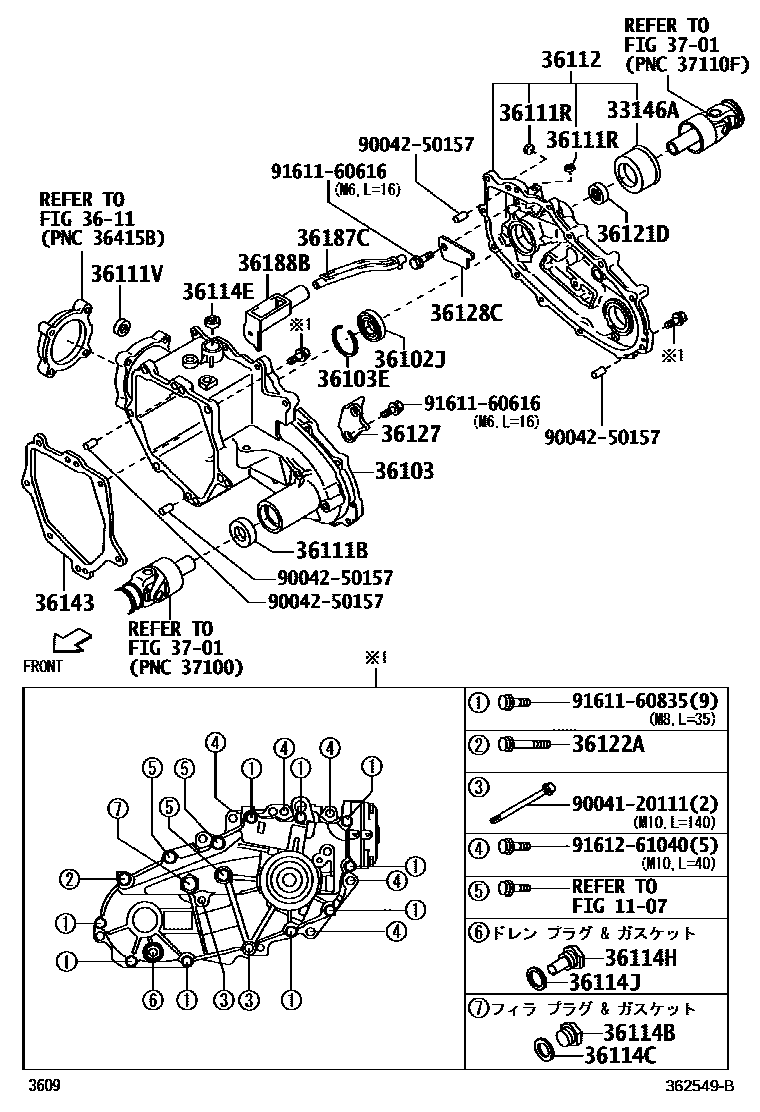

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1

1107MOUNTING

→ Go to FIG 11-07

33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST

main33146-B5010iS710..5F202112

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main88364-87501iS710..5F202112

36103CASE SUB-ASSY, TRANSFER

main36103-B5010iS710..5F202112

main36103-B5080iS710..CVT202112

36103ERING, HOLE SNAP (FOR TRANSFER CASE BEARING)

main90045-21156iS710..5F202112

3611TRANSFER LEVER & SHIFT ROD

→ Go to FIG 36-11

36111BSEAL, OIL (FOR TRANSFER CASE)

main90043-11320iS710..5F202112

main90043-11444iS710..CVT202112

36111RPLUG, TIGHT (FOR TRANSFER CASE)

main90043-31029iS710..5F202112

36111VSEAL, OIL(FOR TRANSFER CASE DRIVE SHAFT SIDE)

main90043-11362iS710..5F202112

36112CASE, TRANSFER, REAR

main36104-B5050iS710..CVT202112

main36104-B5061iS710..5F202112

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90043-41052iS710202311

main90341-16012iS710202112-202310

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90044-30178iS710202112

36114ESEAL, OIL (FOR TRANSFER CASE LH)

main90043-13008iS710..5F202112

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90043-41052iS710..CVT202311

main90043-41068iS710..5F202112

main90341-16012iS710..CVT202112-202310

36114JGASKET, NO.2 (FOR TRANSFER CASE)

main90044-30055iS710..5F202112

main90044-30178iS710..CVT202112

36121DSEAL, OIL(FOR TRANSFER CASE COVER)

main90043-11309iS710..5F202112

main90043-11320iS710..CVT202112-202209

36122ABOLT (FOR TRANSFER CASE)COVER NO.2

main91612-61065iS710..5F202112

36127PLATE, TRANSFER OIL

main36127-87506iS710..5F202112

36128DEFLECTOR, BREATHER OIL

main36128-B5010iS710..CVT202112

36128CPLATE, TRANSFER OIL SUPPLY

main36128-87503iS710..5F202112

main36129-B5010iS710..CVT202112

36143GASKET, TRANSFER CASE, FRONT

main33142-B5010iS710..5F202112

36187CPIPE, TRANSFER OIL SUPPLY, RH

main36187-B5010iS710..5F202112

36188BPIPE, TRANSFER OIL SUPPLY, LH

main36188-B5010iS710..5F202112

3701PROPELLER SHAFT & UNIVERSAL JOINT

→ Go to FIG 37-01

9004120111

main90041-20111

9004250157

main90042-50157

9161160616

main91611-60616

9161160835

main91611-60835

9161261040

main91612-61040

29 parts on this diagram · 2 diagrams in section
