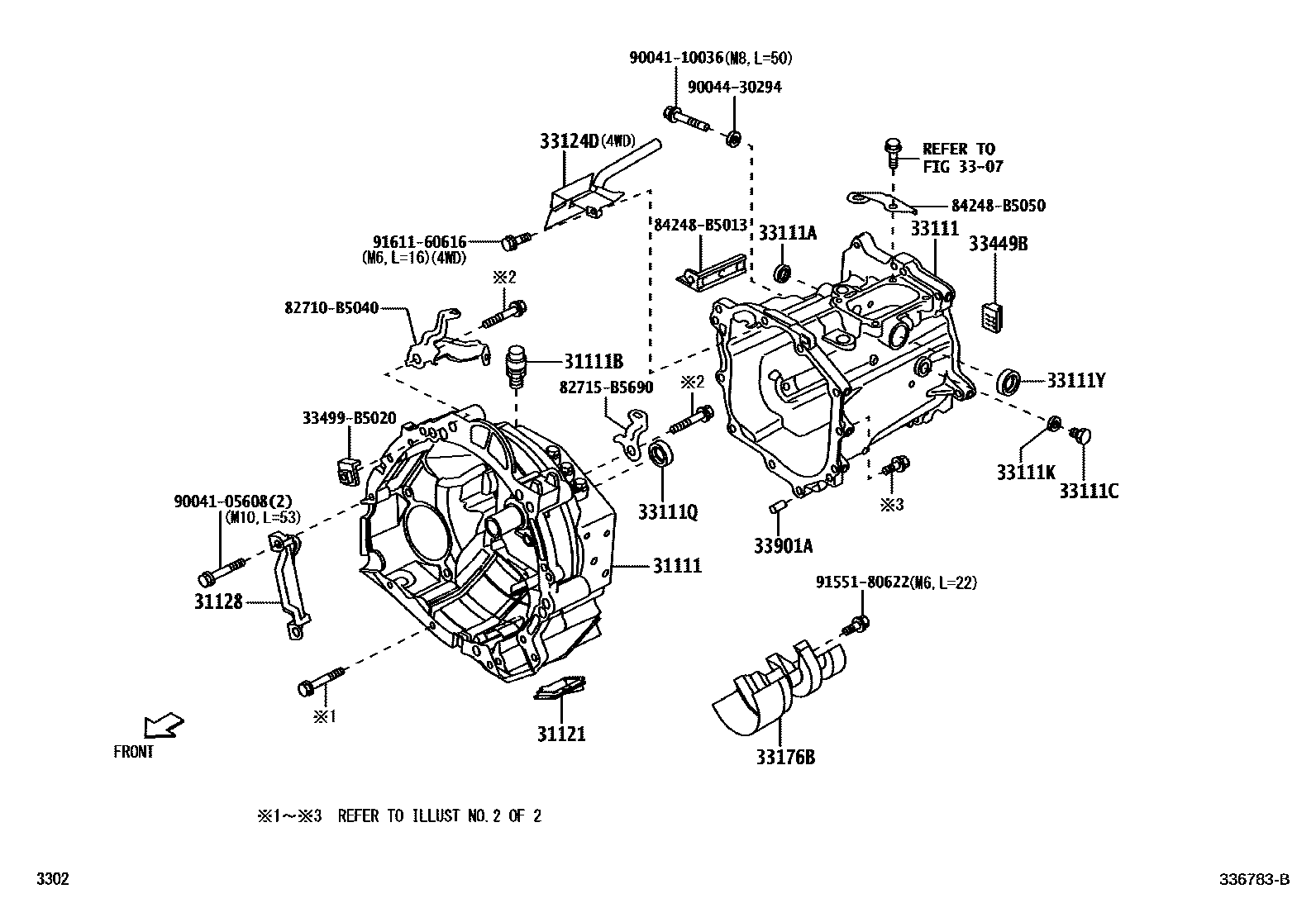

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1������� 0002 1��������

31111HOUSING, CLUTCH

main31111-B5030iS700,710..5F202112

31111BPLUG(FOR CLUTCH HOUSING)

main90049-15026iS700,710..5F202112

31121COVER, CLUTCH HOUSING, NO.1

main31121-B5020iS700,710..5F202112

31128COVER, CLUTCH HOUSING UNDER

main31128-B5030iS700,710..5F202112

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33111CASE, MANUAL TRANSMISSION

main33111-B5021iS700,710..5F202112

33111APLUG, MANUAL TRANSMISSION CASE

main90043-31025iS700,710..5F202112

33111CPLUG(FOR TRANSMISSION CASE)

main90043-41085iS700,710..5F202112

33111KGASKET(FOR TRANSMISSION CASE)

main90044-30186iS700,710..5F202112

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90043-10051iS700,710..5F202112

33111YSEAL, OIL(FOR TRANSMISSION CASE)

main90043-11308iS700,710..5F202112

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-B5020iS710..5F202112

33176BSEPARATOR, TRANSMISSION OIL(MTM)

main33176-B5010iS700,710..5F202112

33449BMAGNET, TRANSMISSION

main33449-87501iS700,710..5F202112

33901APIN, STRAIGHT(FOR ADAPTER CASE)

main90042-50157×2iS700,710..5F202112

33499B5020

main33499-B5020

82710B5040HARNESS ASSY, OIL HEATER

main82710-B5040

82715B5690BRACKET,WIRING HARNESS CLAMP

main82715-B5690

84248B5013CLAMP, CENTER CLUSTER MODULE SWITCH HARNESS

main84248-B5013

84248B5050CLAMP, CENTER CLUSTER MODULE SWITCH HARNESS

main84248-B5050

9004105608

main90041-05608

9004110036

main90041-10036

9004430294

main90044-30294

9155180622

main91551-80622

9161160616

main91611-60616

25 parts on this diagram · 2 diagrams in section
