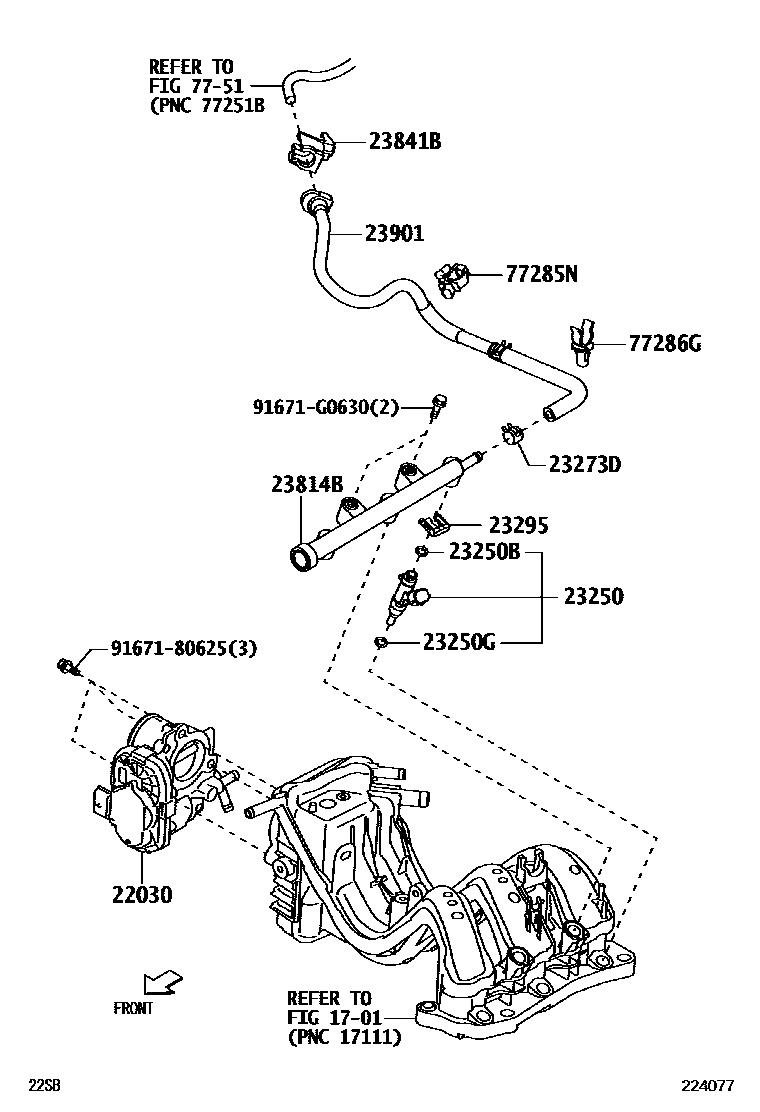

FUEL INJECTION SYSTEM

1701MANIFOLD

→ Go to FIG 17-01

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-B2070iKFV#..S700,710202112

23250INJECTOR ASSY, FUEL

main23250-B2020×3iKFVET..S700,710202112

main23250-B2050×3iKFVE..S700,710202112

23250BRING, O(FOR FUEL INJECTOR)

main90043-01349×3iKFV#..S700,710202112

23250GRING, O, NO.2(FOR FUEL INJECTOR)

main90043-01348×3iKFV#..S700,710202112

23273DCLIP(FOR FUEL HOSE NO.2)

main90044-67400iKFV#..S700,710202112

23295HOLDER, INJECTOR, NO.1

main23295-B2020×3iKFV#..S700,710202112

23814BPIPE, FUEL DELIVERY

main23814-B2040iKFV#..S700,710202112

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-B5030iKFV#..S700,710202112

23901TUBE SUB-ASSY, FUEL

main23901-B5030iKFV#..S700,710202112

77285NCLAMP, FUEL TUBE, NO.1

main90044-64937iS700,710202112

77286GCLAMP, FUEL TUBE, NO.2

main90044-64940iS700,710202112

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9167180625

main91671-80625

91671G0630

main91671-G0630

15 parts on this diagram · 1 diagram in section
