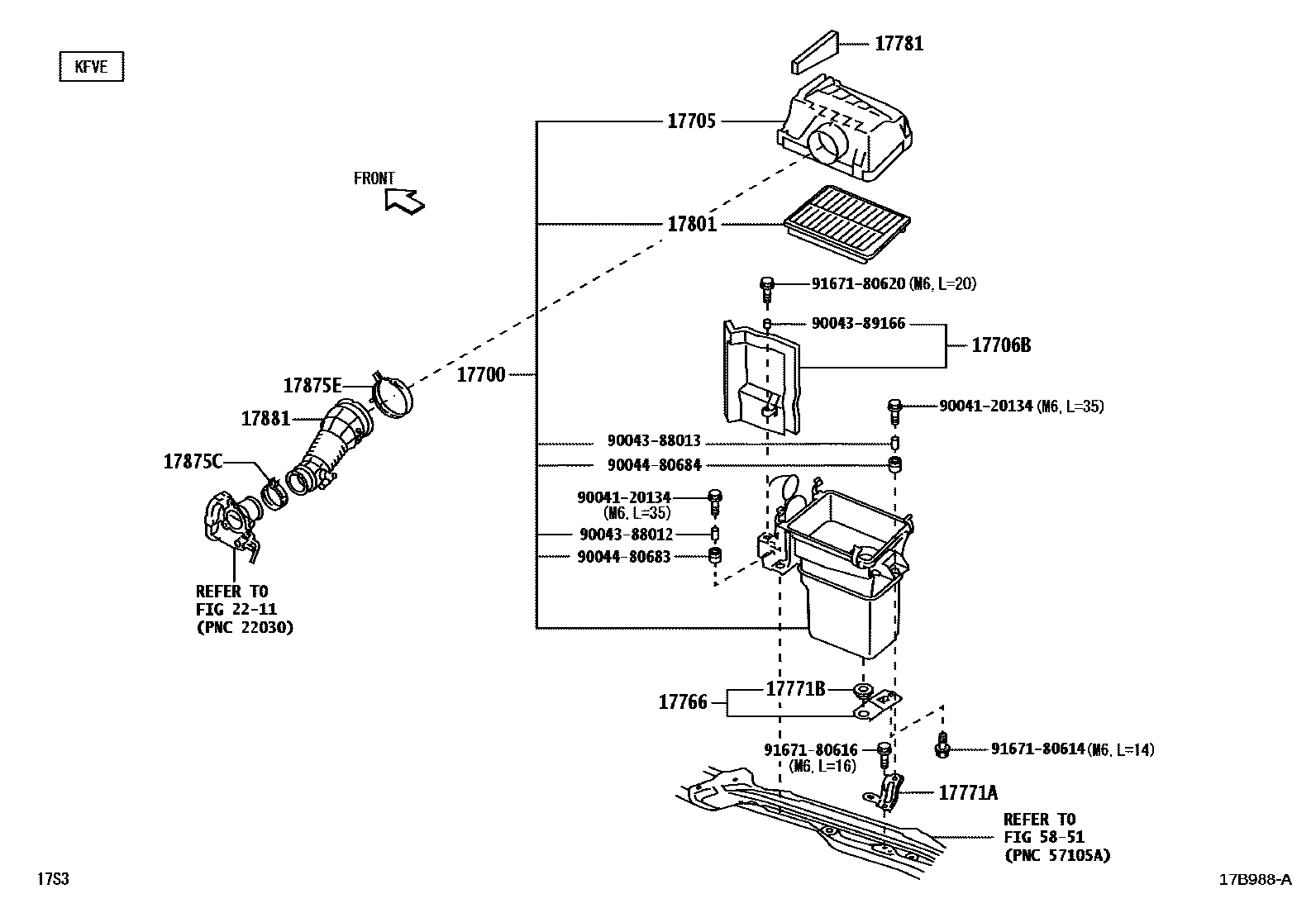

AIR CLEANER

0001 1�� ���� 0002 1�� ���� 0003 1�������

17700CLEANER ASSY, AIR

main17700-B5060iKFVE..S700,710202112

main17700-B5120iKFVET..S700,710202112

17705CAP SUB-ASSY, AIR CLEANER

main17705-B5110iKFV#..S700,710202112

17706BRETAINER, AIR CLEANER INLET PIPE

main17799-B5030iKFV#..S700,710202112

17766STAY, AIR CLEANER, NO.2

main17766-B5020iKFV#..S700,710202112

17771ABRACKET, AIR CLEANER

main17771-B5030iKFV#..S700,710202112

17771BGROMMET(FOR AIR CLEANER BRACKET)

main90044-80598iKFV#..S700,710202112

17781SEAL, AIR CLEANER INLET

main17781-B5020iKFV#..S700,710202112

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-B5060iKFV#..S700,710202112

17875CCLIP(FOR HOSE, NO.1)

main90044-67613iKFVE..S700,710202112

main90044-68385iKFVET..S700,710202112

17875ECLIP(FOR HOSE, NO.2)

main90466-71001iKFV#..S700,710202112

17881HOSE, AIR CLEANER, NO.1

main17881-B5050iKFVE..S700,710202112

main17881-B5060iKFVET..S700,710202112

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

9004120134

main90041-20134

9004388012

main90043-88012

9004388013

main90043-88013

9004389166

main90043-89166

9004480683

main90044-80683

9004480684

main90044-80684

9167180614

main91671-80614

9167180616

main91671-80616

9167180620

main91671-80620

22 parts on this diagram · 3 diagrams in section
