Toyota PIXIS VAN — MOUNTING

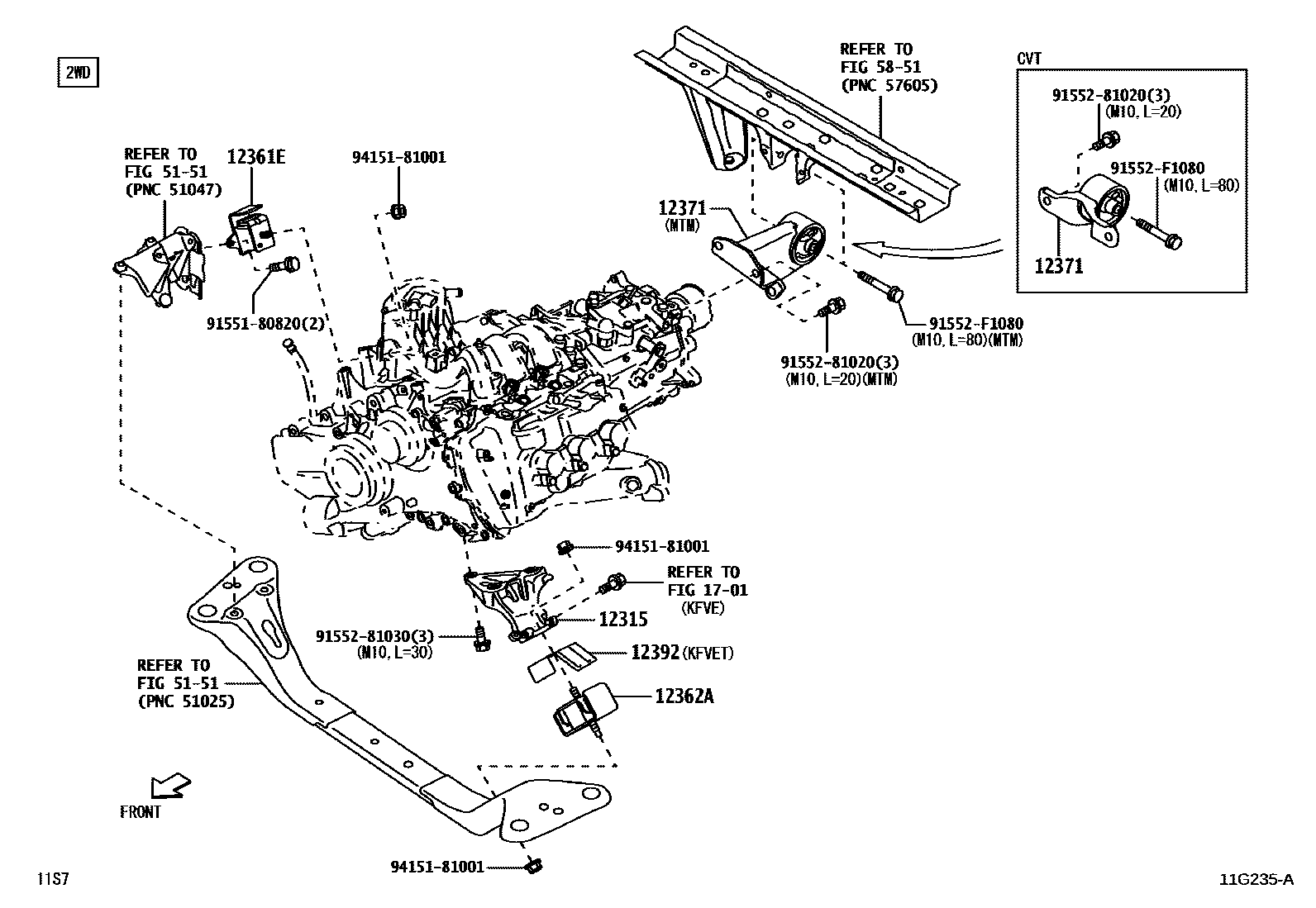

Parts diagram

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

12361EINSULATOR, ENGINE MOUNTING, FRONT RH

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

12392INSULATOR, ENGINE MOUNTING HEAT, FRONT LH

1701MANIFOLD

→ Go to FIG 17-01

5151FRAME

→ Go to FIG 51-51

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

9155180820

9155281020

9155281030

91552F1080

9415181001

13 parts on this diagram · 2 diagrams in section

MOUNTING for Toyota PIXIS VAN

This section contains 18 genuine Toyota parts for the MOUNTING system of the Toyota PIXIS VAN. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, BRACKET, ENGINE MOUNTING, REAR, NO.1, INSULATOR, ENGINE MOUNTING, FRONT RH, INSULATOR, ENGINE MOUNTING, FRONT LH, INSULATOR, ENGINE MOUNTING, REAR NO.1.
