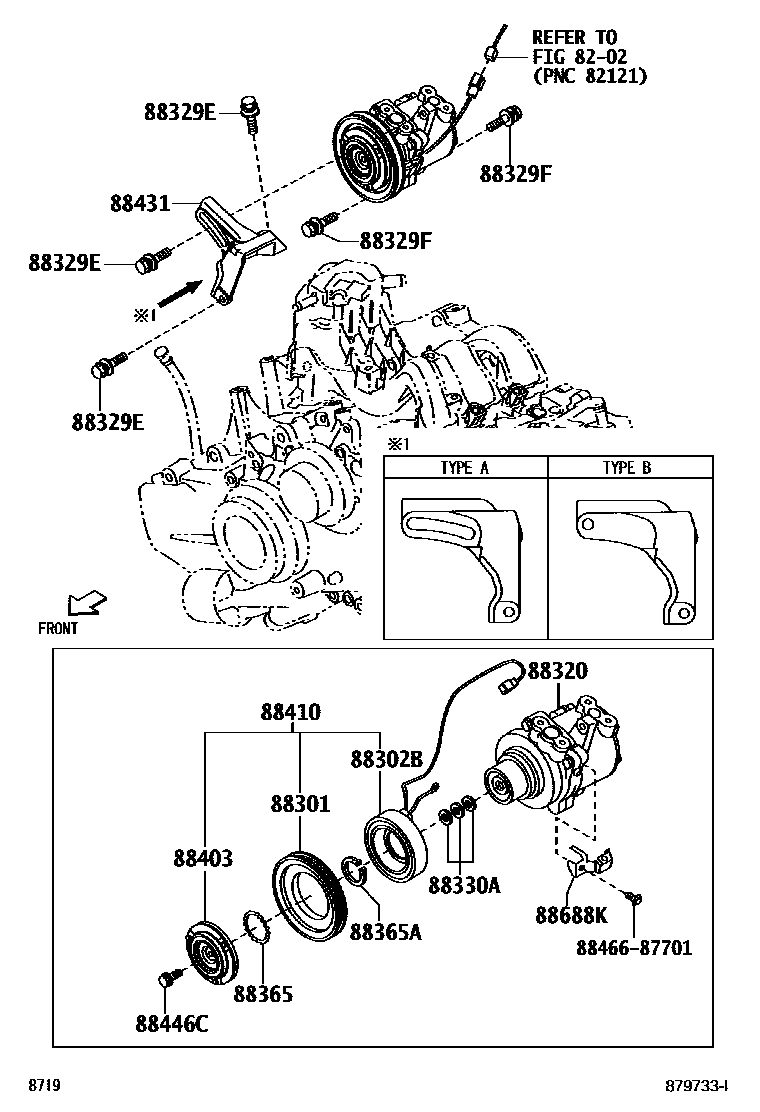

HEATING & AIR CONDITIONING - COMPRESSOR

8202WIRING & CLAMP

→ Go to FIG 82-02

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-B5010iS321,331201711

88302BSTATOR, MAGNET CLUTCH

main88411-87264iS321,331..PS1201112-201504

88320COMPRESSOR ASSY, COOLER

main88320-B5010iS321,331..PS1201112-201504

main88320-B5040iS321,331201711

88329EBOLT, COMPRESSOR, NO.1

main91671-80825×3iS321,331..PS1201112-201504

88329FBOLT, COMPRESSOR, NO.2

main91641-80835×2iS321,331..PS2201112-201510

main91671-80835×2iS321,331201511-201711

88330AWASHER (FOR MAGNET CLUTCH)

main88318-87704iS321,331..PS1201112-201504

main88318-87705iS321,331..PS1201112-201504

main88318-87706iS321,331..PS1201112-201504

main88335-14020iS321,331201504-201711

88365RING, SNAP

main90099-07125iS321,331201711

88365ARING, SNAP (FOR COMPRESSOR)

main88365-87201iS321,331..PS1201112-201504

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-97201iS321,331..PS2201112-201711

88410CLUTCH ASSY, MAGNET

main88410-B5010iS321,331201711

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-B5030iS321,331..PS1201112-201504

main88431-B5080iS321,331201711

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iS321,331201711

88688KBRACKET, COOLER COMPRESSOR

main88688-B5010iS321,331201711

8846687701

main88466-87701

15 parts on this diagram · 1 diagram in section
