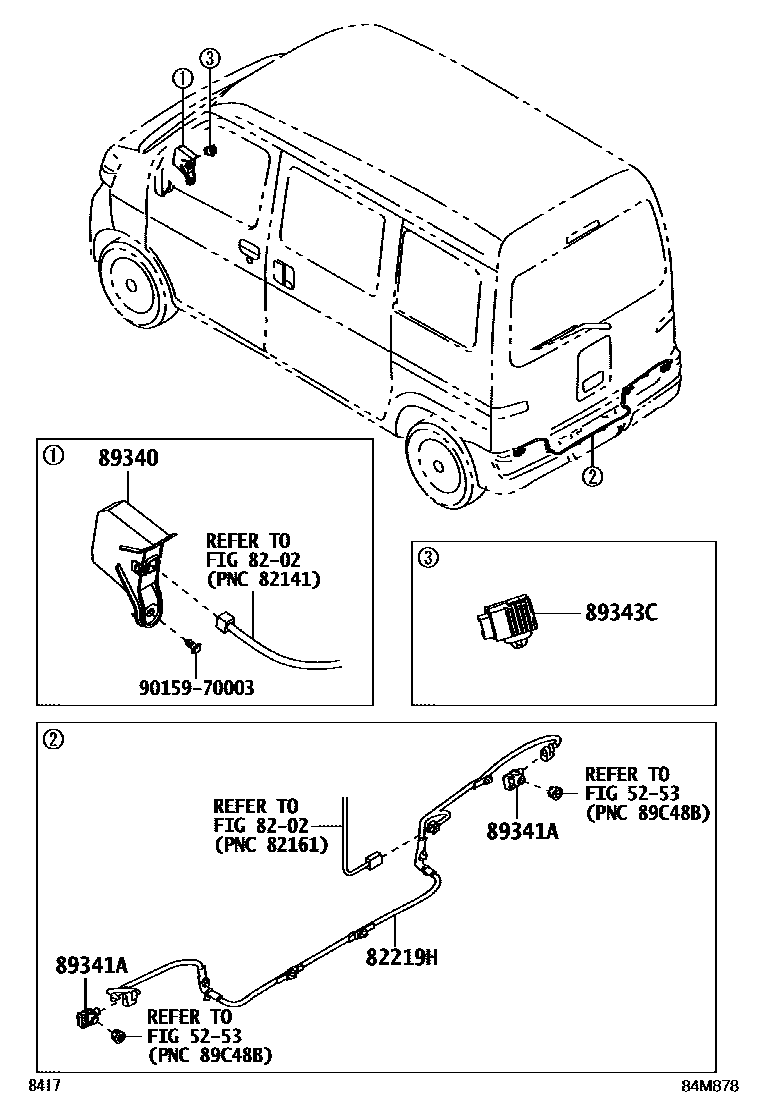

CLEARANCE & BACK SONAR

5253REAR BUMPER & BUMPER STAY

→ Go to FIG 52-53

8202WIRING & CLAMP

→ Go to FIG 82-02

82219HWIRE, SENSOR

main00000-00000supersedes 82219-B5030iS321,331..4FC;S321,331..5F..(PS4,PS5,PS6)201711

main82219-B5030iS321,331..4FC;S321,331..5F..(PS4,PS5,PS6)201711-202112

89340COMPUTER ASSY, REAR CLEARANCE WARNING

main89340-B5010iS321,331..4FC201711

main89340-B5020iS321,331..5F201812

mainGAITONASHIiS321,331..4FC..PS3201711

89341ASENSOR, ULTRASONIC, NO.1

main89341-B2020-A0×2iS321,331..4FC;S321,331..5F..(PS4,PS5,PS6)201711

WHITE,W19

main89341-B2020-A1×2iS321,331..4FC..CR;S321,331..5F..CR..(PS4,PS5,PS6)201711

WHITE PEARL MC.CS,W24

main89341-B2020-B0×2iS321,331..4FC;S321,331..5F..(PS4,PS5,PS6)201711

SILVER ME.,S28

main89341-B2020-C0×2iS321,331..4FC..(CR,DLX);S321,331..5F..(CR,DLX)..(PS4,PS5,PS6)201711

BLACK M.M.,X07

main89341-B2020-E1×2iS321,331..4FC..(CR,DLX);S321,331..5F..(CR,DLX)..(PS4,PS5,PS6)201711

LT.ROSE M.M.,T22

main89341-B2020-G5×2iS321,331..4FC..(CR,DLX);S321,331..5F..(CR,DLX)..(PS4,PS5,PS6)201711

MINT ME.,G59

main89341-B2020-J5×2iS321,331..4FC..(CR,DLX);S321,331..5F..(CR,DLX)..(PS4,PS5,PS6)201711

PALE BLUE M.M.,B69

main00000-00000iS321,331..4FC;S321,331..5F..(PS4,PS5,PS6)201711

89343CBUZZER, CLEARANCE WARNING, NO.1

main00000-00000supersedes 89343-48010iS321,331..4FC;S321,331..5F..(PS4,PS5,PS6)201711

main89343-48010iS321,331..4FC;S321,331..5F..(PS4,PS5,PS6)201711-202112

9015970003

main90159-70003

7 parts on this diagram · 1 diagram in section
