METER

0001 1 0002 1 0003 1

8202WIRING & CLAMP

→ Go to FIG 82-02

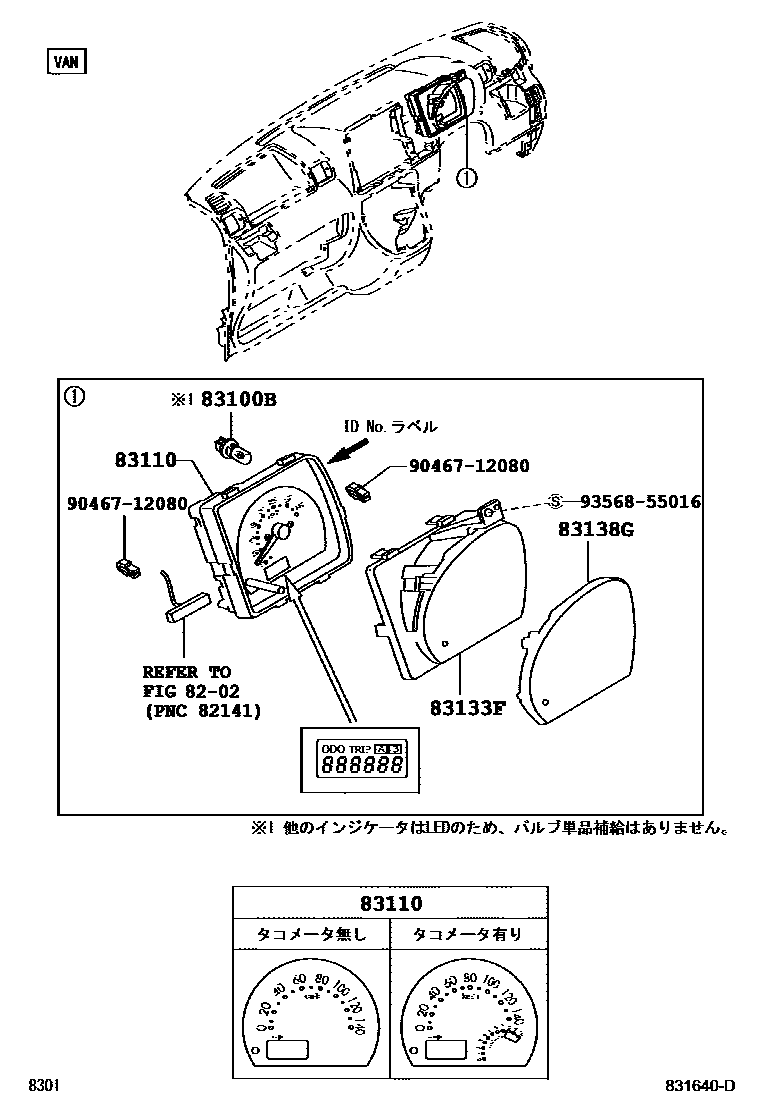

83100METER ASSY, COMBINATION

main83800-B5750iS321,331..5F201711-201811

main83800-B5751supersedes 83800-B5850iS321,331..5F201812-202009

main83800-B5760supersedes 83800-B5780iS321,331..4FC201711-201811

main83800-B5761supersedes 83800-B5781iS321,331..4FC201812-202009

main83800-B5A10supersedes 83800-B5A70iS321,331..5F202009

main83800-B5A20supersedes 83800-B5A40iS321,331..4FC202009

main83800-B5A80supersedes 83800-B5A70iS321,331..5F202009

main83800-B5A90supersedes 83800-B5A40iS321,331..4FC202009

83100BBULB, COMBINATION METER, NO.1

main83119-97505iS321,331..PS1201112-201504

83110SPEEDOMETER ASSY

main83220-B5840iS321..5F..(DLX,SPL)..PS1201112-201504

main83220-B5850iS331..5F..(DLX,SPL)..PS2201112-201511

main83220-B5860iS321,331..5F..(DLX,SPL)..PS2; S321,331..5F..CR..NTBO..PS2201112-201511

main83220-B5870iS321..4FC..(DLX,SPL)201112-201503

main83220-B5880iS331..4FC..(DLX,SPL)201112-201503

main83220-B5890iS321,331..4FC..(DLX,SPL); S321,331..4FC..CR..NTBO201112-201503

main83220-B5A00iS321,331..5F..TBO..PS1201112-201504

main83220-B5A10iS321,331..4FC..TBO201112-201503

main83220-B5C70iS321..4FC..(DLX,SPL)..PS1201503-201504

main83220-B5C80iS331..4FC..(DLX,SPL)..PS1201503-201504

main83220-B5C90iS321,331..4FC..(DLX,SPL)..PS1; S321,331..4FC..CR..NTBO..PS1201503-201504

main83220-B5D00iS321,331..4FC..TBO..PS1201503-201504

main83220-B5D10iS321..5F..(DLX,SPL)201511-201610

main83220-B5D20iS331..5F..(DLX,SPL)201511-201610

main83220-B5D30iS321,331..5F..(DLX,SPL); S321,331..5F..CR..NTBO201511-201610

main83220-B5D40iS321..4FC..(DLX,SPL)201511-201610

main83220-B5D50iS331..4FC..(DLX,SPL)201511-201610

main83220-B5D60iS321,331..4FC..(DLX,SPL); S321,331..4FC..CR..NTBO201511-201610

main83220-B5D70iS321,331..5F..TBO201511-201610

main83220-B5D80iS321,331..4FC..TBO201511-201610

main83220-B5D90iS321..5F..(DLX,SPL)201610-201711

main83220-B5E00iS331..5F..(DLX,SPL)201610-201711

main83220-B5E10iS321,331..5F..(DLX,SPL); S321,331..5F..CR..NTBO201610-201711

main83220-B5E20iS321..4FC..(DLX,SPL)201610-201711

main83220-B5E30iS331..4FC..(DLX,SPL)201610-201711

main83220-B5E40iS321,331..4FC..(DLX,SPL); S321,331..4FC..CR..NTBO201610-201711

main83220-B5E50iS321,331..5F..TBO201610-201711

main83220-B5E60iS321,331..4FC..TBO201610-201711

83133FPLATE, METER

main83133-97509iS321,331..PS2201112-201711

83138GGLASS, COMBINATION METER

main83852-97503iS321,331..PS1201112-201504

main83852-B5750supersedes 83852-B1D30iS321,331..5F201711-201812

9046712080

main90467-12080

9356855016

main93568-55016

8 parts on this diagram · 3 diagrams in section
