WIRING & CLAMP

0001 1 0002 1����� & ���������� 0003 1����� & ���������� 0004 1������������ 0005 1��� & ��� 0006 1��� 0007 1����� 0008 1�����&������ 0009 1�����&������ 0010 1�����&������ 0011 1���� 0012 1����� 0013 1����� 0014 1����� 0015 1����� 0016 1������������� 0017 1���&��� 0018 1��� 0019 1����� 0020 1����

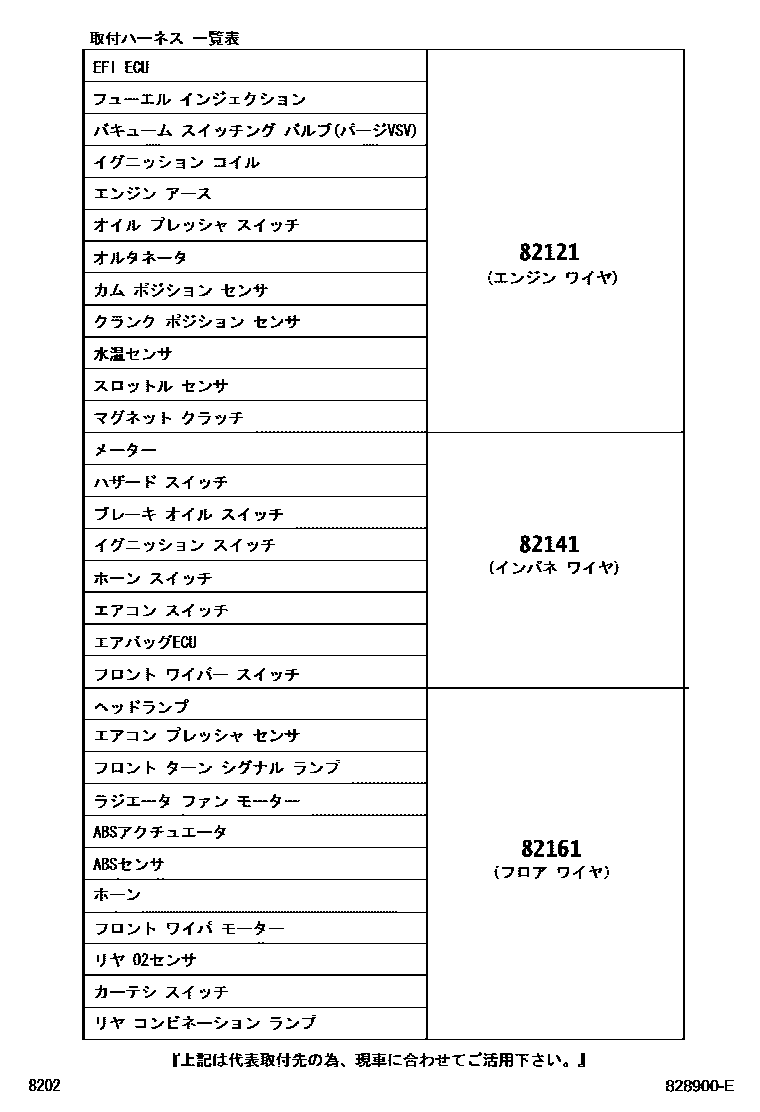

82121WIRE, ENGINE

main82121-B5242iS321,331..TBO201112-201405

main82121-B5290iS321,331..NTBO201112-201405

main82121-B5330iS321,331..NTBO..PS1201405-201504

main82121-B5340iS321,331..TBO..PS1201405-201504

main82121-B5440iS321..5F..NTBO201504-201711

main82121-B5450iS331..5F..NTBO201504-201711

main82121-B5460iS321,331..4FC..NTBO201504-201711

main82121-B5470iS321,331..5F..TBO201504-201711

main82121-B5480iS321,331..4FC..TBO201504-201711

main82121-B5560iS321,331..5F..NTBO201711-202009

main82121-B5561iS321,331..5F..NTBO202009

main82121-B5580iS321,331..4FC..NTBO201711-202009

main82121-B5581iS321,331..4FC..NTBO202009

main82121-B5590iS321,331..5F..TBO201711-202009

main82121-B5591iS321,331..5F..TBO202009

main82121-B5600iS321,331..4FC..TBO201711-202009

main82121-B5601iS321,331..4FC..TBO202009

82141WIRE, INSTRUMENT PANEL

main82141-B5851supersedes 82141-B5E40iS321..5F..SPL; S331..5F..SPL201112-201204

main82141-B5852iS321..5F..SPL; S331..5F..SPL201204-201405

main82141-B5891iS321,331..5F..CR201112-201204

main82141-B5892iS321,331..5F..CR201204-201405

main82141-B5A11supersedes 82141-B5F10iS321..4FC..SPL; S331..4FC..SPL201112-201204

main82141-B5A12supersedes 82141-B5A02iS321..4FC..SPL; S331..4FC..SPL201204-201212

main82141-B5A21iS321,331..4FC..DLX201112-201204

main82141-B5A22iS321,331..4FC..DLX201204-201212

main82141-B5A51supersedes 82141-B5F60iS321..4FC..CR;S331..4FC..CR..NTBO; S331..4FC..TBO201112-201204

main82141-B5A52supersedes 82141-B5A42iS321..4FC..CR;S331..4FC..CR..NTBO; S331..4FC..TBO201204-201212

main82141-B5C50supersedes 82141-B5C40iS321..4FC..SPL; S331..4FC..SPL201212-201405

main82141-B5C70iS321,331..4FC..DLX201212-201405

main82141-B5D00supersedes 82141-B5C90iS321..4FC..CR;S331..4FC..CR..NTBO; S331..4FC..TBO201212-201405

main82141-B5D80iS321,331..5F201711-201808

main82141-B5D81supersedes 82141-B5N40iS321,331..5F201808-201812

main82141-B5E50iS331..5F..SPL..PS1201405-201504

main82141-B5E90iS321,331..5F..DLX..PS1201502-201504

main82141-B5F00iS321,331..5F..CR..PS1201405-201504

main82141-B5F20iS331..4FC..SPL..PS1201405-201504

main82141-B5F40iS321,331..4FC..DLX201405-201502

main82141-B5F50iS321,331..4FC..DLX..PS1201502-201504

main82141-B5F70iS321..4FC..CR..PS1;S331..4FC..CR..NTBO..PS1201405-201504

main82141-B5L20iS321,331..5F..SPL201504-201511

main82141-B5L21iS321,331..5F..SPL201511-201610

main82141-B5L22iS321,331..5F..SPL201610-201711

main82141-B5L50iS321,331..5F..CR..NTBO; S321,331..5F..DLX201504-201511

main82141-B5L51iS321,331..5F..CR..NTBO; S321,331..5F..DLX201511-201610

main82141-B5L52iS321,331..5F..CR..NTBO; S321,331..5F..DLX201610-201711

main82141-B5L60iS321,331..5F..CR201504-201511

main82141-B5L61iS321,331..5F..CR201511-201610

main82141-B5L62iS321,331..5F..CR201610-201711

main82141-B5L80iS321,331..4FC..SPL201504-201511

main82141-B5L81iS321,331..4FC..SPL201511-201610

main82141-B5L82iS321,331..4FC..SPL201610-201711

main82141-B5M00iS321,331..4FC..CR..NTBO; S321,331..4FC..DLX201504-201511

main82141-B5M01iS321,331..4FC..CR..NTBO; S321,331..4FC..DLX201511-201610

main82141-B5M02iS321,331..4FC..CR..NTBO; S321,331..4FC..DLX201610-201711

main82141-B5M20iS321,331..4FC..CR201504-201511

main82141-B5M21iS321,331..4FC..CR201511-201610

main82141-B5M22iS321,331..4FC..CR201610-201711

main82141-B5Q10iS321,331..4FC; S321,331..4FC..DLX; S321,331..HRF..4FC..(DLX,SPL)201711-201808

main82141-B5Q11iS321,331..4FC; S321,331..4FC..DLX; S321,331..HRF..4FC..(DLX,SPL)201808-202009

main82141-B5Q12iS321,331..4FC; S321,331..4FC..DLX; S321,331..HRF..4FC..(DLX,SPL)202009

main82141-B5861supersedes 82141-B5E80iS321,331..5F..DLX201112-201204

main82141-B5862supersedes 82141-B5E80iS321,331..5F..DLX201204-201405

main82141-B5881iS321,331..5F..CR..NTBO201112-201204

main82141-B5882iS321,331..5F..CR..NTBO201204-201405

main82141-B5A31iS321,331..4FC..CR..NTBO201112-201204

main82141-B5A32iS321,331..4FC..CR..NTBO201204-201212

main82141-B5C80iS321,331..4FC..CR..NTBO201212-201405

main82141-B5D82supersedes 82141-B5N41iS321,331..5F..TBO202009

main82141-B5E60supersedes 82141-B5E80iS321,331..5F..DLX201405-201502

main82141-B5L00iS321,331..4FC..(DLX,SPL)201711-201808

main82141-B5L01iS321,331..4FC..(DLX,SPL)201808-202009

main82141-B5L02iS321,331..4FC..(DLX,SPL)202009

main82141-B5V10supersedes 82141-B5V20iS321,331..5F..NTBO202009

82161WIRE, FLOOR

main82161-B5811iS321..5F..(DLX,SPL)201112-201405

main82161-B5821iS331..5F..(DLX,SPL)201112-201405

main82161-B5861supersedes 82161-B5L60iS321..4FC..(DLX,SPL); S331..4FC..(DLX,SPL)201112-201405

main82161-B5871iS321,331..4FC..(DLX,SPL); S321,331..4FC..CR..NTBO; S321..4FC..(DLX,SPL)201112-201405

main82161-B5881iS321,331..5F..TBO201112-201405

main82161-B5B41supersedes 82161-B5M20iS321..4FC..TBO; S331..4FC..TBO201112-201405

main82161-B5K60iS321,331..5F..(DLX,SPL); S321,331..5F..CR..NTBO201112-201203

main82161-B5K61iS321,331..5F..(DLX,SPL); S321,331..5F..CR..NTBO201204-201405

main82161-B5L10iS321..5F..(DLX,SPL)201405-201502

main82161-B5L20iS331..5F..(DLX,SPL)201405-201502

main82161-B5L40supersedes 82161-B5L30iS321,331..5F..(DLX,SPL)..PS1; S321,331..5F..CR..NTBO..PS1201405-201504

main82161-B5L70iS331..4FC..(DLX,SPL)..PS1201405-201504

main82161-B5L90iS321,331..4FC..(DLX,SPL)..PS1; S321,331..4FC..CR..NTBO..PS1201405-201504

main82161-B5M10iS321,331..5F..TBO..PS1201405-201504

main82161-B5M30iS331..4FC..TBO..PS1201502-201504

main82161-B5U00supersedes 82161-B5U30iS321,331..5F..(DLX,SPL); S321,331..5F..CR..NTBO201504-201511

main82161-B5U01supersedes 82161-B5U31iS321,331..5F..(DLX,SPL); S321,331..5F..CR..NTBO201511-201711

main82161-B5U60supersedes 82161-B5U50iS321,331..4FC..(DLX,SPL); S321,331..4FC..CR..NTBO201504-201511

main82161-B5U61supersedes 82161-B5U51iS321,331..4FC..(DLX,SPL); S321,331..4FC..CR..NTBO201511-201711

main82161-B5U70iS321,331..5F..TBO201504-201511

main82161-B5U71iS321,331..5F..TBO201511-201711

main82161-B5U90iS321,331..4FC..TBO201504-201511

main82161-B5U91iS321,331..4FC..TBO201511-201711

main82161-B5831iS321,331..5F..(DLX,SPL)201112-201405

main82161-B5K91supersedes 82161-B5X71iS321,331..5F..NTBO201911-202009

main82161-B5K92supersedes 82161-B5X72iS321,331..5F..NTBO202009

main82161-B5L30iS321,331..5F..(DLX,SPL)201405-201502

main82161-B5X00supersedes 82161-B5X90iS321,331..4FC..NTBO201911

main82161-B5X70supersedes 82161-B5K90iS321,331..5F..NTBO201711-201812

main82161-B5X71supersedes 82161-B5K91iS321,331..NTBO..PS4201812-201911

main82161-B5X90supersedes 82161-B5X00iS321,331..4FC..NTBO201711-201911

main82161-B5Y00supersedes 82161-B5Y30iS321,331..4FC..TBO201911

main82161-B5Y10supersedes 82199-B5120iS321,331..5F..TBO201711-201812

main82161-B5Y11supersedes 82199-B5121iS321,331..TBO..PS4201812-201911

main82161-B5Y30supersedes 82161-B5Y00iS321,331..4FC..TBO201711-201911

main82199-B5121supersedes 82161-B5Y11iS321,331..5F..TBO201911

3 parts on this diagram · 20 diagrams in section
