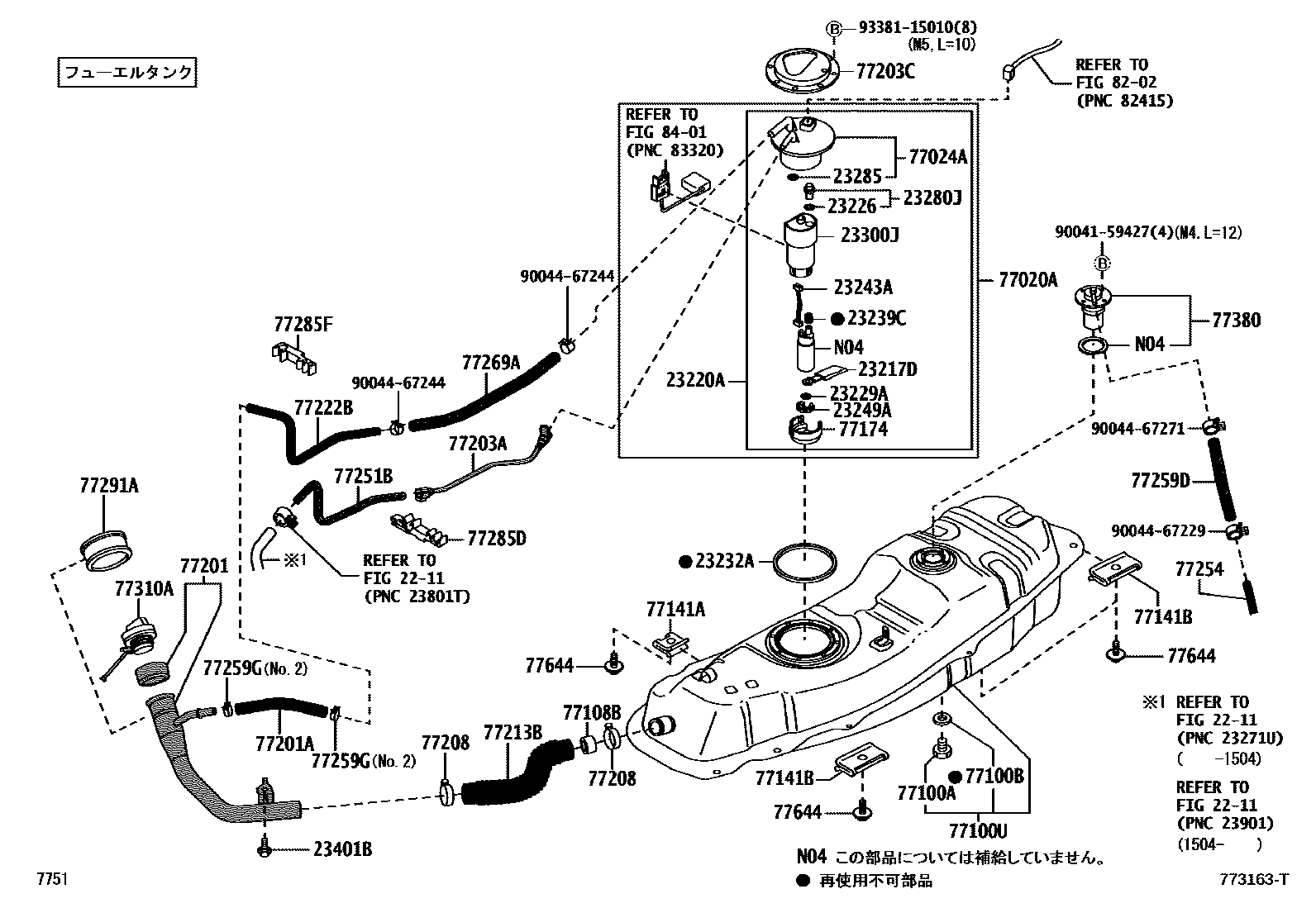

FUEL TANK & TUBE
2211FUEL INJECTION SYSTEM
23217DFILTER, FUEL PUMP
23220APUMP ASSY, FUEL W/FILTER
23226RING, O(FOR FUEL PUMP)
23229ACLIP(FOR FUEL PUMP FILTER)
23232AGASKET, FUEL PUMP
23239CSEAL, FUEL PUMP FILTER
23243AWIRE, FUEL PUMP MOTOR
23249ARUBBER, CUSHION(FOR FUEL PUMP)
23280JREGULATOR ASSY, FUEL PRESSURE
23285RING, O
23300JFILTER ASSY, FUEL
23401BBOLT
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77100UTANK SUB-ASSY, FUEL
77108BVALVE SUB-ASSY, FUEL TANK FILLER CHECK
77141AREINFORCEMENT, FUEL TANK FLANGE
77141BREINFORCEMENT, FUEL TANK FLANGE, NO.1
77174SUPPORT, FUEL SUCTION, NO.1
77201PIPE SUB-ASSY, FUEL TANK INLET
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77203ATUBE SUB-ASSY, FUEL SUCTION
77203CBRACKET, FUEL PUMP
77208CLAMP SUB-ASSY, FUEL HOSE
77213BHOSE, FUEL TANK TO FILLER PIPE
77222BTUBE, FUEL TANK BREATHER, NO.2
77251BTUBE, FUEL MAIN
77254TUBE, FUEL EMISSION, NO.1
77259DHOSE, FUEL, NO.1
77259GCLIP, FUEL HOSE
77269AHOSE, FUEL TANK BREATHER
77285DCLAMP, FUEL TUBE, NO.1
77285FCLAMP, FUEL TUBE, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77380VALVE ASSY, FUEL CUT OFF
77644BOLT, FUEL TANK
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
9004159427
main90041-59427
9004467229
main90044-67229
9004467244
main90044-67244
9004467271
main90044-67271
9338115010
main93381-15010
47 parts on this diagram · 10 diagrams in section
