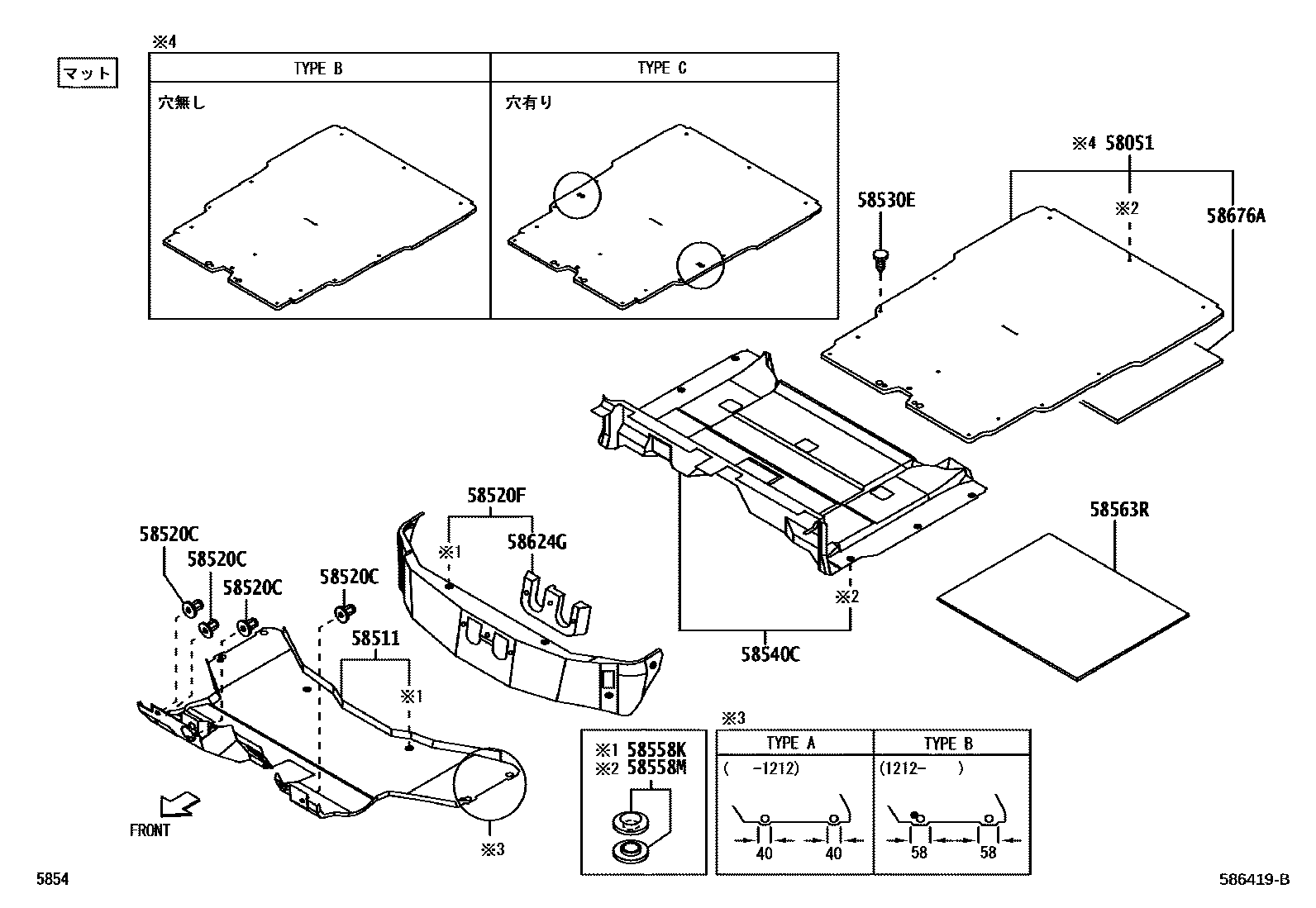

FLOOR MAT & SILENCER PAD

0001 1��� 0002 1������

58051MAT SET, FLOOR

main58051-B5020-B1iS321,331..(DLX,SPL)..STD; S321,331..CR201504-201511

main58051-B5280-B0iS321,331..CR; S321,331..DLX,SPL201511-201711

main58051-B5280-B2iS321,331..CR; S321,331..DLX,SPL201711

main58570-B5260-B0iS321,331..ULEV201504-201511

58511MAT, FLOOR, FRONT

main58510-B5100-B0iS321,331..SPL..PS1201112-201504

-,TRIM1#

main58510-B5170-B0iS321,331..DLX201112-201212

main58510-B5210-B0iS321,331..DLX201711

BLACK,TRIM2#

main58510-B5220-B0iS321,331..DLX..PS2201212-201711

main58510-B5230-B0iS321,331..SPL201711

BLACK,TRIM2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90044-68234-B2×4iS321,331..(DLX,SPL)..PS1; S321,331..CR..PS1201112-201504

DK.GRAY,TRIM1#

main90044-68234-C0×2iS321,331..CR; S321,331..DLX,SPL201711

BLACK,TRIM2#

58520FMAT ASSY, ENGINE COVER

main58520-B5011-B1iS321,331..SPL..PS1201112-201504

-,TRIM1#

main58520-B5031-B0iS321,331..DLX..PS2201112-201711

-,TRIM1#

main58520-B5120-B0iS321,331..SPL201711

BLACK,TRIM2#

main58520-B5130-B0iS321,331..DLX201711

BLACK,TRIM2#

58530ECLIP(FOR FRONT FLOOR REAR CARPET)

main90044-68028-B0×11iS321,331..ULEV201511-201711

DK.GRAY,TRIM1#

main90044-68028-C1×11iS321,331..CR; S321,331..DLX,SPL201711

58540CMAT ASSY, FLOOR, REAR

main58540-B5010-B1iS321,331..(DLX,SPL)..PS1; S321,331..CR..PS1201112-201504

main58540-B5340-B0iS321,331..CR; S321,331..DLX,SPL201711

58558KFASTENER, PILE

main58558-87501-B0×8iS321,331..DLX..PS1201212-201504

GRAY,TRIM1#

main58558-87501-C0×14iS321,331..DLX; S321,331..SPL201711

BLACK,TRIM2#

58558MFASTENER, PILE

main58558-87501-B0×6iS321,331..(DLX,SPL)..PS1; S321,331..CR..PS1201112-201504

main58558-87501-C0×6iS321,331..CR; S321,331..DLX,SPL201711

58563RSILENCER, FRONT FLOOR, NO.3

main58563-B5010iS321,331..PS2201112-201711

58624GPAD, FRONT FLOOR SILENCER

main58621-B5040iS321,331201711

58676APAD, REAR FLOOR SILENCER

main58579-B5010supersedes 58579-B5020iS321,331..CR; S321,331..DLX,SPL201711

11 parts on this diagram · 2 diagrams in section
