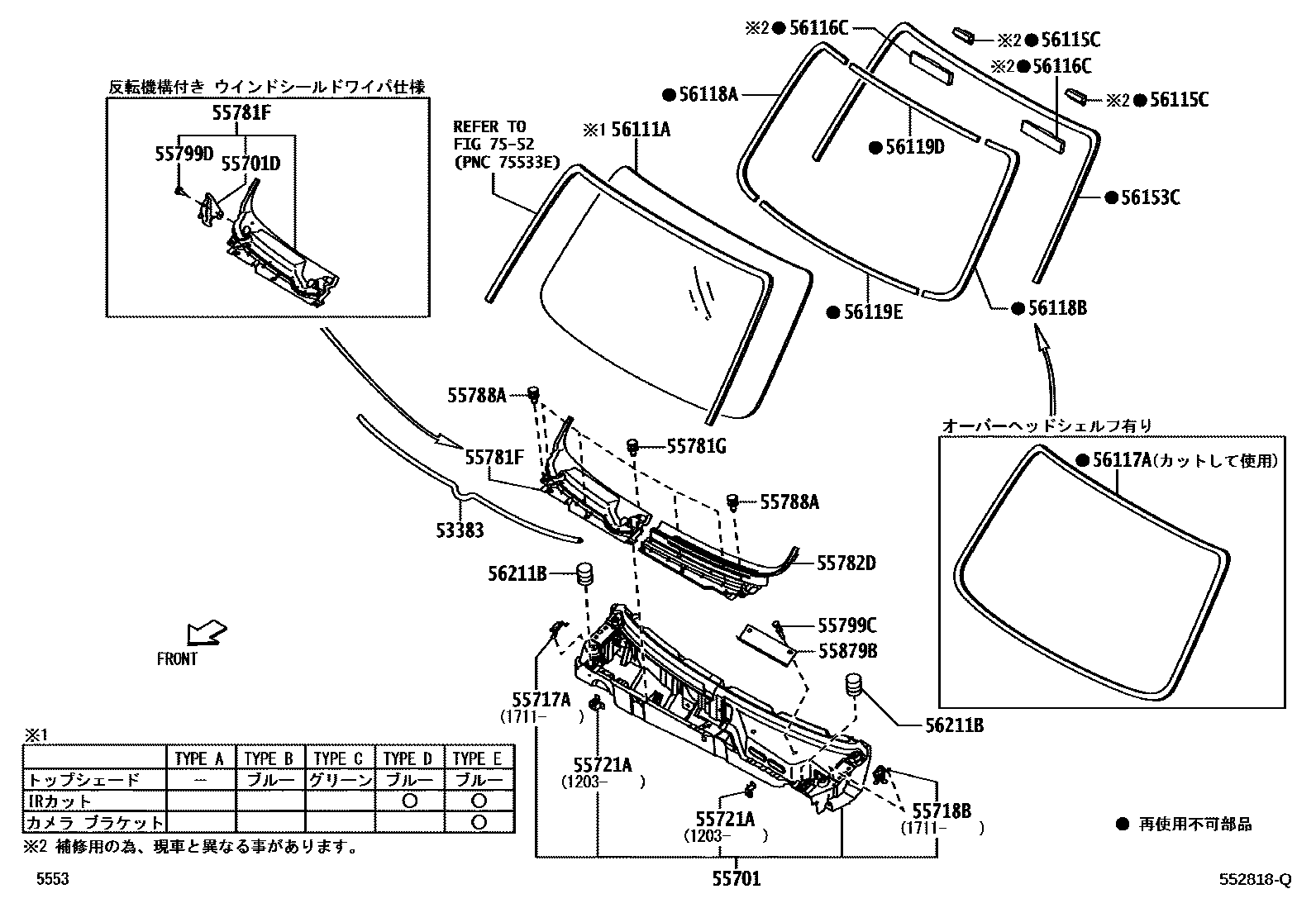

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-B5010iS321,331..PS1201112-201504

55701PANEL SUB-ASSY, COWL

main55700-B5010iS321,331201112-201202

main55700-B5011iS321,331201203-201210

main55700-B5012iS321,331..PS1201211-201504

main55700-B5030iS321,331201711

55701DPROTECTOR, COWL UPPER LOUVER

main55788-B5010iS321,331..PS1201112-201504

55717APANEL, COWL TOP SIDE, INNER RH

main55717-B5010iS321,331201711

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-B5010iS321,331201711

55721ABRACE, COWL TOP TO COWL, INNER NO.1

main55721-B5011×2iS321,331201504-201711

55781FLOUVER, COWL TOP VENTILATOR

main55708-B5010supersedes 55781-B5020iS321,331..PS2201112-201711

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90044-67496×5iS321,331201711

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-B5011iS321,331201711

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-52040×2iS321,331201711

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-B5011×2iS321,331..PS1201112-201504

55799DCLIP, COWL TOP VENTILATOR LOUVER, NO.1

main90044-67383iS321,331201711

55879BSEAL, COWL VENT

main55879-B5010iS321,331201112-201308

main55879-B5020iS321,331..PS1201309-201504

56111AGLASS, WINDSHIELD

main56101-B5010iS321,331..4FC201711-201809

main56101-B5011iS321,331..4FC;S321,331..5F..(PS4,PS5,PS6)201810-202108

main56101-B5012iS321,331202109

main56111-B5011iS321,331..(DLX,SPL)..PS2201112-201711

main56111-B5030iS321,331..CR..PS1201112-201504

main56111-B5070iS321,331..CR201504-201711

main56111-B5160iS321,331..5F..(DLX,SPL)201711-201812

main56111-B5170iS321,331..5F..CR; S321,331..5F..DLX201711-201812

main56111-B5090iS321,331201511-201711

main56111-B5180iS321,331..5F; S321,331..5F..DLX201711-201812

56115CSTOPPER, WINDSHIELD GLASS

main56115-B5020×2iS321,331201711

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-97401×2iS321,331..PS2201112-201711

56117ADAM, WINDOW GLASS ADHESIVE

main56117-97401iS321,331..CR,DLX;S321,331..4FC..SPL..PS3;S321,331..SPL..(PS4,PS5,PS6)201711

main00000-00000iS321..4FC..SPL; S331..4FC..SPL201711-201911

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-B5060iS321,331..5F..SPL201711-201812

main00000-00000iS321..5F..SPL; S331..5F..SPL201711-201812

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-B5060iS321,331..SPL..PS1201112-201504

main00000-00000iS321..5F..SPL; S331..5F..SPL201711-201812

56119DDAM, WINDOW GLASS ADHESIVE, NO.3

main56117-B5120iS321,331..5F..SPL201711-201812

main00000-00000iS321..5F..SPL; S331..5F..SPL201711-201812

56119EDAM, WINDOW GLASS ADHESIVE, NO.4

main56117-B5120iS321,331..5F..SPL201711-201812

main00000-00000iS321..5F..SPL; S331..5F..SPL201711-201812

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-B5010iS321,331..SPL..PS1201112-201504

main00000-00000iS321..5F..SPL; S331..5F..SPL201711-201812

56211BCUSHION, WINDSHIELD

main53381-B2150×2iS321,331201711

main90045-41262×2iS321,331..PS2201112-201711

7552MOULDING

→ Go to FIG 75-52

24 parts on this diagram · 1 diagram in section
