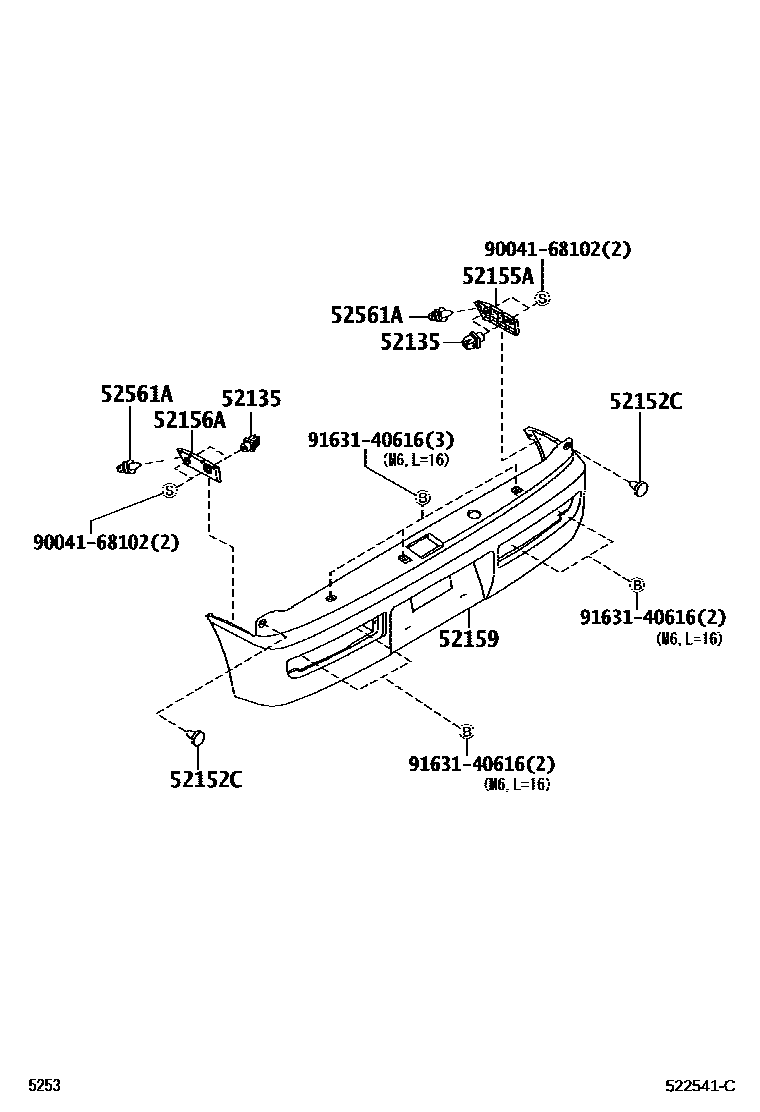

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52135GROMMET, REAR BUMPER STAY

main90041-89082×4iS321,331..PS1201112-201504

52152CCLIP, REAR BUMPER SIDE

main90044-68316×2iS321,331201711

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-B5010iS321,331201504-201711

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-B5010iS321,331..PS1201112-201504

52159COVER, REAR BUMPER

main52159-B5020-A2iS321,331..CR..PS1201112-201711

main52159-B5020-A3iS321,331..PS1201112-201711

main52159-B5020-B2iS321,331..PS1201112-201711

main52159-B5020-C1iS321,331201504-201711

main52159-B5090-A0supersedes 52159-B5110-A0iS321,331..5F201711-201812

main52159-B5090-A1supersedes 52159-B5110-A1iS321,331..5F..CR201711-201812

main52159-B5090-B0supersedes 52159-B5110-B0iS321,331..5F201711-201812

main52159-B5090-C0supersedes 52159-B5110-C0iS321,331..5F..(CR,DLX)201711-201812

main52159-B5090-E0supersedes 52159-B5110-E0iS321,331..5F..(CR,DLX)201711-201812

main52159-B5090-G1supersedes 52159-B5110-G1iS321,331..5F..(CR,DLX)201711-201812

main52159-B5090-J0supersedes 52159-B5110-J0iS321,331..5F..(CR,DLX)201711-201812

52561ACLIP(FOR REAR BUMPER RETAINER)

main90044-67526×2iS321,331..PS2201112-201711

9004168102

main90041-68102

9163140616

main91631-40616

8 parts on this diagram · 2 diagrams in section
