43211KNUCKLE, STEERING, RH

main43211-B5041supersedes 43211-B5031i201112-201504

main43211-B5090i201711

43211KBOLT (FOR STEERING KNUCKLE RH)

main90041-01652×2i201711

43211LNUT (FOR STEERING KNUCKLE RH)

main90041-70362×2i201112-201201

main90041-70393×2i201711

43212KNUCKLE, STEERING, LH

main43212-B5041supersedes 43212-B5031i201112-201504

main43212-B5090i201711

43212DBOLT (FOR STEERING KNUCKLE LH)

main90041-01652×2i201112-201504

43212ENUT (FOR STEERING KNUCKLE LH)

main90041-70362×2i201112-201201

main90041-70393×2i201711

43345COVER, LOWER BALL JOINT DUST

main43345-87508×2i201112-201504

4705FRONT DISC BRAKE CALIPER & DUST COVER

→ Go to FIG 47-05

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-B5011i201711-202112

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90041-70342i201711

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90041-01635i201711

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90041-70342i201711

48068LWASHER(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main94622-51400i201711

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90041-19984i201711

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-B5011i201711

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90041-70342i201711

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90041-01635i201711

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90041-70342i201711

48069GWASHER(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main94622-51400i201711

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90041-19984i201711

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

44684B5010RETAINER, SNAP RING(FOR BOOSTER BODY)

main44684-B5010

9004170352

main90041-70352

9004468303

main90044-68303

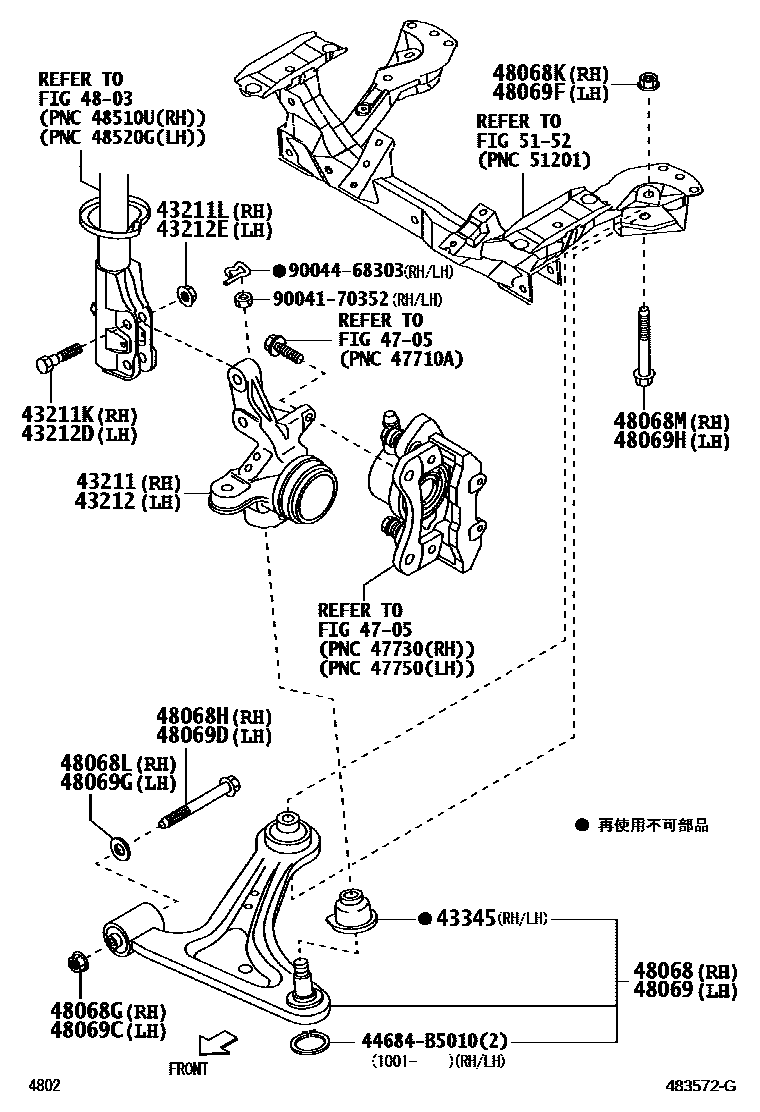

FRONT AXLE ARM & STEERING KNUCKLE
