BRAKE BOOSTER & VACUUM TUBE

0001 1BREAK BOOSTER ASSY 0002 1BREAK BOOSTER ASSY 0005 1BREAK BOOSTER ASSY 0006 1HOSE & TUBE 0007 1HOSE & TUBE 0008 1HOSE & TUBE

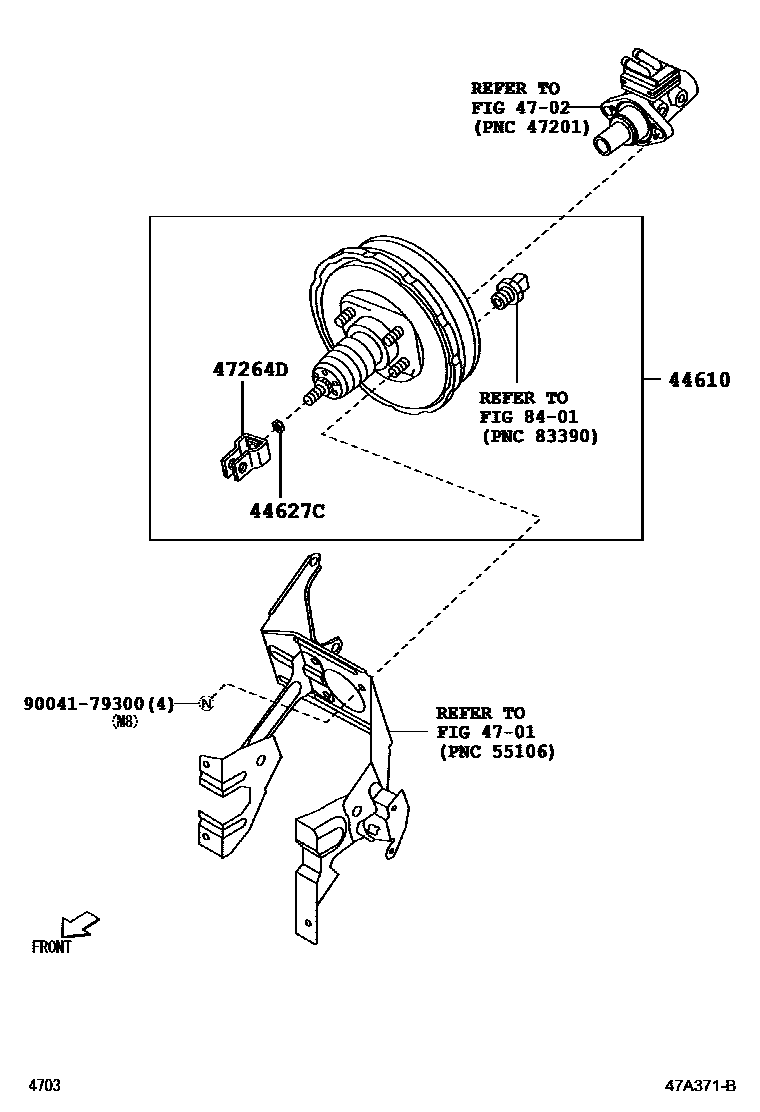

44610BOOSTER ASSY, BRAKE

main44610-B5020supersedes 44610-B5010iS321,331..5F..(DLX,SPL); S321,331..5F..CR201112-201212

main44610-B5090supersedes 44610-B5080iS321,331..4FC..(DLX,SPL); S321,331..4FC..CR..NTBO201112-201212

main44610-B5110supersedes 44610-B5170iS321,331..4FC..TBO..PS2201112-201711

main44610-B5160supersedes 44610-B5140iS321,331..5F..(DLX,SPL); S321,331..5F..CR201212-201405

main44610-B5190supersedes 44610-B5180iS321,331..5F..(DLX,SPL)..PS1; S321,331..5F..CR..PS1201405-201504

main44610-B5210supersedes 44610-B5200iS321,331..4FC..(DLX,SPL)..PS2; S321,331..4FC..CR..NTBO..PS2201405-201711

main44610-B5250iS321,331201711-201901

main44610-B5251iS321,331201902

44627CNUT, BOOSTER SLEEVE CYLINDER

main94130-01002iS321,331..5F;S321,331..4FC..NTBO201112-201212

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-B5010iS321,331..5F;S321,331..4FC..NTBO201112-201212

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004179300

main90041-79300

7 parts on this diagram · 6 diagrams in section
