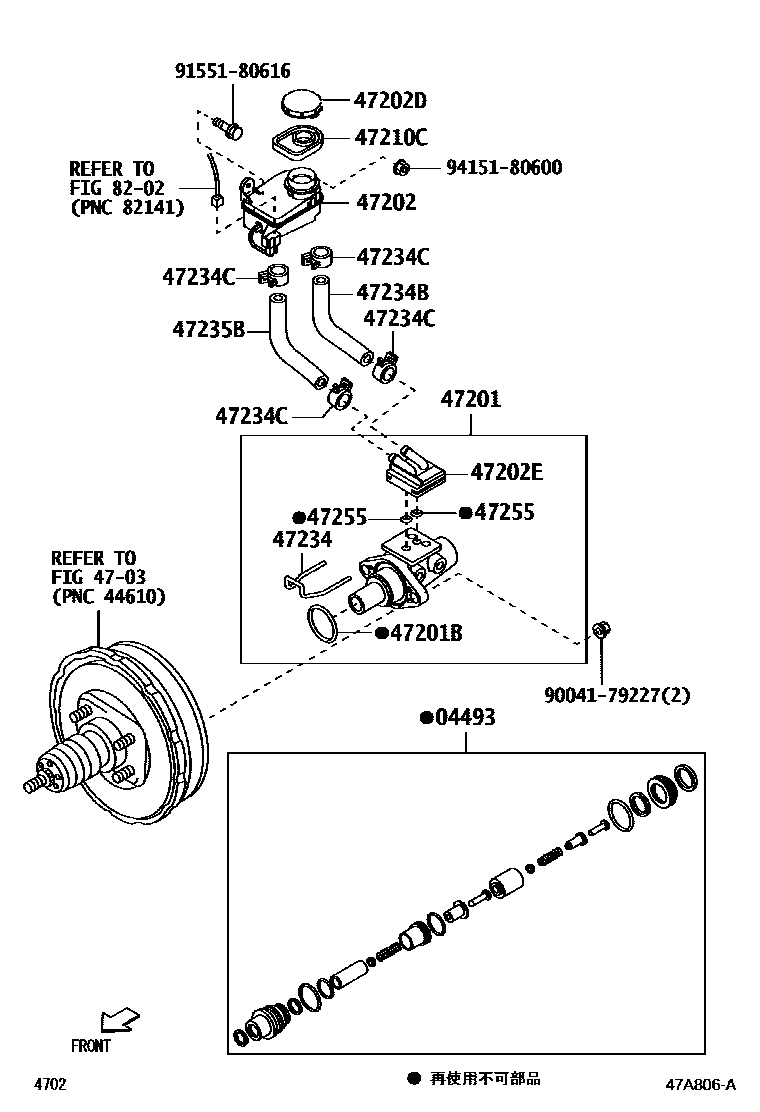

BRAKE MASTER CYLINDER

0001 1 0002 1 0004 1

04493CYLINDER KIT, BRAKE MASTER

main04471-B5020supersedes 04471-B5010iS321,331..5F..CR;S321,331..4FC..CR..NTBO; S321,331..DLX,SPL201112-201212

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-B5020supersedes 47201-B5010iS321,331..5F..CR;S321,331..4FC..CR..NTBO; S321,331..DLX,SPL201112-201212

main47201-B5050supersedes 47201-B5060iS321,331..(DLX,SPL)..PS1; S321,331..5F..CR..PS1;S321,331..4FC..CR..NTBO..PS1201212-201504

main47201-B5051supersedes 47201-B5062iS321,331..CR; S321,331..DLX,SPL201709-201711

main47201-B5061iS321,331..(DLX,SPL)..PS1201403-201504

main47201-B5120iS321,331201711

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90043-01319iS321,331..5F;S321,331..4FC..NTBO201112-201212

main90043-01352iS321,331..5F..PS1;S321,331..4FC..NTBO..PS1201212-201504

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47203-B5010iS321,331..PS1201112-201504

47202DCAP, RESERVOIR(FOR MASTER CYLINDER RESERVOIR SET)

main47225-97502iS321,331..PS1201112-201504

47202EUNION(FOR MASTER CYLINDER RESERVOIR SET)

main90044-05232iS321,331..5F;S321,331..4FC..NTBO201112-201212

47210CPLATE(FOR BRAKE MASTER CYLINDER PISTON STOP)

main11494-B5010iS321,331201711

47234RETAINER, RESERVOIR GASKET

main47217-97504iS321,331..5F;S321,331..4FC..NTBO201112-201212

47234BTUBE, RESERVOIR, NO.1

main47234-B5030iS321,331201711

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main90044-67246×4iS321,331..PS1201112-201504

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-B5020iS321,331..PS1201112-201504

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-87701×2iS321,331..5F;S321,331..4FC..NTBO201112-201212

main47255-B2050×2iS321,331..DLX,SPL201212-201403

8202WIRING & CLAMP

→ Go to FIG 82-02

9004179227

main90041-79227

9155180616

main91551-80616

9415180600

main94151-80600

17 parts on this diagram · 3 diagrams in section
