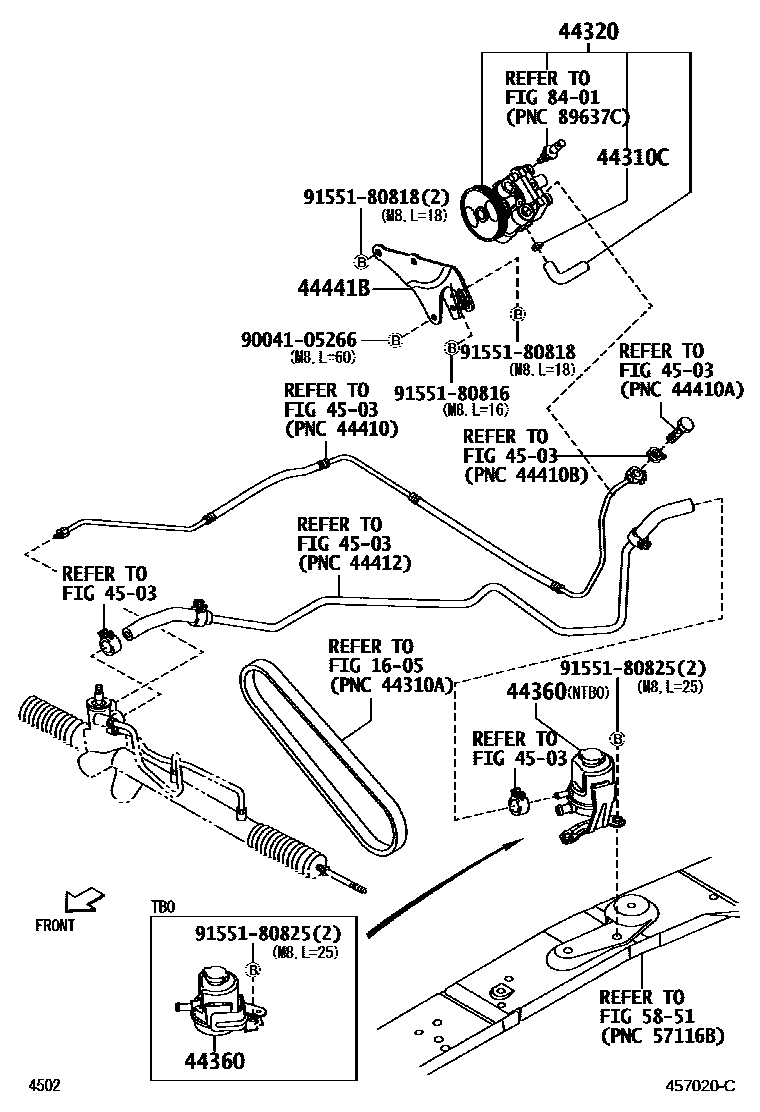

VANE PUMP & RESERVOIR (POWER STEERING)

1605V-BELT

→ Go to FIG 16-05

44310CRING, O(FOR VANE PUMP)

main9004C-30010iS321,331..PS1201112-201711

44320PUMP ASSY, VANE

main44310-B5010iS321,331201112-201205

main44310-B5011iS321,331..PS1201206-201711

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-B5020iS321,331..TBO..(PS1,PS2)201112

main44360-B5030iS321,331..NTBO..(PS1,PS2)201112

44441BBRACKET, PUMP, FRONT

main44441-B5020iS321,331..PS1,PS2201112

4503POWER STEERING TUBE

→ Go to FIG 45-03

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004105266

main90041-05266

9155180816

main91551-80816

9155180818

main91551-80818

9155180825

main91551-80825

12 parts on this diagram · 1 diagram in section
