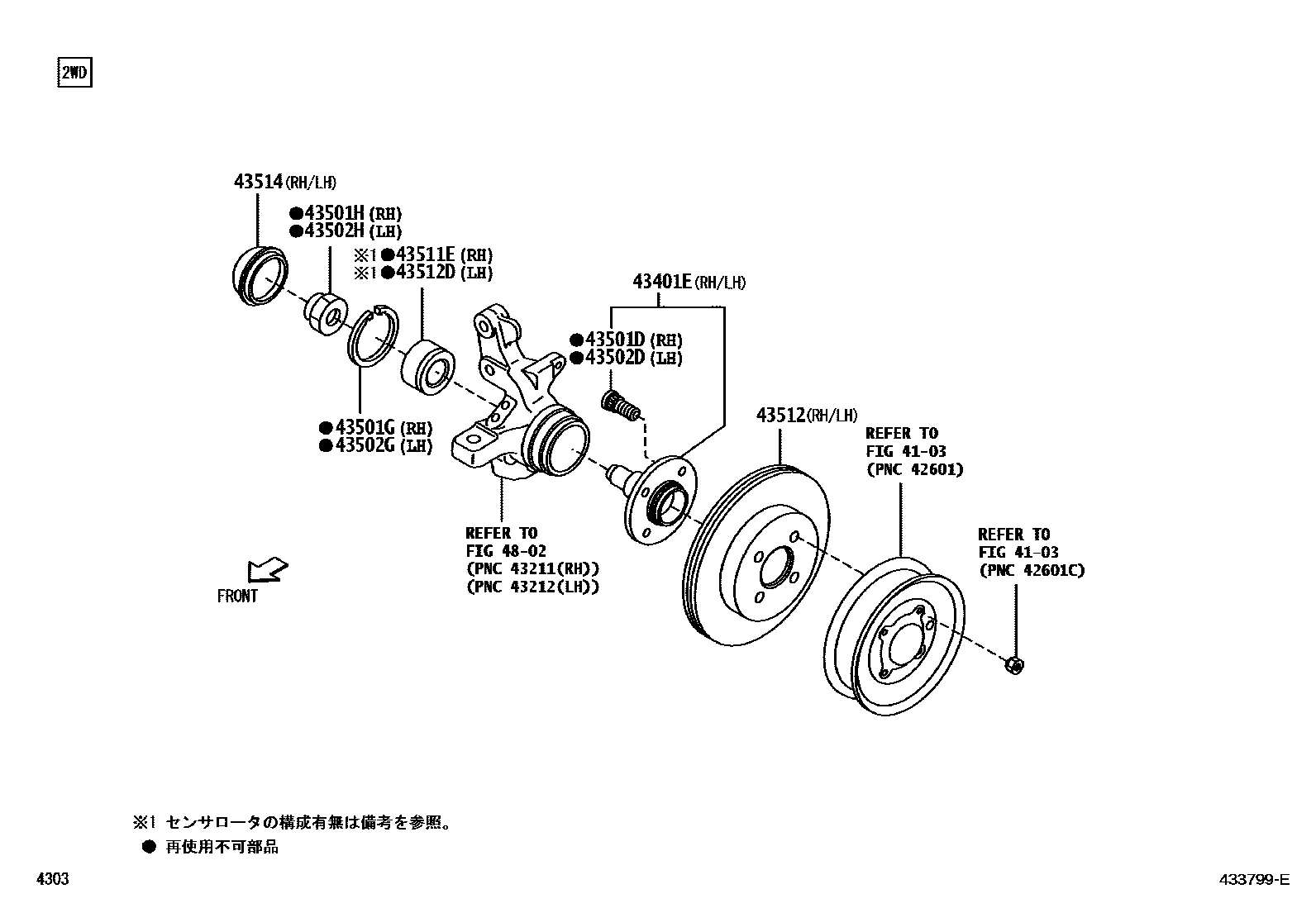

FRONT AXLE HUB

0001 1 0002 1

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

43401ESPINDLE SUB-ASSY, STEERING

main43401-97501×2iS321..PS1201112-201504

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12056×4iS321,331201711

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21111iS321,331201711-202112

main90045-21163iS321,331..PS1201112-201504

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90041-78071iS321..PS2201112-201711

main90041-79274iS331..PS1201112-201504

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12056×4iS321,331201711

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21111iS321,331201711

main90045-21163iS321,331..PS2201112-201711

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90041-78071iS321..PS1201112-201504

main90041-79274iS331..PS1201112-201504

43511EBEARING (FOR FRONT AXLE HUB RH)

main43560-B5010supersedes 90043-63303iS321,331..CR; S321,331..DLX,SPL201504-201711

main43560-B6010iS321,331201711-201908

main43560-B6011iS321,331201909

main90043-63302supersedes 90043-63303iS321,331..CR; S321,331..DLX,SPL201112-201203

43512DISC, FRONT

main43512-97503×2iS321,331..PS1201112-201504

main43512-B5050×2iS321,331201711

43512DBEARING (FOR FRONT AXLE HUB LH)

main43560-B5010supersedes 90043-63303iS321,331..(DLX,SPL)..PS1; S321,331..CR..PS1201204-201711

main43560-B6010iS321,331201711-201908

main43560-B6011iS321,331201909

main90043-63302supersedes 90043-63303iS321,331..CR; S321,331..DLX,SPL201112-201203

43514CAP, FRONT HUB GREASE

main43514-97501×2iS321201711

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

13 parts on this diagram · 2 diagrams in section
