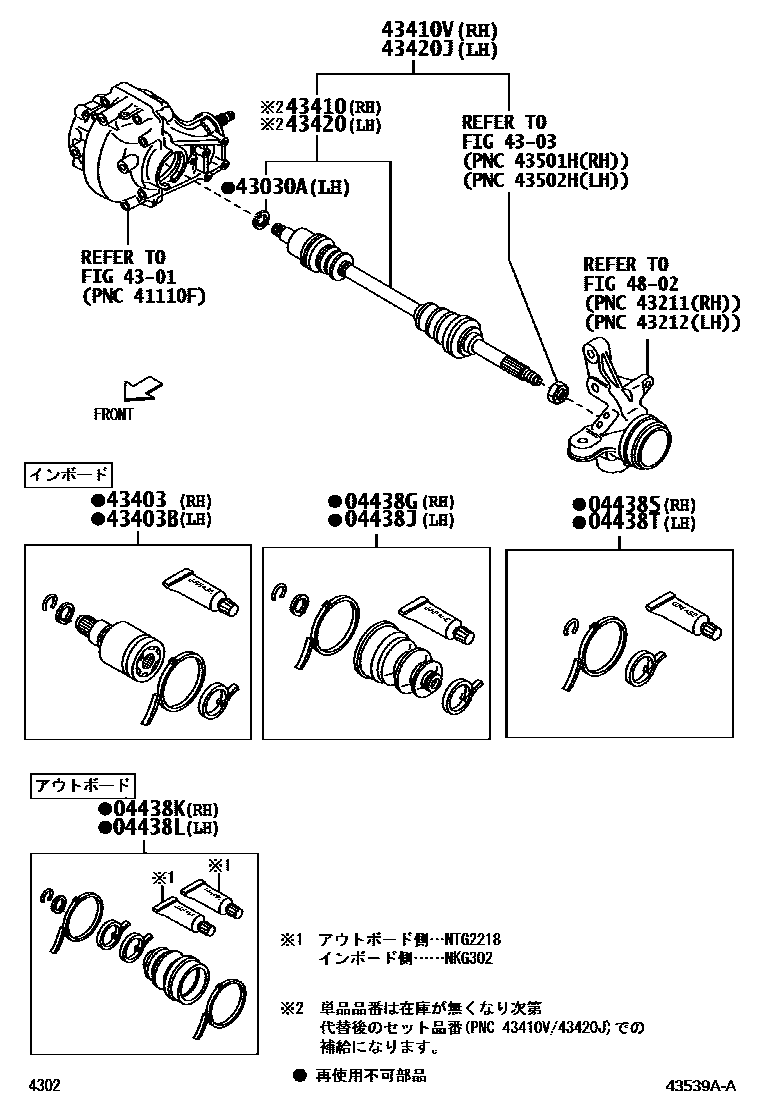

FRONT DRIVE SHAFT

0001 1 0002 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-B2010iS331201711

main04437-B5010iS331..PS2201112-201510

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-B2010iS331..PS1201112-201504

04438KBOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH

main04425-B5040iS331201711-202112

main04425-B5050iS331..PS1201112-201504

04438LBOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, LH

main04425-B5040iS331..PS1201112-201504

04438SCLAMP KIT, FRONT DRIVE SHAFT, RH

main04435-B2010iS331201711

main04435-B5010iS331..PS1201112-201504

04438TCLAMP KIT, FRONT DRIVE SHAFT, LH

main04435-B2010iS331..PS1201112-201504

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4303FRONT AXLE HUB

→ Go to FIG 43-03

43030ARING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)

main90045-20298iS331201711

43403JOINT SET, FRONT AXLE INBOARD, RH

main43408-B9310iS331..PS1201112-201504

main43408-B9490iS331201711

43403BJOINT SET, FRONT AXLE INBOARD, LH

main43408-B9320iS331..PS1201112-201504

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-B5041supersedes 43410-B5031iS331..(DLX,SPL)..PS2; S331..CR..PS2201112-201510

main43410-B5080supersedes 43410-B5070iS331..CR; S331..DLX,SPL201511-201711

43410VSHAFT SET, FRONT DRIVE, RH

main43410-B9760supersedes 43410-B9750iS331..(DLX,SPL)..PS2; S331..CR..PS2201112-201711

main43410-B9780iS331201711

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-B5041supersedes 43420-B5031iS331..(DLX,SPL)..PS1; S331..CR..PS1201112-201504

main43420-B5080supersedes 43420-B5070iS331..CR; S331..DLX,SPL201511-201711

43420JSHAFT SET, FRONT DRIVE, LH

main43420-B9680supersedes 43420-B9670iS331..(DLX,SPL)..PS1; S331..CR..PS1201112-201504

main43420-B9690iS331201711-202102

main43420-B9691iS331202102-202112

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

16 parts on this diagram · 2 diagrams in section
