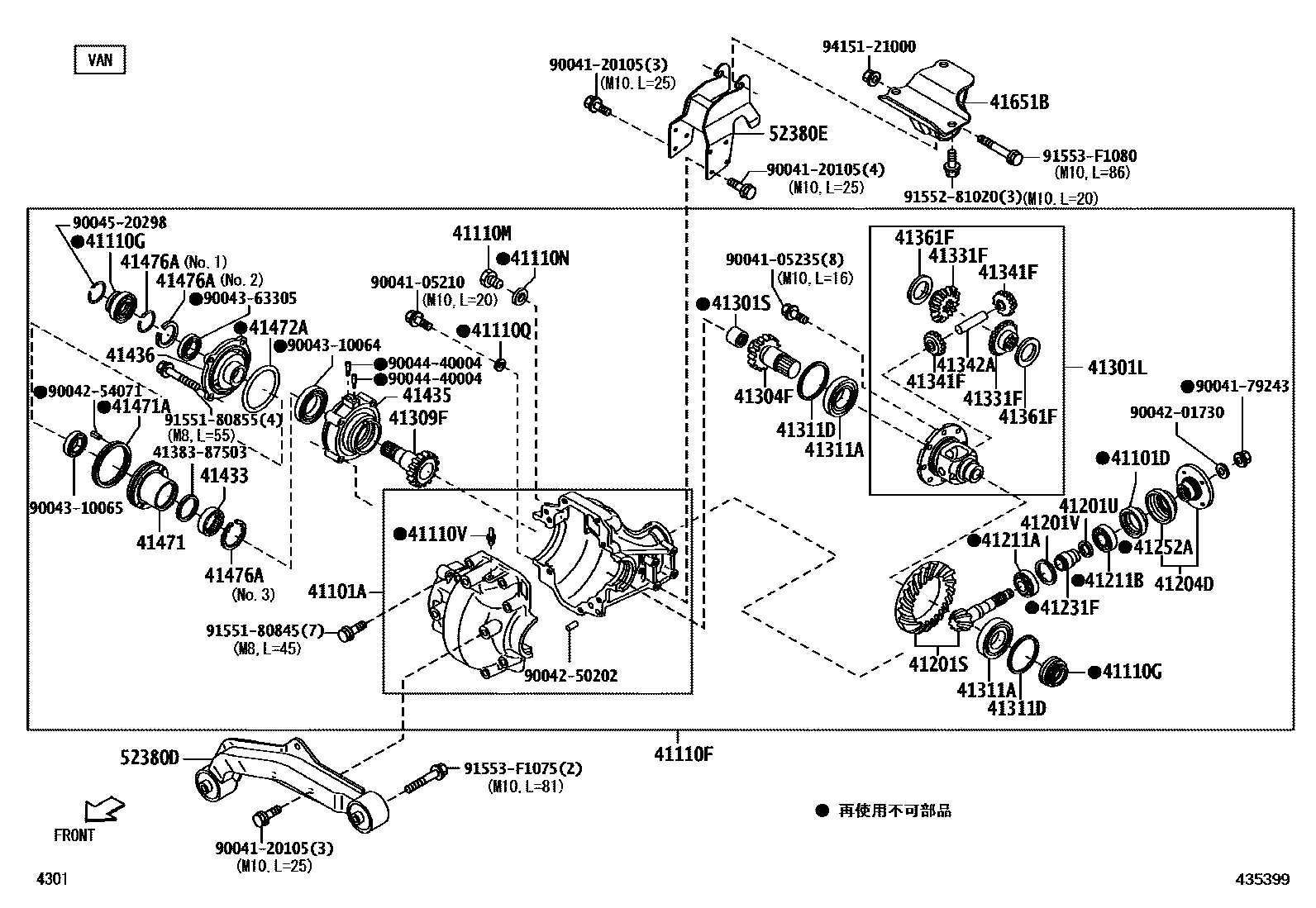

FRONT AXLE HOUSING & DIFFERENTIAL

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-B5040iS331..PS2201112-201711

41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)

main90043-11399iS331201711

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-B5101iS331..NTBO201711

main41110-B5111iS331..TBO..PS1201112-201504

41110GSEAL, OIL (FOR DIFFERENTIAL SIDE)

main90043-11400×2iS331201711

41110MPLUG, FRONT DIFFERENTIAL FILLER

main90043-41035iS331201711

41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG

main90044-30178iS331201711

41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG

main90044-30026iS331201711

41110VUNION (FOR FRONT DIFFERENTIAL)

main90044-04146iS331..PS1201112-201504

41201SFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-B5060iS331..NTBO201711

main41201-B5070iS331..TBO201711

41201USHIM (FOR FRONT DIFF DRIVE PINION SPACER FRONT ADJUST)

main90045-64533iS331..PS1201112-201504

main90045-64534iS331..PS1201112-201504

main90045-64535iS331201711

main90045-64536iS331201711

main90045-64537iS331..PS2201112-201711

main90045-64538iS331..PS1201112-201504

main90045-64539iS331201711

main90045-64540iS331..PS1201112-201504

main90045-64541iS331201711

main90045-64542iS331..PS2201112-201711

main90045-64543iS331..PS1201112-201504

main90045-64544iS331..PS2201112-201711

main90045-64545iS331201711

main90045-64546iS331201711

main90045-64547iS331..PS2201112-201711

main90045-64548iS331..PS2201112-201711

main90045-64549iS331201711

41201VSHIM (FOR FRONT DIFF DRIVE PINION SPACER REAR ADJUST)

main90045-64318iS331..PS2201112-201711

main90045-64319iS331..PS2201112-201711

main90045-64320iS331..PS2201112-201711

main90045-64321iS331201711

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-87514iS331201711

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90043-66036iS331201711

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90043-66012iS331201711

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-B5010iS331..PS2201112-201711

41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)

main41252-87504iS331..PS2201112-201711

41301LCASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1

main41301-B5030iS331201711

41301SBEARING, NEEDLE ROLLER

main90043-64141iS331201711

41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

main41333-B5010iS331201711

41309FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH

main41337-B5010iS331201711

41311ABEARING (FOR FRONT DIFFERENTIAL CASE)

main90043-63228×2iS331..PS1201112-201504

41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)

main90045-64598iS331..PS1201112-201504

main90045-64599iS331..PS2201112-201711

main90045-64600iS331..PS1201112-201504

main90045-64601iS331..PS2201112-201711

main90045-64602iS331..PS1201112-201504

main90045-64603iS331..PS2201112-201711

main90045-64604iS331..PS2201112-201711

main90045-64605iS331201711

main90045-64606iS331..PS2201112-201711

main90045-64607iS331201711

main90045-64608iS331..PS1201112-201504

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-B1010×2iS331..PS2201112-201711

41341FPINION, FRONT DIFFERENTIAL

main41341-87101×2iS331..PS2201112-201711

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main41342-B5010iS331201711

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-87501×2iS331..PS2201112-201711

main41361-87506×2iS331..PS1201112-201504

main41361-87507×2iS331201711

41433SLEEVE, DIFFERENTIAL CLUTCH

main41433-B5010iS331..PS1201112-201504

41435CASE, DIFFERENTIAL CLUTCH

main41435-B5010iS331201711

41436COVER, FRONT DIFFERENTIAL CLUTCH CASE

main41436-B5010iS331201711

41471PISTON, DIFFERENTIAL LOCK CLUTCH, NO.1

main41471-B5010iS331..PS2201112-201711

41471ARING, O (FOR DIFFERENTIAL LOCK CLUTCH PISTON NO.1)

main90043-01242iS331..PS2201112-201711

41472ARING, O (FOR DIFFERENTIAL LOCK CLUTCH PISTON NO.2)

main90043-01244iS331..PS1201112-201504

41476ARING, HOLE SNAP (FOR DIFFERENTIAL LOCK CLUTCH FLANGE)

main90045-21154iS331201711

main96150-02500iS331..PS2201112-201711

main96151-04700iS331..PS1201112-201504

41651BCUSHION, FRONT DIFFERENTIAL MOUNT, NO.1

main41651-B5030iS331201711

52380DSUPPORT ASSY, FRONT DIFFERENTIAL

main51205-B5020iS331201112-201210

main51205-B5021iS331..PS1201211-201504

52380ESUPPORT ASSY, DIFFERENTIAL

main51279-B5020iS331201112-201202

main51279-B5050iS331201711

4138387503WASHER, CLUTCH MEMBER THRUST

main41383-87503

9004105210

main90041-05210

9004105235

main90041-05235

9004120105

main90041-20105

9004179243

main90041-79243

9004201730

main90042-01730

9004250202

main90042-50202

9004254071

main90042-54071

9004310064

main90043-10064

9004310065

main90043-10065

9004363305

main90043-63305

9004440004

main90044-40004

9004520298

main90045-20298

9155180845

main91551-80845

9155180855

main91551-80855

9155281020

main91552-81020

91553F1075

main91553-F1075

91553F1080

main91553-F1080

9415121000

main94151-21000

55 parts on this diagram · 1 diagram in section
