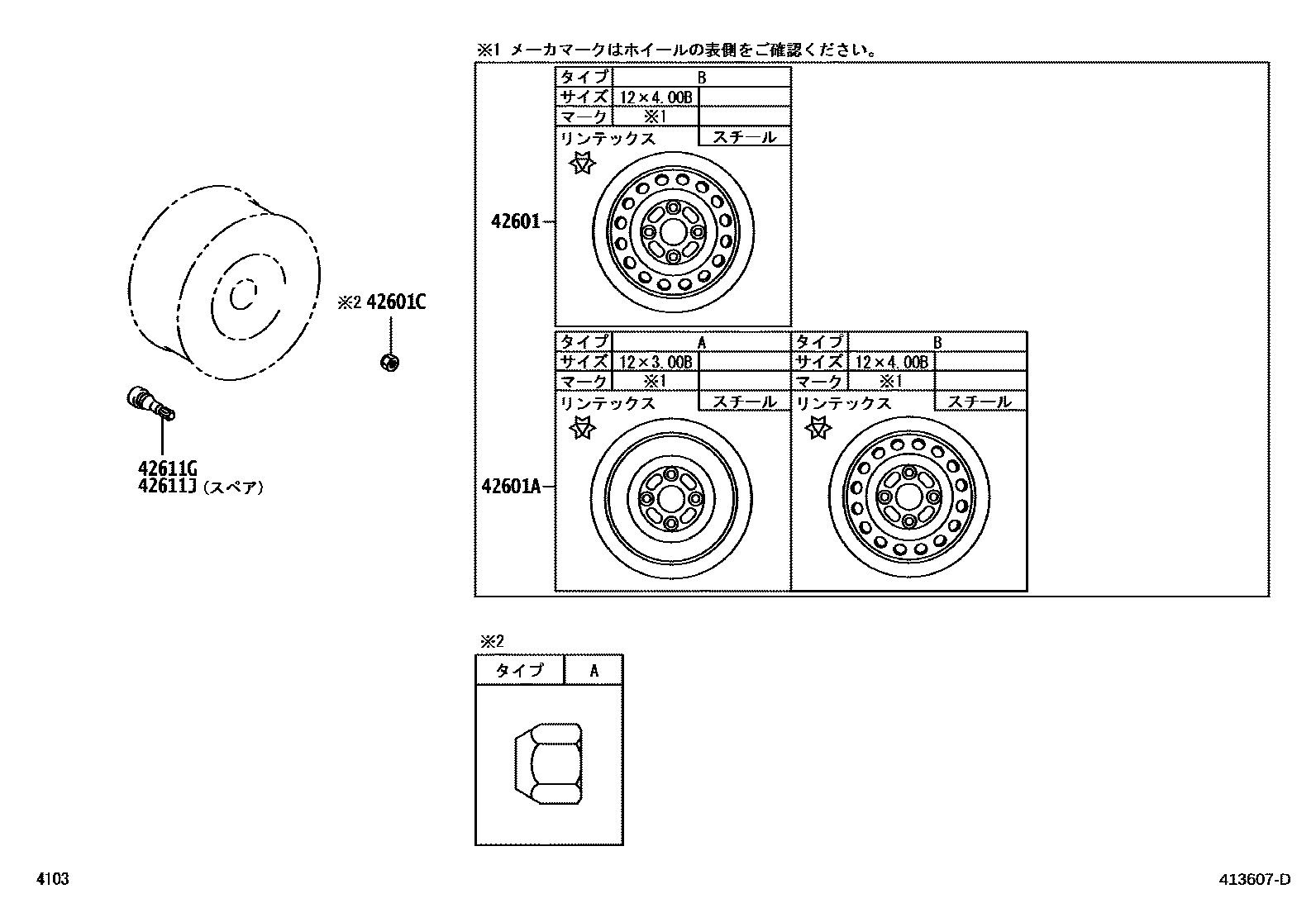

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-B5030×4supersedes 42611-B5040iS321,331..(DLX,SPL)..PS1; S321,331..CR..PS1201112-201504

42601AWHEEL, DISC (FOR SPARE)

main42611-B5090iS321,331..PS2201112-201711

main42611-B5030iS321,331..DLX,SPL201711

main42611-B5040iS321,331..DLX,SPL201711

42601CNUT, HUB (FOR AXLE)

main90049-11036×16iS321,331..PS2201112-201711

42611GVALVE (FOR TUBELESS TIRE)

main90049-02019×4iS321,331201711-202112

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90049-02019iS321,331201711

5 parts on this diagram · 3 diagrams in section
