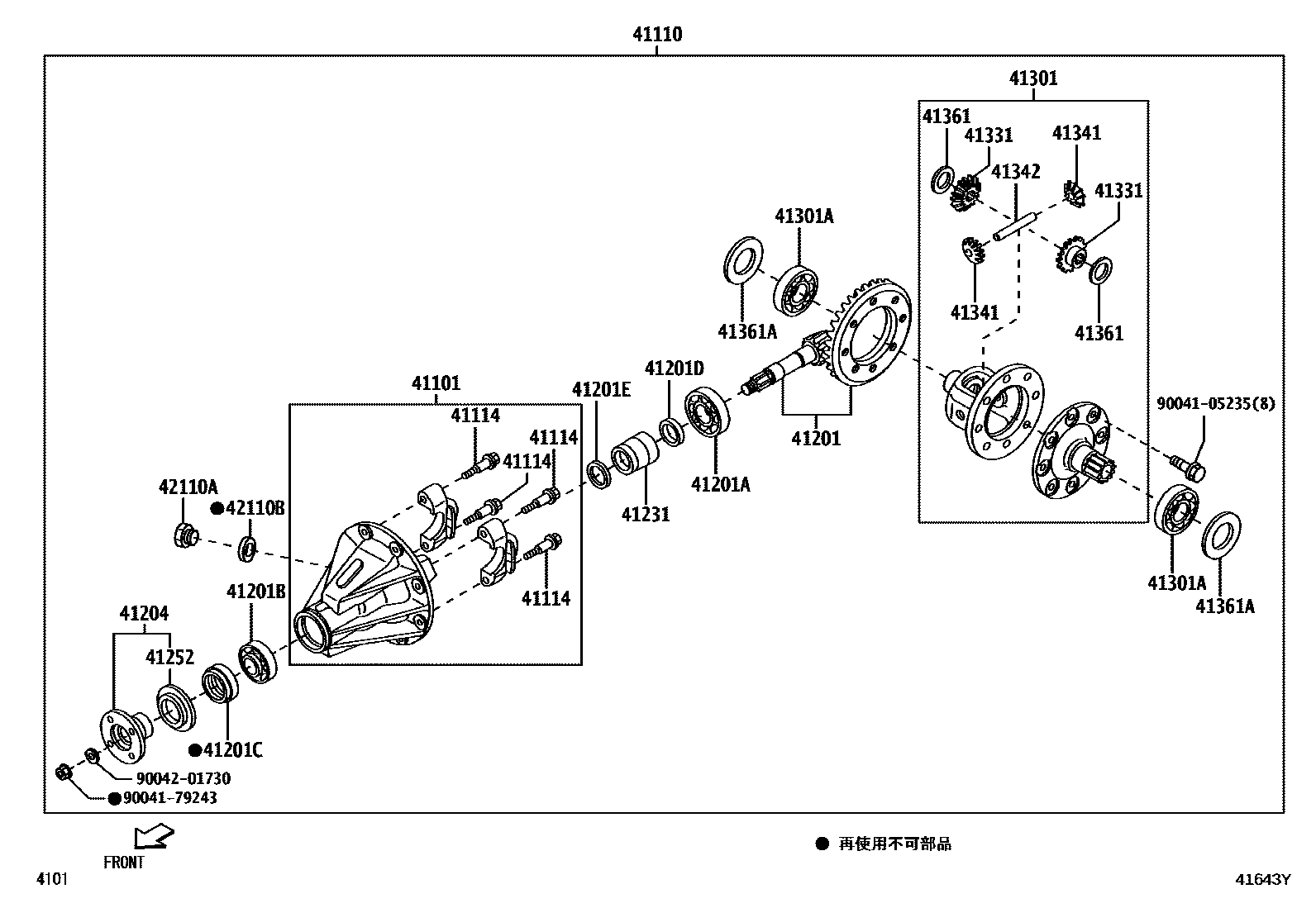

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-B5012iS321,331..NTBO..PS1201112-201504

main41101-B5013iS321,331..NTBO201711

main41101-B5022iS321,331..TBO..PS2201112-201708

main41101-B5023iS321,331..TBO201711

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-B5052iS331..NTBO;S321..5F..NTBO201112-201203

main41110-B5053iS331..NTBO;S321..5F..NTBO201711

main41110-B5062iS321..4FC..NTBO201112-201203

main41110-B5063iS321..4FC..NTBO201711

main41110-B5072iS321,331..TBO..PS1201112-201504

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main41114-B5010×4iS321,331201711

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-B5011iS331..NTBO;S321..5F..NTBO201711

main41201-B5021iS321..4FC..NTBO..PS1201112-201504

main41201-B5031iS321,331..TBO..PS1201112-201504

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90043-66013iS321,331..NTBO201112-201203

main90043-66073iS321,331..TBO201711

main90043-66080iS321,331..NTBO201711

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90043-66012iS321,331..PS2201112-201711

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90043-11363iS321,331201711

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90045-64621iS321,331..PS1201112-201504

main90045-64622iS321,331..PS1201112-201504

main90045-64623iS321,331..PS1201112-201504

main90045-64624iS321,331..PS1201112-201504

main90045-64625iS321,331201711

main90045-64626iS321,331201711

main90045-64627iS321,331201711

main90045-64628iS321,331..PS2201112-201711

main90045-64629iS321,331201711

main90045-64630iS321,331..PS1201112-201504

main90045-64631iS321,331..PS1201112-201504

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90045-64533iS321,331201711

main90045-64534iS321,331..PS2201112-201711

main90045-64535iS321,331201711

main90045-64536iS321,331201711

main90045-64537iS321,331..PS2201112-201711

main90045-64538iS321,331..PS1201112-201504

main90045-64539iS321,331..PS1201112-201504

main90045-64540iS321,331..PS1201112-201504

main90045-64541iS321,331..PS2201112-201711

main90045-64542iS321,331..PS2201112-201711

main90045-64543iS321,331..PS2201112-201711

main90045-64544iS321,331201711

main90045-64545iS321,331..PS1201112-201504

main90045-64546iS321,331201711

main90045-64547iS321,331..PS1201112-201504

main90045-64548iS321,331..PS1201112-201504

main90045-64549iS321,331201711

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-87514iS321,331201711

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-B5010iS321,331..NTBO201711

main41231-B5020iS321,331..TBO..PS1201112-201504

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-87504iS321,331201711

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-97505iS321,331..TBO..PS2201112-201711

main41301-B5010iS321,331..NTBO..PS1201112-201504

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90043-63228×2iS321,331201711

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-97202×2iS321,331201711

41341PINION, REAR DIFFERENTIAL

main41341-87510×2iS321,331..PS2201112-201711

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-87509iS321,331201711

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-87501×2iS321,331201711

main41361-87506×2iS321,331..PS2201112-201711

main41361-87507×2iS321,331..PS2201112-201711

41361ASHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST)

main90045-64500iS321,331201711

main90045-64501iS321,331201711

main90045-64502iS321,331..PS1201112-201504

main90045-64503iS321,331201711

42110HOUSING ASSY, REAR AXLE

main42110-B5052iS331..CR..NTBO; S331..DLX,SPL201112-201204

main42110-B5053supersedes 42110-B5033iS321,331..CR..NTBO; S321,331..DLX,SPL201212-201405

main42110-B5054supersedes 42110-B5033iS321,331..(DLX,SPL)..PS1; S321,331..CR..NTBO..PS1201405-201504

main42110-B5102iS321,331..TBO201205-201211

main42110-B5103iS321,331..TBO201212-201405

main42110-B5104iS321,331..TBO..PS1201405-201504

main42110-B5130iS321,331201711

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90043-41046iS321,331..PS2201112-201711

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main90044-30311iS321,331..PS1201112-201504

9004105235

main90041-05235

9004179243

main90041-79243

9004201730

main90042-01730

25 parts on this diagram · 2 diagrams in section
