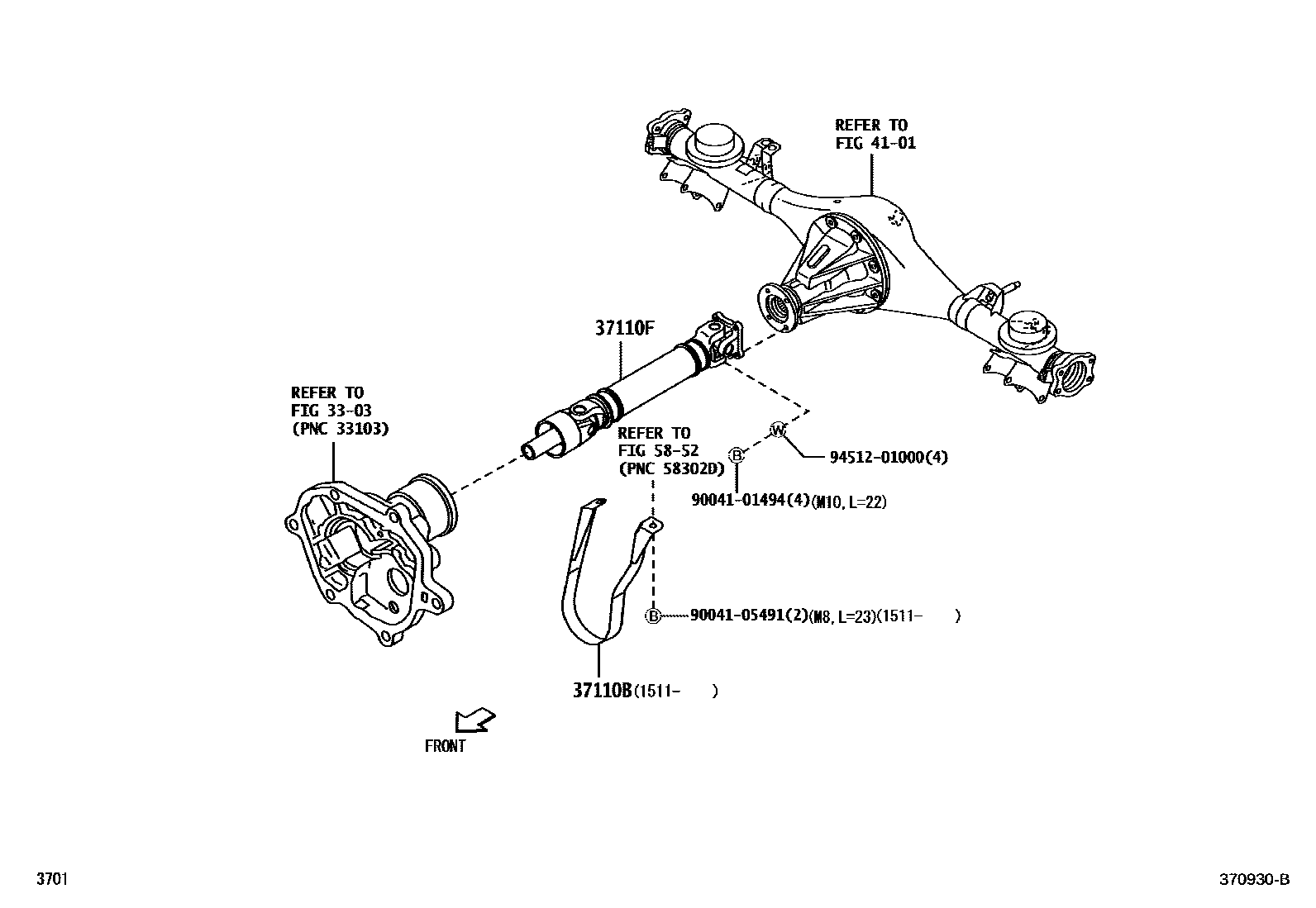

PROPELLER SHAFT & UNIVERSAL JOINT

0001 12WD 0002 14WD

3303EXTENSION HOUSING (MTM)

→ Go to FIG 33-03

37110BGUARD, PROPELLER SHAFT

main51569-B5010iS321,331201711

37110FSHAFT ASSY, PROPELLER, REAR

main37110-B5040iS321201504-201711

main37110-B5050iS331..5F201711

main37110-B5060iS331..4FC201711

4101REAR AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 41-01

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

9004101494

main90041-01494

9004105491

main90041-05491

9451201000

main94512-01000

8 parts on this diagram · 2 diagrams in section
