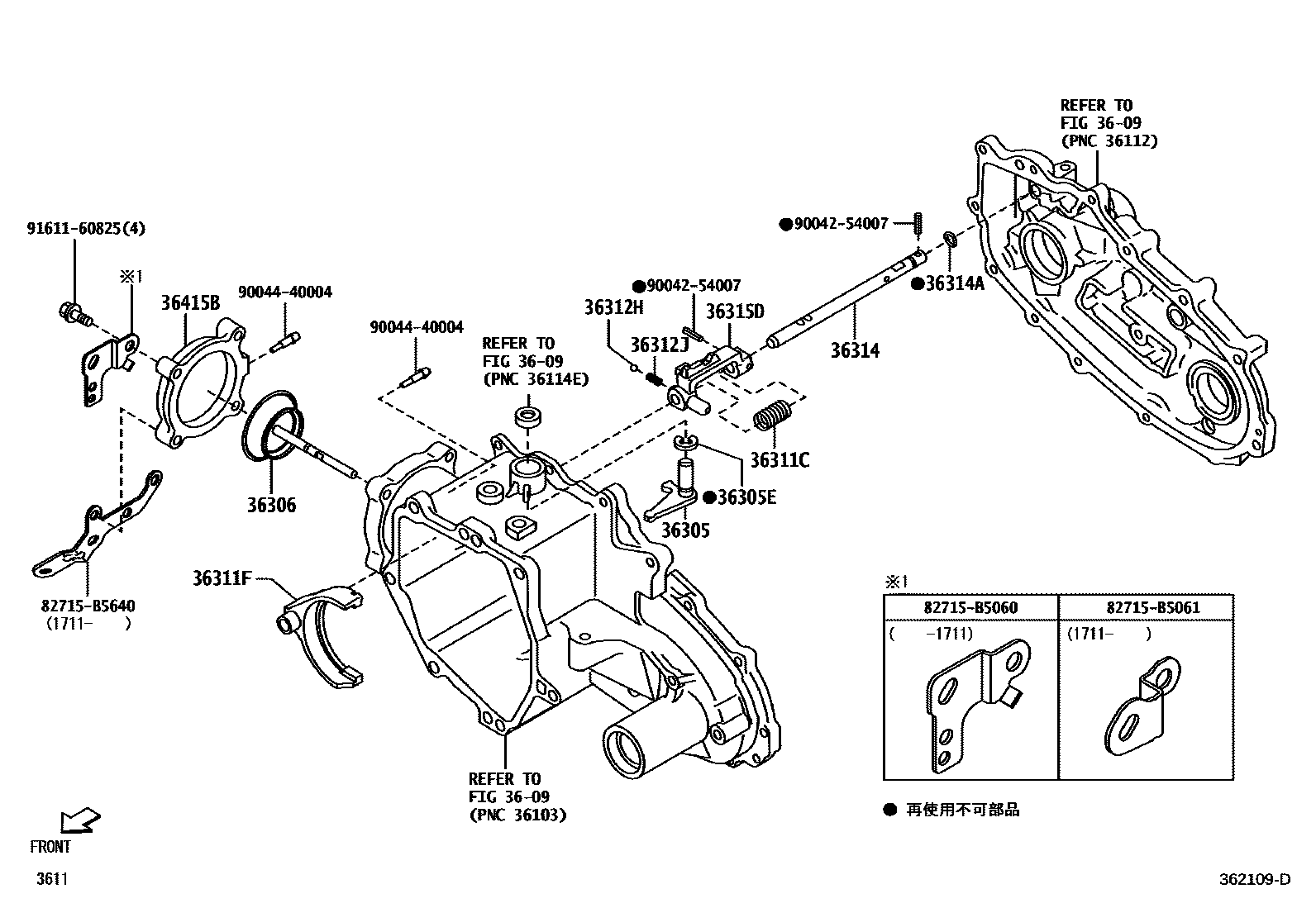

TRANSFER LEVER & SHIFT ROD

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

36305LEVER SUB-ASSY, FRONT DRIVE SHIFT LINK

main36305-87502iS331201711

36305ERING, E(FOR FRONT DRIVE SHIFT LINK LEVER)

main90045-23007iS331..PS1201112-201504

36306SHAFT SUB-ASSY, CONTROL

main33205-B5020iS331..5F201711

main36306-87508iS331..4FC..PS1201112-201504

36311CSPRING, COMPRESION (FOR SHIFT FORK)

main90045-01673iS331201711

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-B5010iS331201711

36312HBALL (FOR TRANSFER GEAR SHIFT FORK NO.2)

main90043-60003iS331..PS1201112-201504

36312JSPRING, COMPRESSION (FOR TRANSFER GEAR SHIFT FORK NO.2)

main90045-01267iS331..PS2201112-201711

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-87507iS331..4FC..PS2201112-201711

main36314-B5010iS331..5F..PS2201112-201711

36314ARING, O (FOR TRANSFER SHIFT FORK SHAFT)

main96711-19009iS331201711

36315DHEAD, TRANSFER GEAR SHIFT, NO.1

main36316-87505iS331201711

36415BCOVER, DIAPHRAGM CYLINDER

main36415-87501iS331201711

82715B5060BRACKET,WIRING HARNESS CLAMP

main82715-B5060

82715B5061BRACKET,WIRING HARNESS CLAMP

main82715-B5061

82715B5640BRACKET,WIRING HARNESS CLAMP

main82715-B5640

9004254007

main90042-54007

9004440004

main90044-40004

9161160825

main91611-60825

18 parts on this diagram · 1 diagram in section
