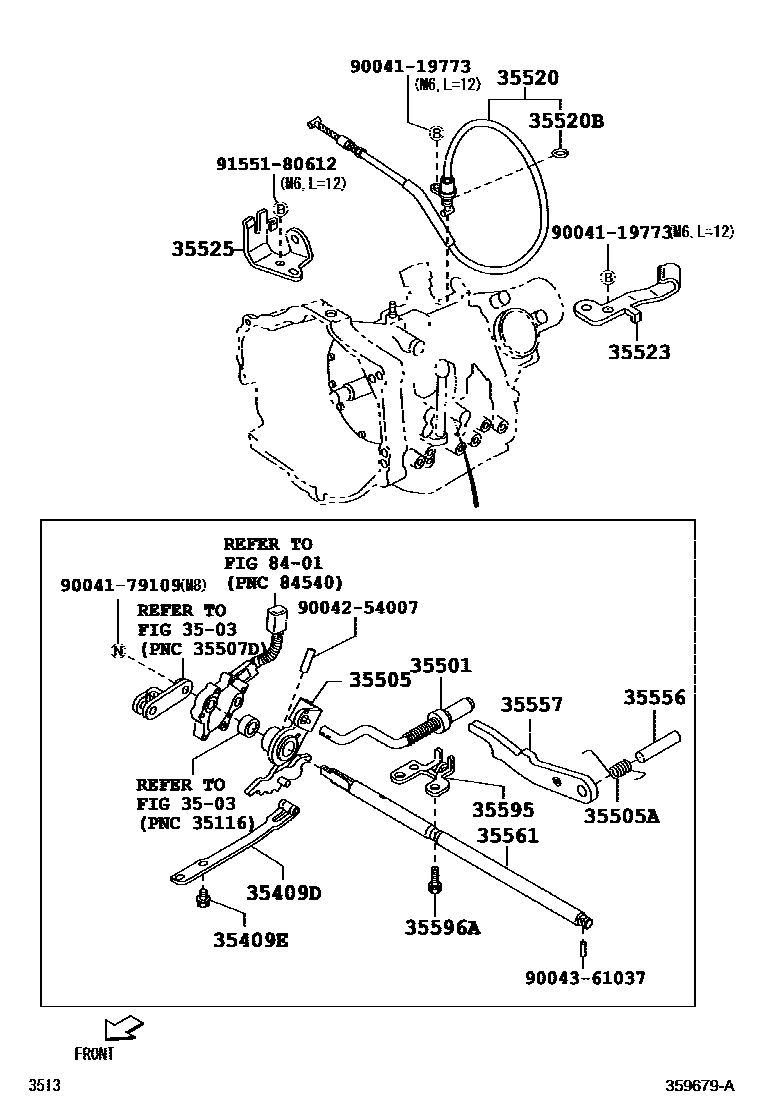

THROTTLE LINK & VALVE LEVER (ATM)

0001 1 0002 1

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-87505iS321,331..4FC..PS1201112-201504

main35409-B1020iS321,331..4FC201711

35409EBOLT(FOR MANUAL DETENT SPRING)

main90041-05291iS321,331..4FC..PS1201112-201504

main90041-05511iS321,331..4FC201711

35501ROD SUB-ASSY, PARKING LOCK

main35501-87503iS321,331..4FC..PS1201112-201504

main35501-B1020iS321,331..4FC201504-201508

main35501-B1021iS321,331..4FC201509-201604

main35501-B5010iS321,331..4FC201605-201711

35505LEVER SUB-ASSY, MANUAL VALVE

main35057-B1010iS321,331..4FC201504-201711

main35505-87505iS321,331..4FC..PS1201112-201504

35505ASPRING, TORSION (FOR MANUAL VALVE LEVER)

main90045-08372iS321,331..4FC..PS1201112-201504

main90045-08419iS321,331..4FC201711

35520CABLE ASSY, THROTTLE

main35520-B5010iS321,331..4FC..PS1201112-201504

35520BRING, O(FOR THROTTLE CABLE)

main90043-01318iS321,331..4FC..PS1201112-201504

35523CLAMP, THROTTLE CABLE

main35523-87501iS321,331..4FC..PS1201112-201504

35525BRACKET, THROTTLE CABLE

main35525-B5020iS321,331..4FC..PS1201112-201504

35556SHAFT, PARKING LOCK PAWL

main35556-87502iS321,331..4FC201711

35557PAWL, PARKING LOCK

main35557-87503iS321,331..4FC..PS1201112-201504

main35557-B1020iS321,331..4FC201711-202003

main35557-B1030iS321,331..4FC202004

35561SHAFT, MANUAL VALVE LEVER

main35561-87504iS321,331..4FC..PS1201112-201504

35595BRACKET, PARKING LOCK PAWL

main35595-87503iS321,331..4FC..PS1201112-201504

main35595-B1020iS321,331..4FC201711

35596ABOLT (FOR PAWL STOPPER PLATE)

main90041-05412×2iS321,331..4FC201711

main90041-19916×3iS321,331..4FC..PS1201112-201504

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004119773

main90041-19773

9004179109

main90041-79109

9004254007

main90042-54007

9004361037

main90043-61037

9155180612

main91551-80612
