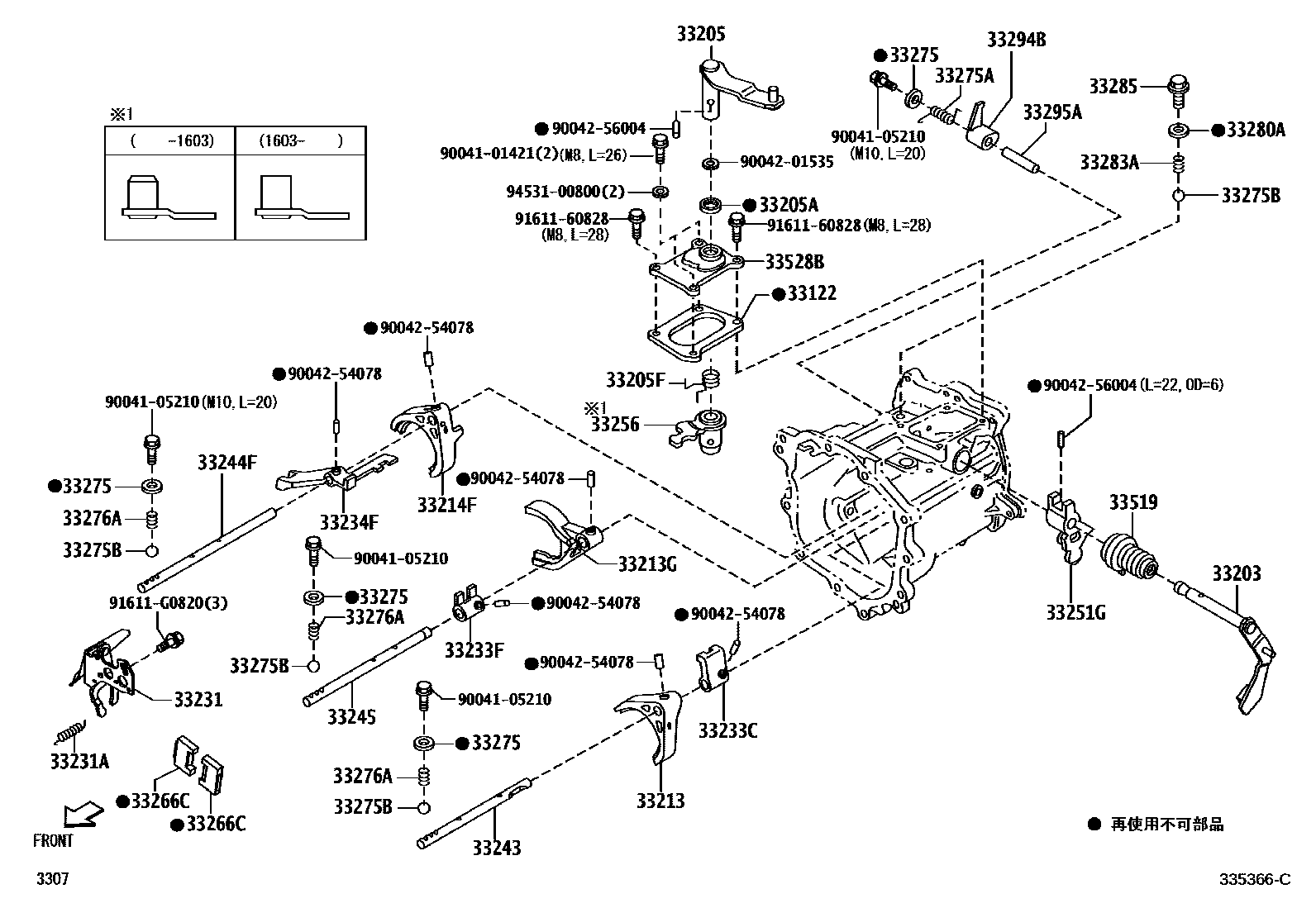

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33122GASKET, MANUAL TRANSMISSION CASE COVER
33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205FSPRING, COMPRESSION(FOR SELECT RETURN)
33213FORK, 1ST & 2ND SHIFT
33213GFORK, GEAR SHIFT, NO.2
33214FFORK, 5TH SHIFT
33231HEAD, REVERSE SHIFT
33231ASPRING, REVERSE SHIFT RESTRICT
33233CHEAD, 1ST & 2ND SHIFT
33233FHEAD, 3RD & 4TH SHIFT
33234FHEAD, REVERSE & 5TH SHIFT
33243SHAFT, 1ST & 2ND SHIFT FORK
33244FSHAFT,5TH & REVERSE SHIFT
33245SHAFT, 3RD & 4TH SHIFT FORK
33251GLEVER, SHIFT, INNER
33256LEVER, SELECT INNER
33266CPLATE, SHIFT INTERLOCK
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
33275BBALL, SHAFT DETENT
33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
33280AGASKET, REVERSE RESTRICT PIN
33283ASPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)
33285HOLDER, REVERSE RESTRICT PIN
33294BCAM, REVERSE RESTRICT
33295ASHAFT, REVERSE RESTRICT
33519BOOT, CONTROL SHAFT DUST
33528BCOVER, CONTROL SHAFT
9004101421
main90041-01421
9004105210
main90041-05210
9004201535
main90042-01535
9004254078
main90042-54078
9004256004
main90042-56004
9161160828
main91611-60828
91611G0820
main91611-G0820
9453100800
main94531-00800
38 parts on this diagram · 2 diagrams in section
