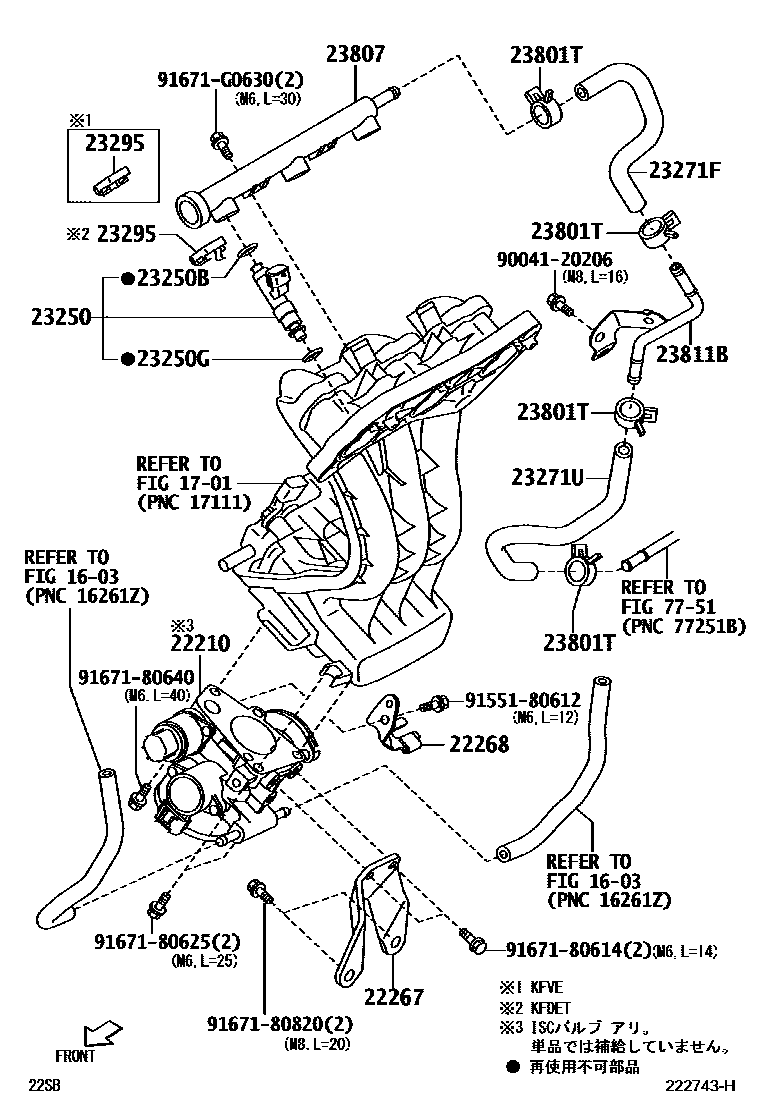

FUEL INJECTION SYSTEM

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

22210BODY ASSY, THROTTLE

main22030-B5010iKFDET,KFV#..S321,331201711

main22210-B2050iKF#..S321,331..PS1201112-201504

22267BRACKET, THROTTLE BODY

main22267-B2020iKF#..S321,331..PS1201112-201504

22268BRACKET, THROTTLE BODY, NO.2

main58179-B5030iKF#..S321,331..PS1201112-201504

23250INJECTOR ASSY, FUEL

main23250-B2011×3iKFVE..S321,331201112-201503

main23250-B2020×3iKFDET..S321,331..PS2201112-201711

main23250-B2050×3iKFVE..S321,331201504-201711

23250BRING, O(FOR FUEL INJECTOR)

main90043-01349×3iKFDET..S321,331..PS1201112-201504

main90043-01353×3iKFVE..S321,331..PS1201112-201504

23250GRING, O, NO.2(FOR FUEL INJECTOR)

main23585-B2040×3iKFVE..S321,331..PS1201112-201504

main90043-01348×3iKFDET,KFV#..S321,331201711

23271FHOSE, FUEL

main23273-B2010iKF#..S321,331..PS1201112-201504

23271UHOSE, FUEL, NO.1

main23271-B2150iKF#..S321,331..PS1201112-201504

23295HOLDER, INJECTOR, NO.1

main23295-B2010×3iKFVE..S321,331201112-201503

main23295-B2020×3iKFDET,KFV#..S321,331201711

23801TCLAMP OR CLIP, FUEL HOSE(FOR EFI)

main90044-67400×4iKF#..S321,331..PS2201112-201711

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-B2040iKFDET,KFV#..S321,331201711

23811BPIPE, FUEL, NO.1

main23811-B2021iKF#..S321,331..PS1201112-201504

main23811-B5020iKF#..S321,331201504-201601

main23811-B5021iKFDET,KFV#..S321,331201711

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9004120206

main90041-20206

9155180612

main91551-80612

9167180614

main91671-80614

9167180625

main91671-80625

9167180640

main91671-80640

9167180820

main91671-80820

91671G0630

main91671-G0630

22 parts on this diagram · 2 diagrams in section
