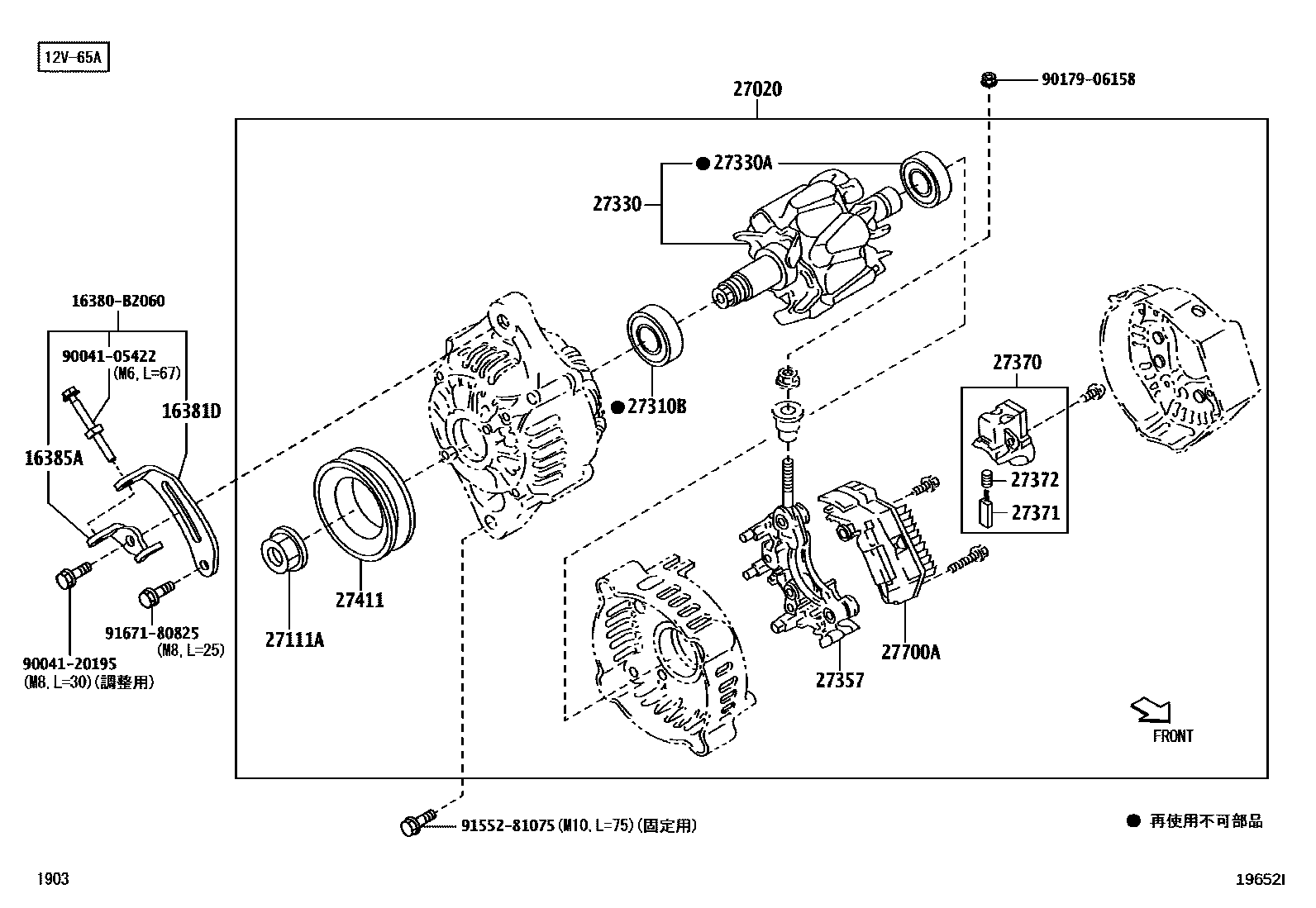

ALTERNATOR

0001 112V-65A 0002 112V 70A

16381DBAR, FAN BELT ADJUSTING

main16381-B2060iKF#..S321,331..PS1201112-201504

main16381-B5010iKFDET,KFV#..S321,331201711

16385ASLIDER, FAN BELT ADJUSTING

main16385-B2030iKFDET,KFV#..S321,331201711

main16385-B2060iKF#..S321,331..PS1201112-201504

27020ALTERNATOR ASSY

main27060-B2021iKF#..S321,331..PS1201112-201504

main27060-B2160iKF#..S321,331201504-201711

main27060-B5020iKFDET,KFV#..S321,331201711

27111ANUT, ALTERNATOR

main90099-05171iKFDET,KFV#..S321,331201711

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main9004C-37006iKF#..S321,331..PS1201112-201504

main9004C-37008iKFDET,KFV#..S321,331201711

27330ROTOR ASSY, ALTERNATOR

main27330-97203iKF#..S321,331..PS1201112-201504

main27330-B5010iKFDET,KFV#..S321,331201711

27330ABEARING(FOR ALTERNATOR ROTOR)

main27791-87701iKF#..S321,331..PS1201112-201504

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-97501iKF#..S321,331..PS1201112-201504

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-87708iKF#..S321,331..PS1201112-201504

main27370-B1020iKFDET,KFV#..S321,331201711

27371BRUSH, ALTERNATOR

main27371-87501×2iKF#..S321,331..PS2201112-201711

27372SPRING, ALTERNATOR BRUSH

main27372-87501×2iKF#..S321,331..PS1201112-201504

27411PULLEY, ALTERNATOR

main27411-87710iKF#..S321,331..PS1201112-201504

main27411-B5010iKFDET,KFV#..S321,331201711

27700AREGULATOR ASSY, GENERATOR

main27700-B2010iKF#..S321,331..PS1201112-201504

main27700-B2070iKF#..S321,331201504-201711

main27700-B5010iKFDET,KFV#..S321,331201711

16380B2060BRACKET ASSY, FAN

main16380-B2060

9004105422

main90041-05422

9004120195

main90041-20195

9017906158

main90179-06158

9155281075

main91552-81075

9167180825

main91671-80825

19 parts on this diagram · 2 diagrams in section
