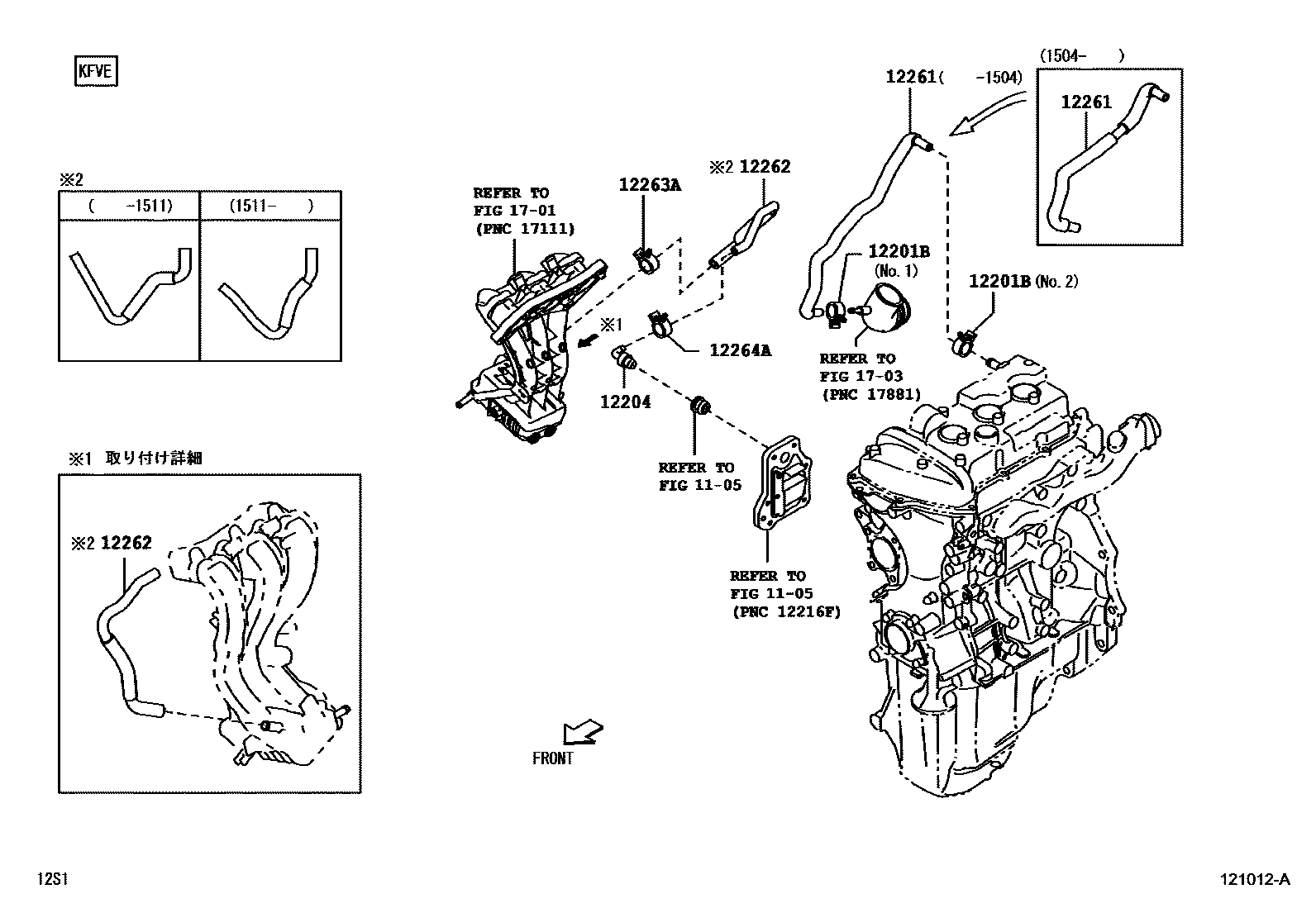

VENTILATION HOSE

0001 1 0002 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

12201BCLIP(FOR VENTILATION TUBE HOSE)

main90044-66036iKFVE..S321,331201711

main90044-67126×2iKFDET..S321,331..PS2201112-201711

main90044-67240iKF#..S321,331..PS2201112-201711

main96136-41801×2iKFDET,KFVET..S321,331201711

12204VALVE SUB-ASSY, VENTILATION

main12204-B2020iKFDET,KFV#..S321,331201711

12261HOSE, VENTILATION

main12261-B2090iKFVE..S321,331..PS1201112-201504

main12261-B2100iKFDET,KFVET..S321,331201711

main12261-B5040iKFVE..S321,331201504-201711

12262HOSE, VENTILATION, NO.2

main12261-B2081iKF#..S321,331..PS2201112-201511

main12261-B5050iKFDET,KFV#..S321,331201711

12263ACLIP(FOR VENTILATION HOSE)

main96137-41901iKFDET,KFV#..S321,331201711

12264ACLIP(FOR VENTILATION HOSE)

main90044-67314iKF#..S321,331..PS1201112-201504

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

9 parts on this diagram · 2 diagrams in section
