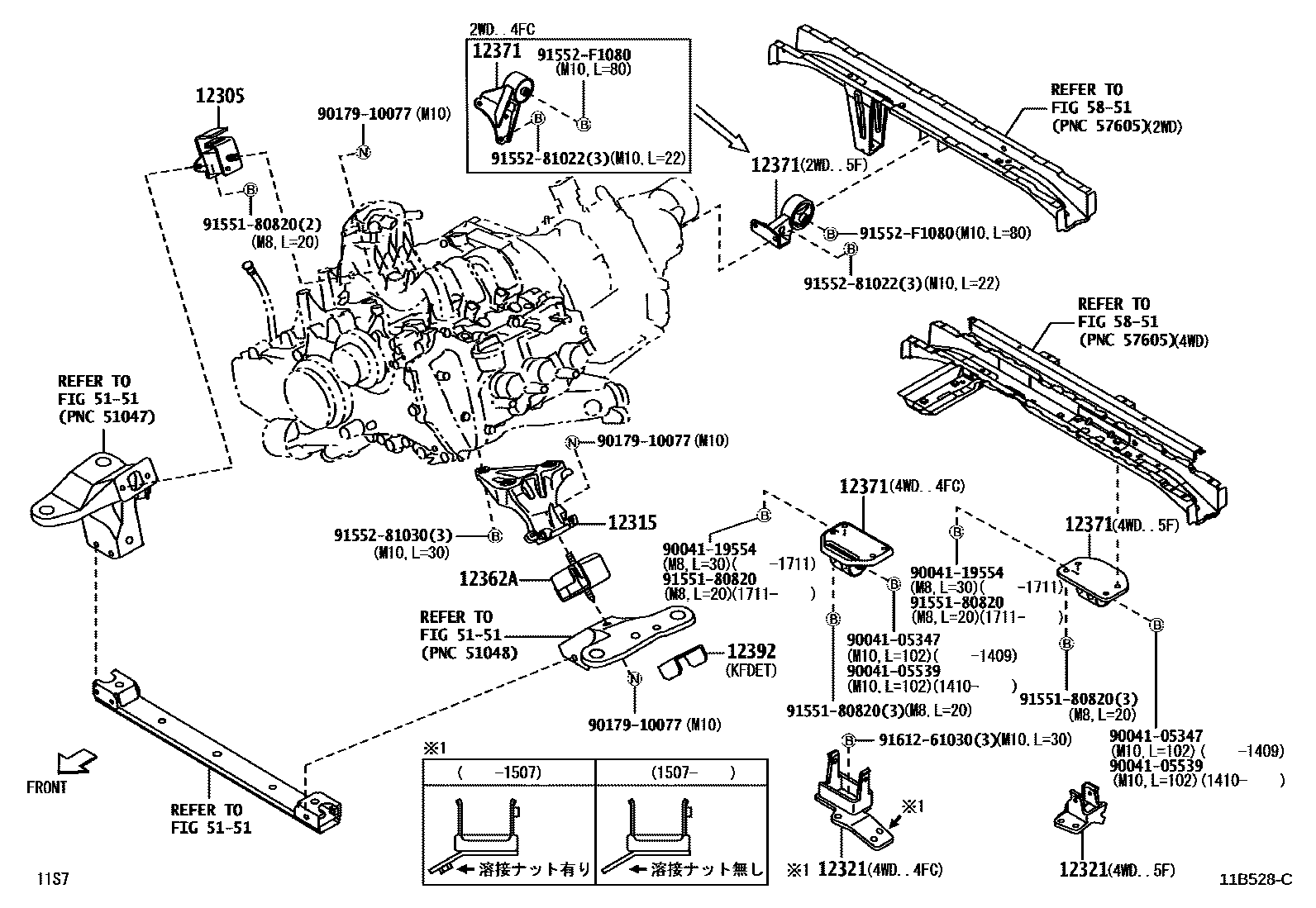

MOUNTING

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12361-B2010iKFDET,KFV#..S321,331201711

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-B2080iKF#..S321,331..PS2201112-201711

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-B5030iKF#..S331..4FC..PS2201112-201507

main12321-B5031iKFDET,KFV#..S331..4FC201711

main12321-B5040iKFDET,KFV#..S331..5F201711

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12362-B2070iKF#..S321,331201112-201304

main12362-B2071iKF#..S321,331..PS2201305-201711

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-B5030iKF#..S331..4FC..PS2201112-201711

main12371-B5040iKF#..S331..5F..PS1201112-201504

main12371-B5050iKFDET,KFV#..S321..5F201711

main12371-B5060iKF#..S321..4FC..PS1201112-201504

main12371-B5100iKF#..S321..4FC201711-202003

main12371-B5101iKFDET,KFV#..S321..4FC202004

12392INSULATOR, ENGINE MOUNTING HEAT, FRONT LH

main12392-B5010iKFDET..S321,331..PS2201112-201711

main12392-B5020iKFDET,KFVET..S321,331201711

5151FRAME

→ Go to FIG 51-51

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

9004105347

main90041-05347

9004105539

main90041-05539

9004119554

main90041-19554

9017910077

main90179-10077

9155180820

main91551-80820

9155281022

main91552-81022

9155281030

main91552-81030

91552F1080

main91552-F1080

9161261030

main91612-61030

17 parts on this diagram · 1 diagram in section
