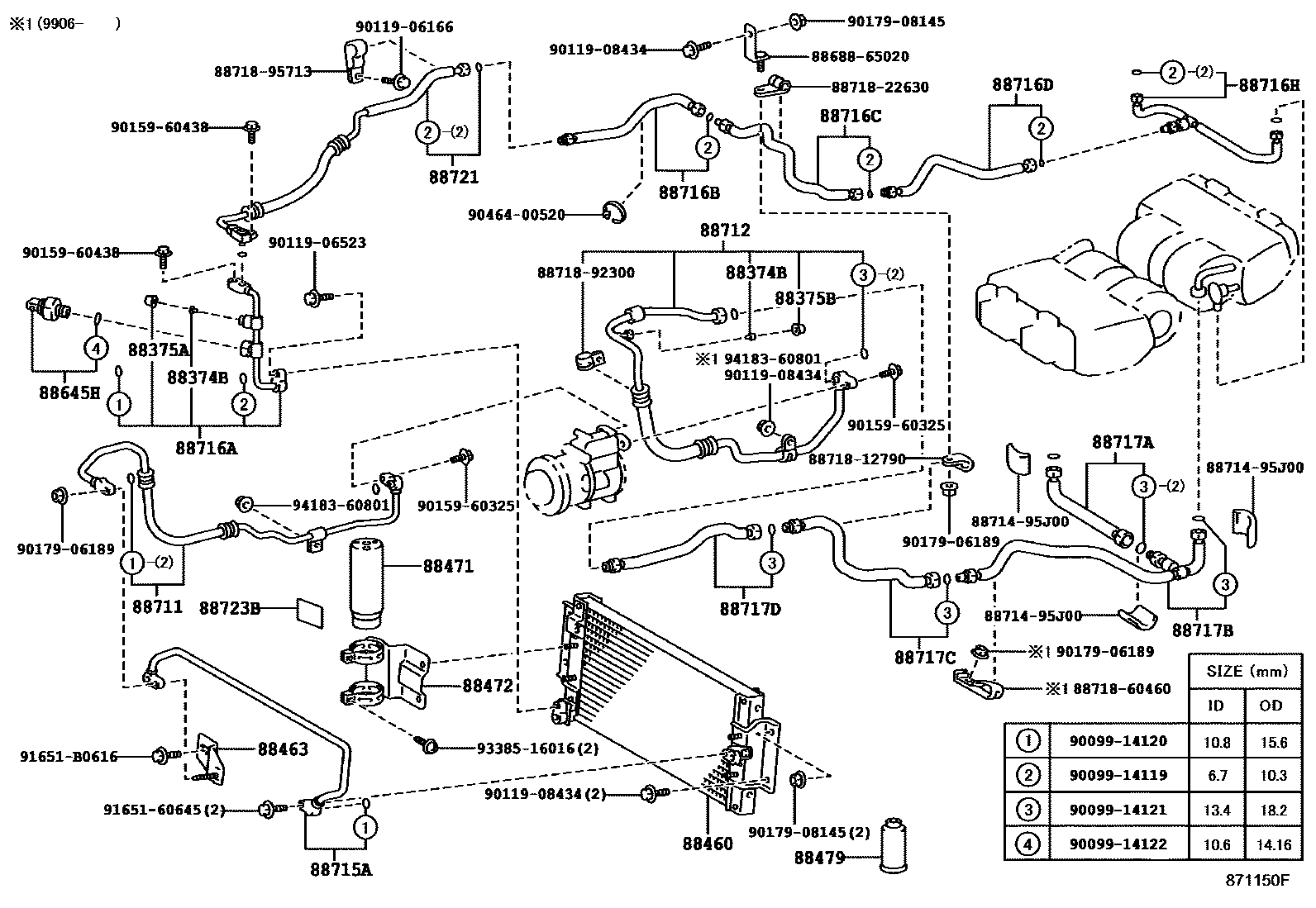

HEATING & AIR CONDITIONING - COOLER PIPING

88374BVALVE, SERVICE, NO.1

main88374-30010iBXD20199601

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iBXD20199601

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iBXD20199906

88460CONDENSER ASSY, COOLER

main88460-65020iBXD20199601

88463BRACKET, COOLER CONDENSER, NO.1

main88463-65010iBXD20199601

88471TANK, RECEIVER AIR CONDITIONER

main88471-50020iBXD20199601

88472BRACKET, RECEIVER TANK, NO.1

main88473-65010iBXD20199601

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02007×3iBXD20199601-199912

main90986-02008×3iBXD20199912

88645HSWITCH, PRESSURE NO.1

main88645-34010iBXD20199601

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-65010iBXD20199601-199906

main88711-65040iBXD20199906

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-65010iBXD20199601-199906

main88712-65020iBXD20199906

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-65010iBXD20199601

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-65090iBXD20199601

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-65010iBXD20199601

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-65060iBXD20199601-199906

main88716-65171iBXD20199906

88716DPIPE, COOLER REFRIGERANT LIQUID, D

main88716-65080iBXD20199601

88716HPIPE, COOLER REFRIGERANT LIQUID, H

main88716-65070iBXD20199601

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-65050iBXD20199601

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88717-65060iBXD20199601-199906

main88717-65120iBXD20199906

88717CPIPE, COOLER REFRIGERANT SUCTION, C

main88727-65040iBXD20199601-199906

main88727-65101iBXD20199906

88717DPIPE, COOLER REFRIGERANT SUCTION, D

main88717-65010iBXD20199601

88721PIPE, COOLER REFRIGERANT SUCTION, NO.5

main88721-65010iBXD20199601

88723BLABEL, COOLER SERVICE CAUTION

main88723-20030iBXD20199601

8868865020BRACKET, COOLER DIAPHRAGM

main88688-65020

8871495J00HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-95J00

8871812790PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12790

8871822630PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22630

8871860460PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-60460

8871892300PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-92300

8871895713PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95713

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009914122

main90099-14122

9011906166

main90119-06166

9011906523

main90119-06523

9011908434

main90119-08434

9015960325

main90159-60325

9015960438

main90159-60438

9017906189

main90179-06189

9017908145

main90179-08145

9046400520

main90464-00520

9165160645

main91651-60645

91651B0616

main91651-B0616

9338516016

main93385-16016

9418360801

main94183-60801

46 parts on this diagram · 1 diagram in section
