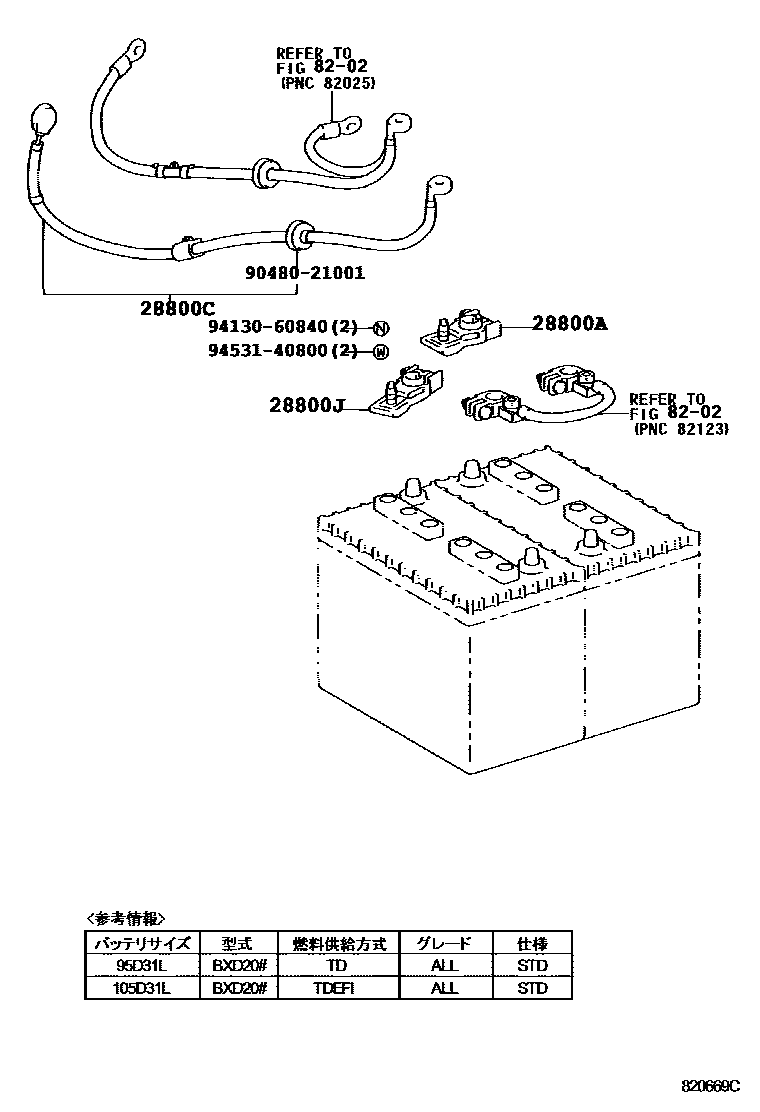

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05037i15B#..BXD20199601

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82021-65040i15B#..BXD20199601

28800JTERMINAL, BATTERY NEGATIVE

main90982-06024i15B#..BXD20199601

8202WIRING & CLAMP

→ Go to FIG 82-02

9048021001

main90480-21001

9413060840

main94130-60840

9453140800

main94531-40800

7 parts on this diagram · 1 diagram in section
