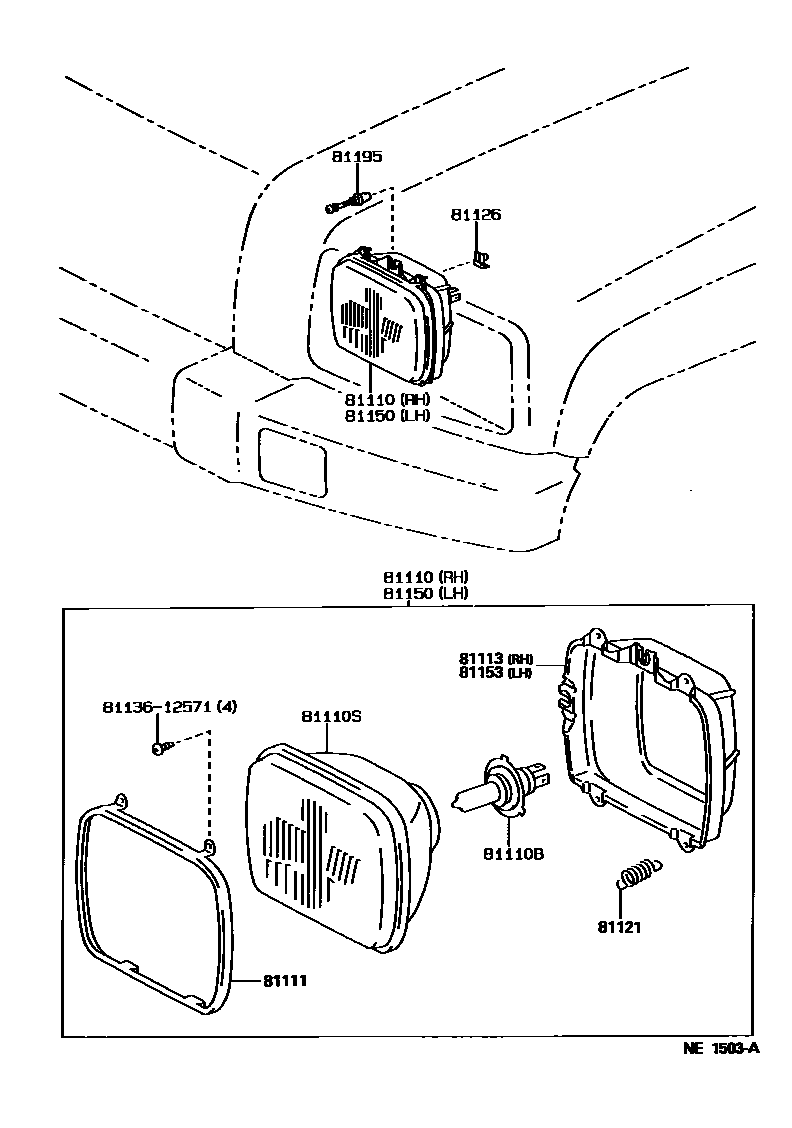

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-65040iBXD20199601-199703

main81110-65060iBXD20199703

81110BBULB(FOR HEADLAMP, NO.1)

main90981-17020×2iBXD20199601

81110SSEALED BEAM UNIT, NO.1

main90981-09002×2iBXD20199601-199703

main90981-09005×2iBXD20199703

81111RING, SEALED BEAM RETAINING

main81111-65040×2iBXD20199601

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-16220iBXD20199601

81121SPRING, HEADLAMP TENSION

main81121-14670×2iBXD20199601

81126PLATE, HEADLAMP

main81124-89101×8iBXD20199601

81150HEADLAMP ASSY, LH

main81150-65010iBXD20199601-199703

main81150-65030iBXD20199703

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-16220iBXD20199601

81195SCREW, HEADLAMP

main81195-89101×4iBXD20199601

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

11 parts on this diagram · 1 diagram in section
