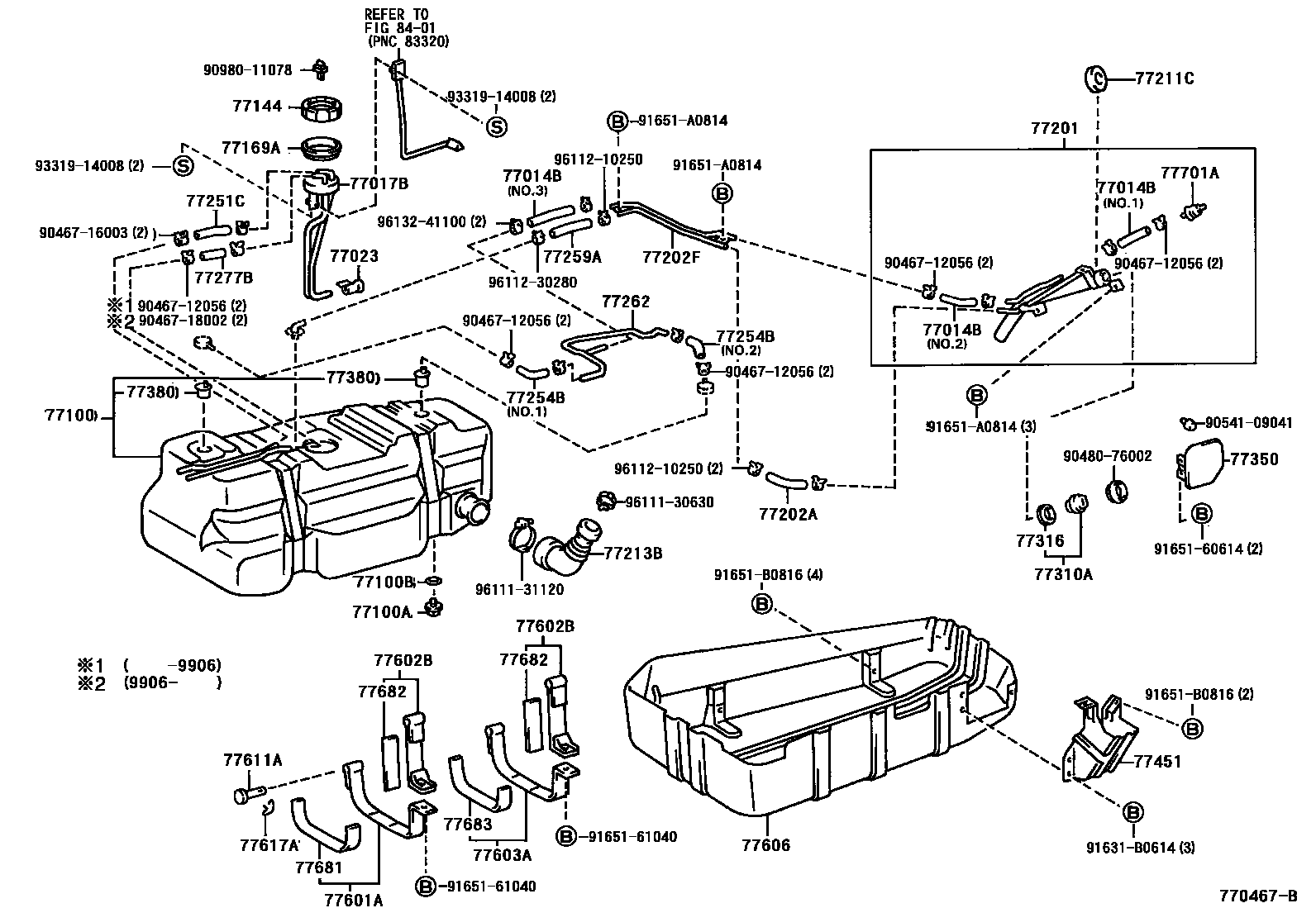

FUEL TANK & TUBE

0001 1 0002 1 0003 1

77014BHOSE, FUEL (FOR FUEL TANK BREATHER TUBE)

main95333-06010iBXD20199601-199906

main95333-06020iBXD20199601-199906

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-65010iBXD20199601-199906

main77017-65020iBXD20199906

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-36010iBXD20199601-199906

main77023-60030iBXD20199906

77100TANK ASSY, FUEL

main77001-65060iBXD20199601-199906

main77001-65070iBXD20199906

77100APLUG(FOR FUEL TANK)

main90105-12116iBXD20199601

77100BGASKET(FOR FUEL TANK)

main90430-12245iBXD20199601

77144RETAINER, FUEL PUMP GAUGE

main77144-14040iBXD20199601

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14030iBXD20199601

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-65040iBXD20199601

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main95311-15024iBXD20199601

77202FTUBE, FUEL, NO.1 (FOR BREATHER TUBE)

main77203-65020iBXD20199601

77211CPAD, FUEL INLET PIPE

main62561-65020iBXD20199809

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-65030iBXD20199601

77251CHOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)

main95332-10020iBXD20199601-199906

main95332-12012iBXD20199906

77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)

main95333-06020iBXD20199906

77259AHOSE, FUEL(FOR BREATHER TUBE)

main77259-65010iBXD20199601

77262TUBE, FUEL EMISSION, NO.2

main77261-65010iBXD20199601

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main95333-06010iBXD20199601-199906

main95333-08010iBXD20199906

77310ACAP ASSY, FUEL TANK

main77310-12150iBXD20199808

main77310-35110iBXD20199601-199808

77316GASKET, FUEL TANK CAP

main77316-16010iBXD20199601

77350LID ASSY, FUEL FILLER OPENING

main77350-65010iBXD20199601

77380VALVE ASSY, FUEL CUT OFF

main77380-26010×2iBXD20199601

77451PROTECTOR, FUEL INLET HOSE

main77451-65010iBXD20199601

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-65030iBXD20199601

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-65020×2iBXD20199601

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77603-65020iBXD20199601

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-65010iBXD20199601

77611APIN (FOR FUEL TANK BAND)

main90240-08118×4iBXD20199601

77617AUNION, AUXILIARY FUEL BAND

main77617-12010×4iBXD20199601

77681SEAT, FUEL TANK BAND, RH

main77681-65010iBXD20199601

77682SEAT, FUEL TANK BAND, LH

main77682-65010×2iBXD20199601

77683SEAT, FUEL TANK BAND, NO.3

main77683-65010iBXD20199601

77701AHOSE, FUEL, NO.1 (FOR BREATHER VALVE)

main90917-10082iBXD20199601

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046712056

main90467-12056

9046716003

main90467-16003

9046718002

main90467-18002

9048076002

main90480-76002

9054109041

main90541-09041

9098011078

main90980-11078

91631B0614

main91631-B0614

9165160614

main91651-60614

9165161040

main91651-61040

91651A0814

main91651-A0814

91651B0816

main91651-B0816

9331914008

main93319-14008

9611130630

main96111-30630

9611131120

main96111-31120

9611210250

main96112-10250

9611230280

main96112-30280

9613241100

main96132-41100

51 parts on this diagram · 3 diagrams in section
