SIDE MEMBER
52167DBRACKET, REAR BUMPER EXTENSION MOUNTING, RH
52168DBRACKET, REAR BUMPER EXTENSION MOUNTING, LH
57827REINFORCEMENT, BACK DOOR SIDE STOPPER, RH
57828REINFORCEMENT, BACK DOOR SIDE STOPPER, LH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
61031CEXTENSION SUB-ASSY, QUARTER PANEL, REAR RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61214BRAIL, ROOF SIDE, OUTER NO.2 LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61233ARAIL, ROOF SIDE, INNER NO.2 RH
61234ARAIL, ROOF SIDE, INNER NO.2 LH
61235ARAIL, ROOF SIDE, INNER NO.3 RH
61236ARAIL, ROOF SIDE, INNER NO.3 LH
61263BCHANNEL, ROOF DRIP SIDE, FRONT RH
61264ACHANNEL, ROOF DRIP SIDE, FRONT LH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61268ACHANNEL, ROOF DRIP SIDE, REAR LH
61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH
61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61431PANEL, ROCKER, OUTER REAR RH
61432PANEL, ROCKER, OUTER REAR LH
61452PANEL, ROCKER INNER, FRONT RH
61453APANEL, ROCKER INNER, REAR RH
61462PANEL, ROCKER, INNER FRONT LH
61463APANEL, ROCKER, INNER REAR LH
61491ABRACKET, SIDE PANEL STRENGTH, NO.1
61491BBRACKET, SIDE PANEL STRENGTH, NO.1 LH
61492ABRACKET, SIDE PANEL STRENGTH, NO.2 RH
61492BBRACKET, SIDE PANEL STRENGTH, NO.2 LH
61493ABRACKET, SIDE PANEL STRENGTH, NO.3 RH
61493BBRACKET, SIDE PANEL STRENGTH, NO.3 LH
61567PLATE, QUARTER PANEL END, RH
61568PLATE, QUARTER PANEL END, LH
61608CPILLAR SUB-ASSY, QUARTER LOCK, INNER LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61623AEXTENSION, QUARTER PANEL, OUTER RH
61624AEXTENSION, QUARTER PANEL, OUTER LH
61625EEXTENSION, QUARTER PANEL, INNER REAR RH
61626EEXTENSION, QUARTER PANEL, INNER REAR LH
61627EEXTENSION, QUARTER PANEL, REAR LOWER RH
61628DEXTENSION, QUARTER PANEL, REAR LOWER LH
61635EEXTENSION, QUARTER WHEEL HOUSE, RH
61636EEXTENSION, QUARTER WHEEL HOUSE, LH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61661AEXTENSION, QUARTER PANEL TO UPPER BACK, RH
61662CEXTENSION, QUARTER PANEL TO UPPER BACK, LH
61704HPANEL SUB-ASSY, QUARTER, INNER LH
61713BREINFORCE, ROOF SIDE, OUTER RH
61713CREINFORCEMENT, ROOF SIDE, OUTER LH
61759ABRACKET, ROOF SIDE REINFORCEMENT
61759CBRACKET, ROOF SIDE REINFORCEMENT
62656BCOVER, QUARTER PANEL INNER, RH
62657BCOVER, QUARTER PANEL INNER, LH
63216DCHANNEL, ROOF DRIP CORNER, RH
63217MCHANNEL, ROOF DRIP CORNER, LH
63761BRACKET, RACK LADDER, NO.1
63762BRACKET, RACK LADDER, NO.2
67482DPACKING, DOOR LOWER FRAME
67841COVER, QUARTER SERVICE HOLE, NO.1 RH
68952ARETAINER, BACK DOOR STAY
68952BRETAINER, BACK DOOR STAY
9033320001
main90333-20001
9165161020
main91651-61020
9165260616
main91652-60616
9331525014
main93315-25014

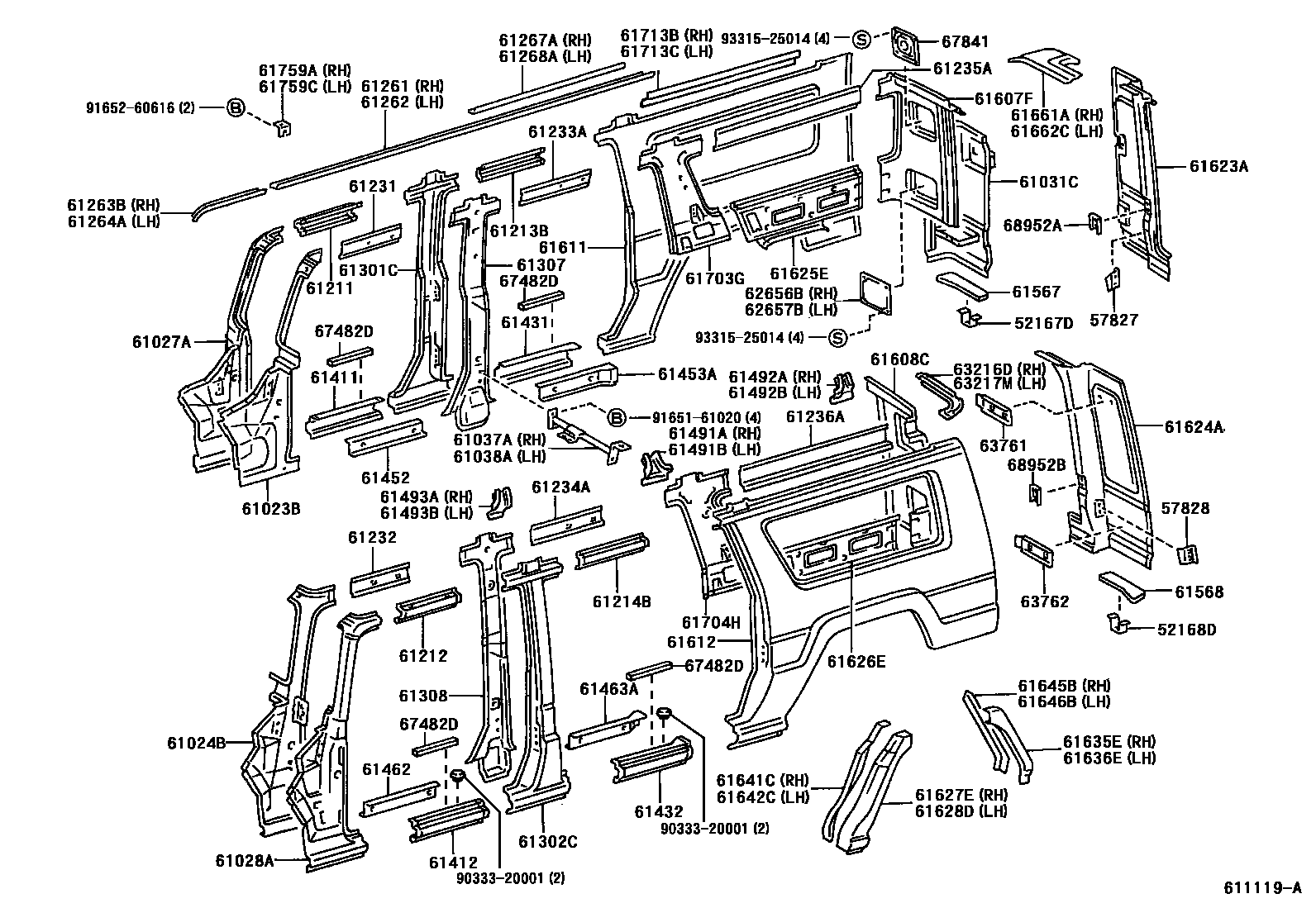

85 parts on this diagram · 1 diagram in section
