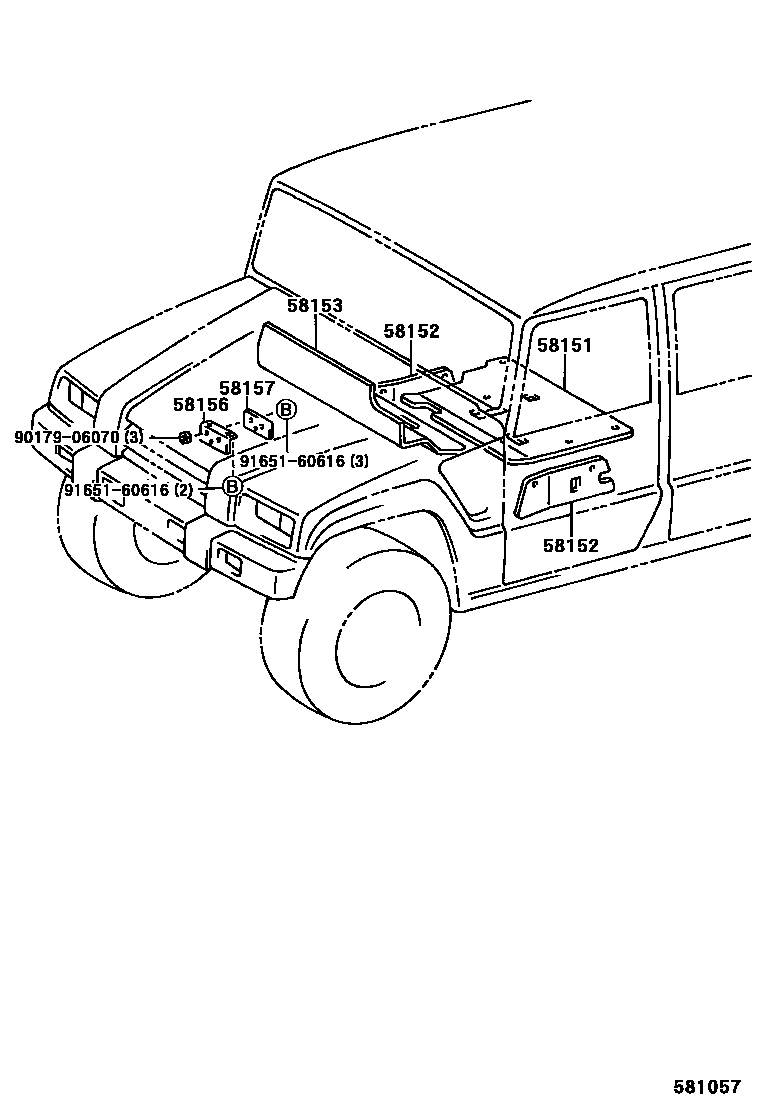

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-65030iBXD20199601

58152INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2

main58152-65020iBXD20199601-199610

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-65020iBXD20199601-200008

main58153-65021iBXD20200008

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-65010iBXD20199906-200008

main58156-65011iBXD20200008

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-65010iBXD20199906

9017906070

main90179-06070

9165160616

main91651-60616

7 parts on this diagram · 1 diagram in section
