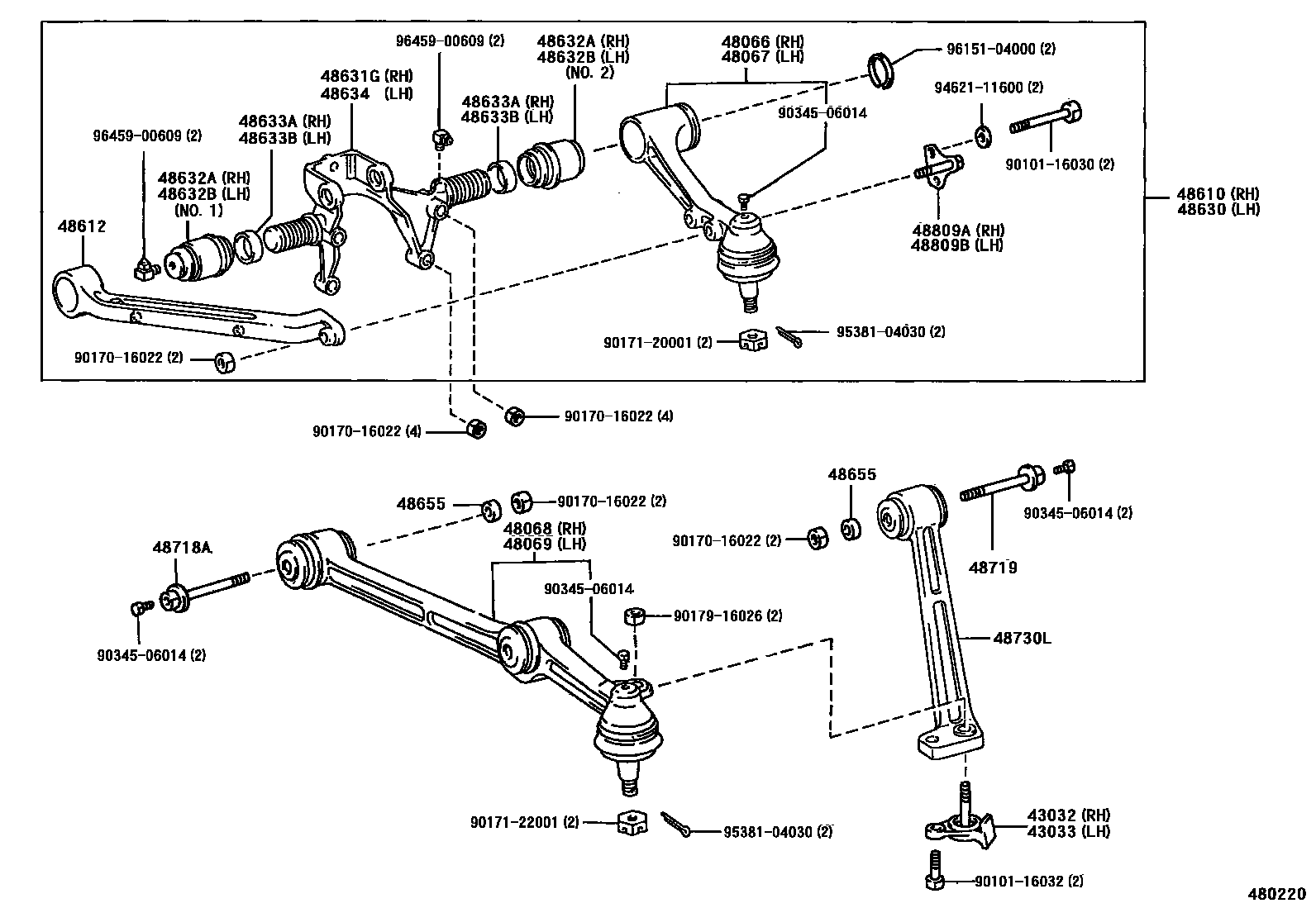

FRONT AXLE ARM & STEERING KNUCKLE

43032STOPPER SUB-ASSY, STEERING KNUCKLE, RH

main43032-65010iBXD20199601

43033STOPPER SUB-ASSY, STEERING KNUCKLE, LH

main43033-65010iBXD20199601

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48601-65010iBXD20199601

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48602-65010iBXD20199601

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48620-65010iBXD20199601

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48640-65010iBXD20199601

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-69035iBXD20199601

48612ARM, UPR NO.2

main48612-65010×2iBXD20199601

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-69035iBXD20199601

48631GSHAFT, FRONT UPPER ARM, NO.2 RH

main48631-65010iBXD20199601

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-65010iBXD20199601

main48632-65020iBXD20199601

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-65010iBXD20199601

main48632-65020iBXD20199601

48633ASEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, RH

main48633-36010×2iBXD20199601

48633BSEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, LH

main48633-36010×2iBXD20199601

48634SHAFT, FRONT UPPER ARM, NO.2 LH

main48634-65010iBXD20199601

48655BUSH, LOWER ARM, NO.2

main48655-65010×4iBXD20199601

48718ASHAFT, FRONT SUSPENSION LOWER ARM, NO.1

main48718-65010×2iBXD20199601

48719SHAFT, FRONT SUSPENSION LOWER ARM, NO.2

main48719-65010×2iBXD20199601

48730LARM ASSY, REAR SUSPENSION, NO.2

main48730-65010×2iBXD20199601

48809ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-36020iBXD20199601

48809BBRACKET, FRONT STABILIZER, NO.1 LH

main48809-36030iBXD20199601

9010116030

main90101-16030

9010116032

main90101-16032

9017016022

main90170-16022

9017120001

main90171-20001

9017122001

main90171-22001

9017916026

main90179-16026

9034506014

main90345-06014

9462111600

main94621-11600

9538104030

main95381-04030

9615104000

main96151-04000

9645900609

main96459-00609

32 parts on this diagram · 1 diagram in section
