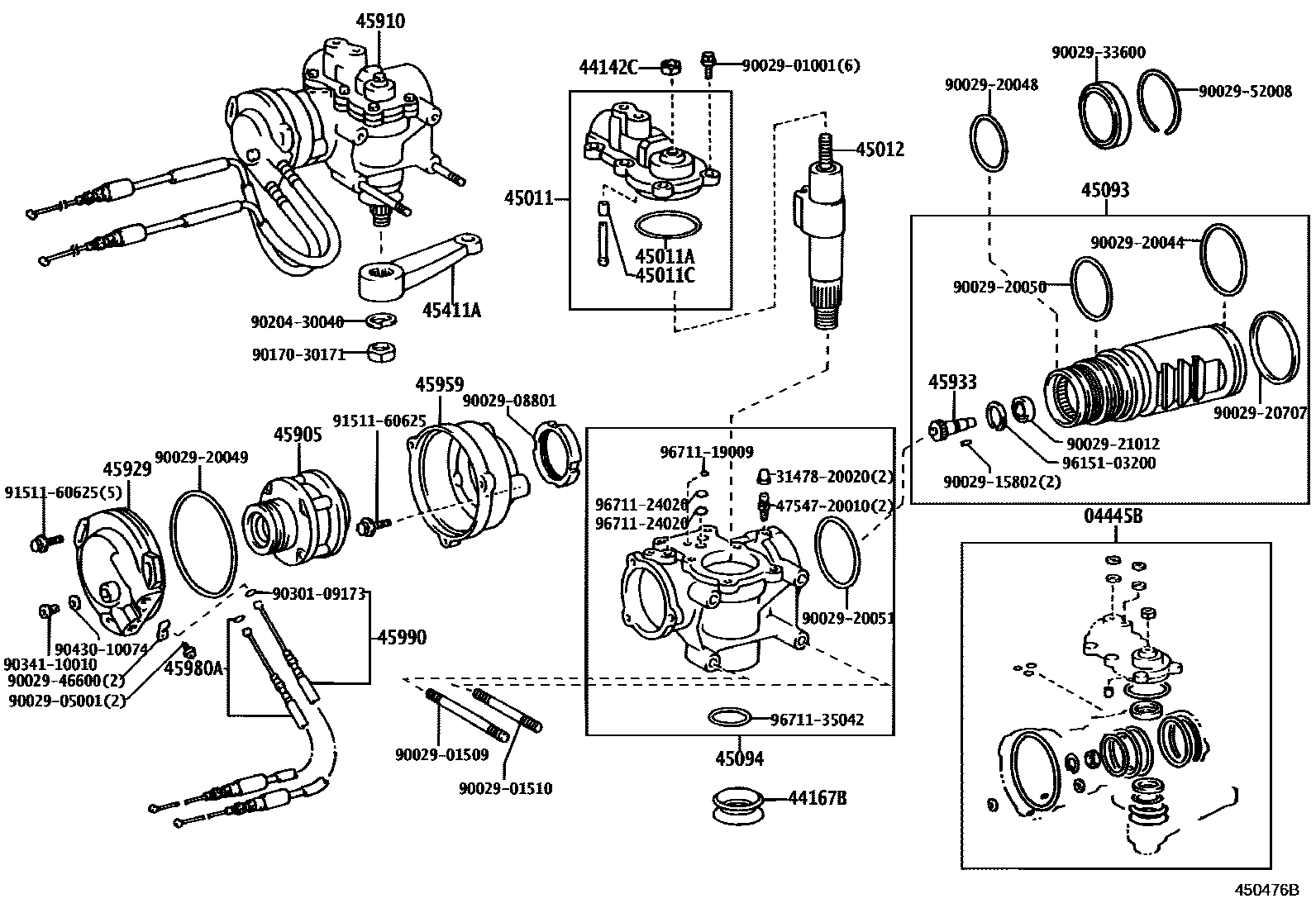

REAR STEERING GEAR (4WS)

0001 1 0002 1

04445BGASKET KIT, REAR STEERING GEAR

main04445-65020iBXD20199601

44142CNUT, LOCK(FOR REAR STEERING GEAR SIDE COVER SUB-ASSY)

main44142-37010iBXD20199601

44167BCOVER(FOR HOUSING SUB-ASSY, REAR STEERING GEAR)

main44167-37010iBXD20199601

45011COVER SUB-ASSY, REAR STEERING GEAR SIDE

main45011-65010iBXD20199712

main45011-65011iBXD20199601-199712

45011ARING, O(FOR COVER SUB-ASSY, REAR STEERING GEAR SIDE)

main90029-20045iBXD20199601

45011CBUSH(FOR COVER SUB-ASSY, REAR STEERING GEAR SIDE)

main90029-38701iBXD20199601

45012SHAFT SUB-ASSY, REAR STEERING

main45012-65010iBXD20199601

45093PISTON SUB-ASSY, REAR STEERING POWER CYLINDER

main45093-65010iBXD20199601

45094HOUSING SUB-ASSY, REAR STEERING GEAR

main45094-65011iBXD20199601

45411AARM, PITMAN

main45411-65070iBXD20199601

main45411-65080iBXD20199601

main45411-65090iBXD20199601

main45411-65100iBXD20199601

main45411-65110iBXD20199601

main45411-65120iBXD20199601

main45411-65130iBXD20199601

45905WHEEL SUB-ASSY, REAR STEERING WORM CONTROL

main45905-65010iBXD20199601

45910GEAR ASSY, REAR STEERING

main45910-65010iBXD20199601

45929CAP, REAR STEERING RETURN RACK GUIDE SPRING

main45929-65010iBXD20199601

45933SHAFT, REAR STEERING SENSOR DRIVE GEAR

main45933-65010iBXD20199601

45959CAP, REAR STEERING RETURN LUCK GUIDE SPRING

main45959-65010iBXD20199601

45980ACABLE ASSY, REAR STEERING CONTROL, LH

main45980-65010iBXD20199601

45990CABLE ASSY, REAR STEERING CONTROL, NO.2

main45990-65010iBXD20199601

3147820020CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-20020

4754720010PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-20010

9002901001

main90029-01001

9002901509

main90029-01509

9002901510

main90029-01510

9002905001

main90029-05001

9002908801

main90029-08801

9002915802

main90029-15802

9002920044

main90029-20044

9002920048

main90029-20048

9002920049

main90029-20049

9002920050

main90029-20050

9002920051

main90029-20051

9002920707

main90029-20707

9002921012

main90029-21012

9002933600

main90029-33600

9002946600

main90029-46600

9002952008

main90029-52008

9017030171

main90170-30171

9020430040

main90204-30040

9030109173

main90301-09173

9034110010

main90341-10010

9043010074

main90430-10074

9151160625

main91511-60625

9615103200

main96151-03200

9671119009

main96711-19009

9671124020

main96711-24020

9671135042

main96711-35042

45 parts on this diagram · 2 diagrams in section
