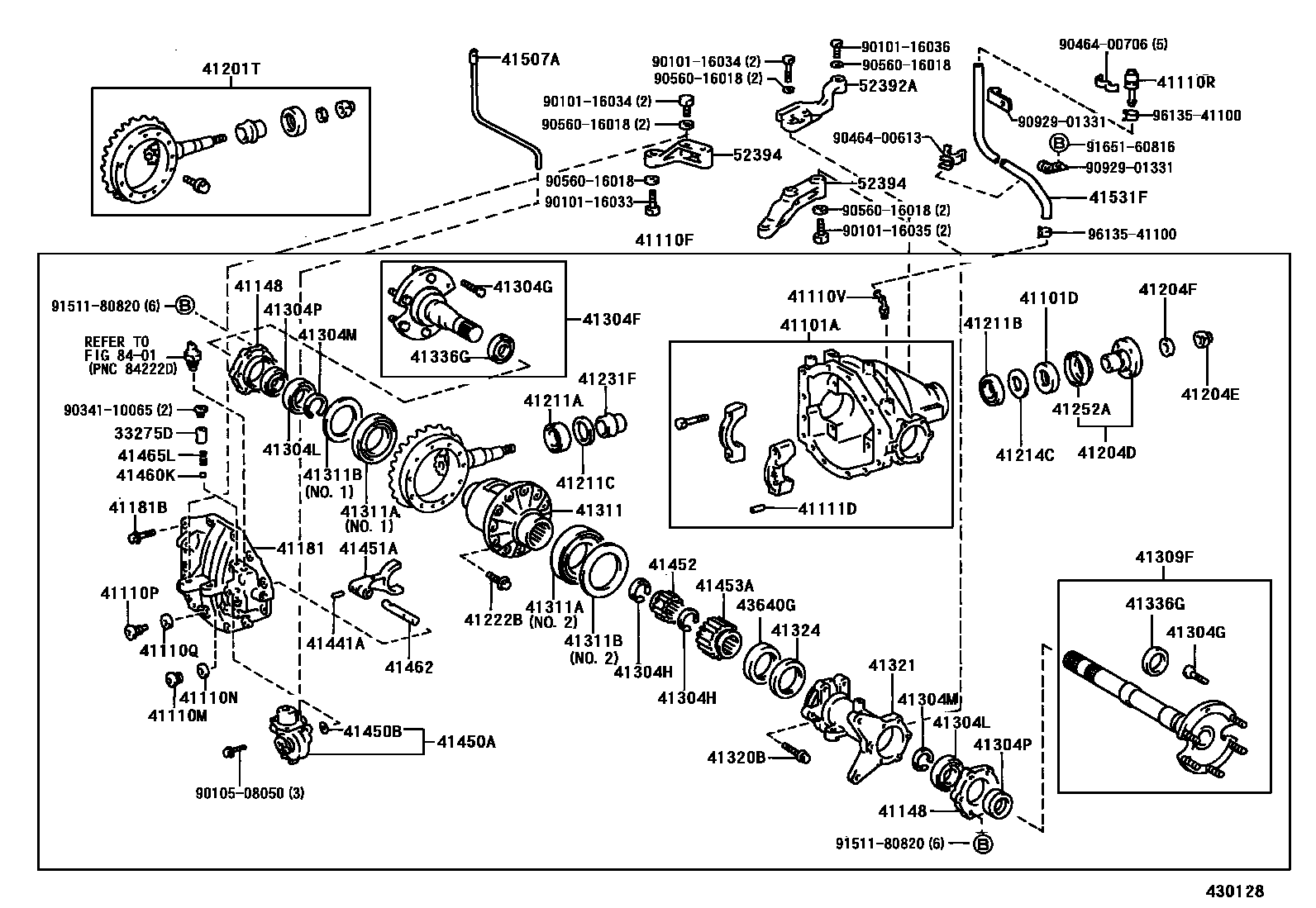

FRONT AXLE HOUSING & DIFFERENTIAL
33275DSEAT, SHIFT DETENT BALL SPRING
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
41110MPLUG, FRONT DIFFERENTIAL FILLER
41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG
41110PPLUG, FRONT DIFFERENTIAL DRAIN
41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG
41110RPLUG, BREATHER (FOR FRONT DIFFERENTIAL)
41110VUNION (FOR FRONT DIFFERENTIAL)
41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)
41148RETAINER, DIFFERENTIAL BEARING
41181COVER, FRONT DIFFERENTIAL CARRIER
41181BBOLT (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING)
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
41204FWASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE FRONT)
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211CGEAR, DIFFERENTIAL RING
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41304GBOLT, SERRATION (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)
41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)
41304PSEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41309FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH
41311CASE, FRONT DIFFERENTIAL
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
41320BBOLT (FOR FRONT DIFFERENTIAL TUBE)
41321TUBE, DIFFERENTIAL EXTENSION FLANGE
41324GUIDE, FRONT DIFFERENTIAL OIL SEAL
41336GCOVER, DUST(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT)
41441APIN, SLOTTED SPRING (FOR DIFFERENTIAL SHIFT FORK)
41450AACTUATOR, DIFFERENTIAL LOCK SHIFT, NO.2
41450BRING, O (FOR DIFFERENTIAL LOCK SHAFT RETAINER)
41451AFORK, FRONT DIFFERENTIAL LOCK SHIFT
41452PIECE, DIFFERENTIAL LOCK SPLINE
41453ASLEEVE, FRONT DIFFERENTIAL LOCK
41460KBALL (FOR FRONT DIFFERENTIAL LOCK CYLINDER)
41462SHAFT, FRONT DIFFERENTIAL LOCK SHIFT FORK
41465LSPRING, COMPRESSION(FOR FRONT DIFFERENTIAL LOCK RETAINER)
41507ATUBE, FRONT DIFFERENTIAL LOCK ACTUATOR BREATHER, NO.2
41531FHOSE, FRONT DIFFERENTIAL VACUUM, NO.1
43640GSEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER)
52392ASUPPORT, FRONT DIFFERENTIAL, NO.1
52394SUPPORT, FRONT DIFFERENTIAL, NO.3
8401SWITCH & RELAY & COMPUTER
9010116033
main90101-16033
9010116034
main90101-16034
9010116035
main90101-16035
9010116036
main90101-16036
9010508050
main90105-08050
9034110065
main90341-10065
9046400613
main90464-00613
9046400706
main90464-00706
9056016018
main90560-16018
9092901331
main90929-01331
9151180820
main91511-80820
9165160816
main91651-60816
9613541100
main96135-41100
67 parts on this diagram · 1 diagram in section
