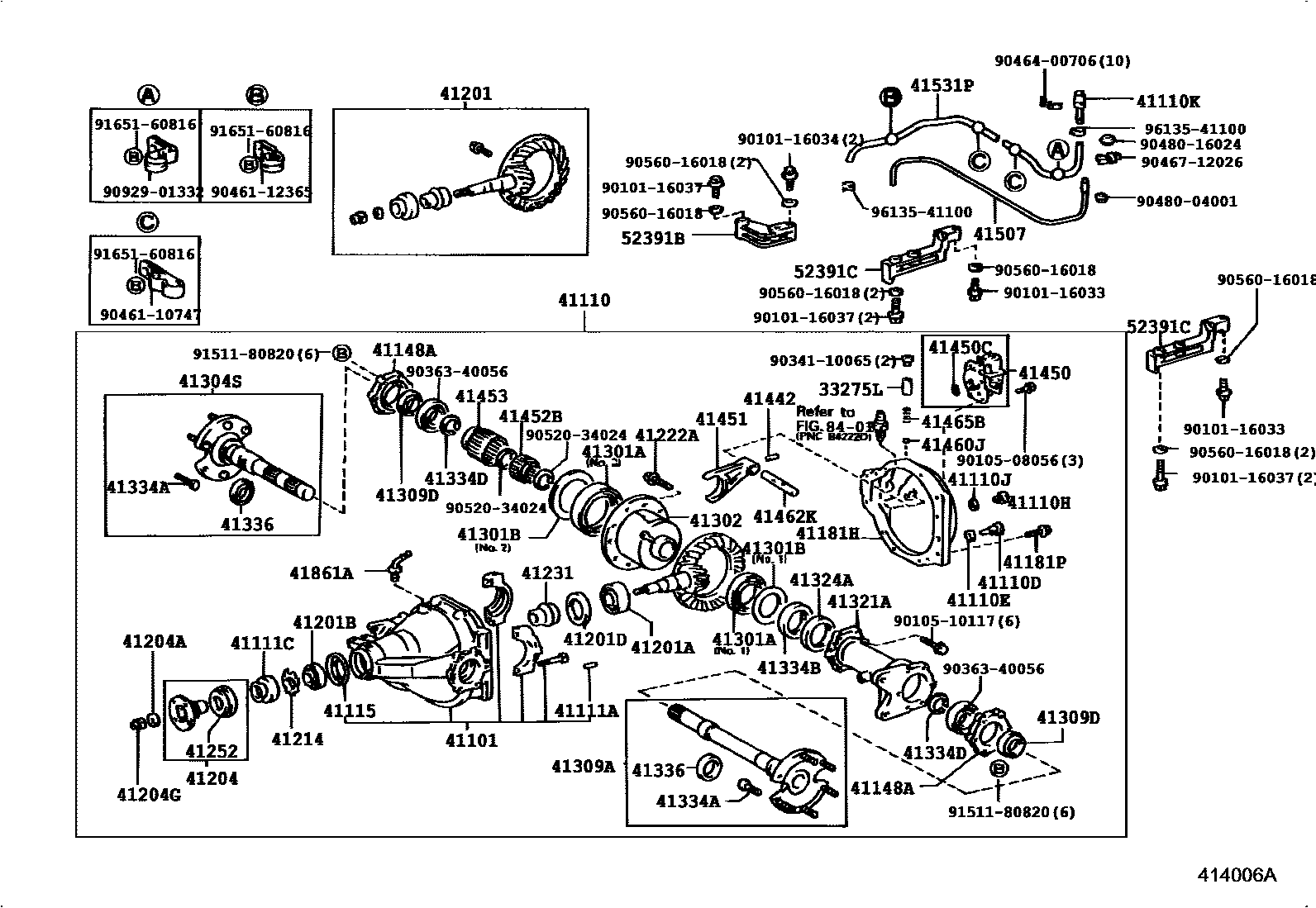

REAR AXLE HOUSING & DIFFERENTIAL
33275LSEAT, REAR DIFFERENTIAL LOCK SHIFT DETENT BALL SPRING
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41110CARRIER ASSY, DIFFERENTIAL, REAR
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41110KPLUG, BREATHER (FOR REAR DIFFERENTIAL)
41111APIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER)
41111CSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41115RING, DIFFERENTIAL OIL STORAGE
41148ARETAINER,DIFFERENTIAL BEARING
41181HCOVER, REAR DIFFERENTIAL CARRIER
41181PBOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING)
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204GNUT (FOR DRIVE PINION COMPANION FLANGE REAR)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301BWASHER(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
41304SSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41309ASHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR
41309DSEAL OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41321ATUBE, DIFFERENTIAL EXTENSION FLANGE
41324AGUIDE, OIL SEAL
41334ABOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41442BOLT OR PIN, SHIFT FORK LOCK
41450ACTUATOR, DIFFERENTIAL LOCK SHIFT
41450CRING, O (FOR REAR DIFFERENTIAL LOCK SHIFT ACTUATOR)
41451FORK, REAR DIFFERENTIAL LOCK SHIFT
41452BPIECE, DIFFERENTIAL LOCK SPLINE
41453SLEEVE, REAR DIFFERENTIAL LOCK
41460JBALL (FOR REAR DIFFERENTIAL LOCK CYLINDER)
41462KSHAFT, REAR DIFFERENTIAL LOCK SHIFT FORK
41465BSPRING, COMPRESSION (FOR REAR DIFFERENTIAL LOCK RETAINER)
41507TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER
41531PHOSE, REAR DIFFERENTIAL VACUUM
41861AUNION (FOR REAR DIFFERENTIAL OIL COOLER PUMP)
52391BSUPPORT, DIFFERENTIAL
52391CSUPPORT, DIFFERENTIAL, NO.1
8401SWITCH & RELAY & COMPUTER
9010116033
main90101-16033
9010116034
main90101-16034
9010116037
main90101-16037
9010508056
main90105-08056
9010510117
main90105-10117
9034110065
main90341-10065
9036340056
main90363-40056
9046110747
main90461-10747
9046112365
main90461-12365
9046400706
main90464-00706
9046712026
main90467-12026
9048004001
main90480-04001
9048016024
main90480-16024
9052034024
main90520-34024
9056016018
main90560-16018
9092901332
main90929-01332
9151180820
main91511-80820
9165160816
main91651-60816
9613541100
main96135-41100
71 parts on this diagram · 1 diagram in section
