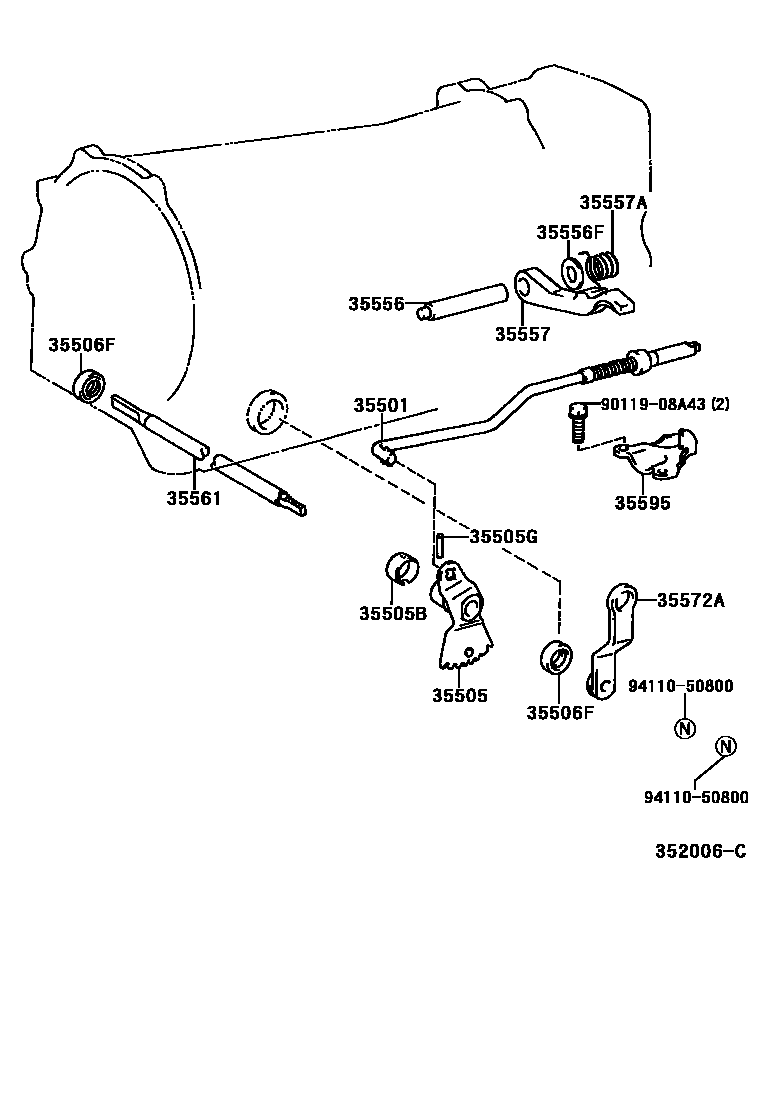

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A442F,A443F 0002 1A443F

35501ROD SUB-ASSY, PARKING LOCK

main35501-25010iBXD20199710-199906

main35501-36021iBXD20199601-199710

main35501-36040iBXD20199906-200110

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-36030iBXD20199601-199710

main35505-36040iBXD20199906-200110

main35505-60020iBXD20199710-199906

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20008iBXD20199601-200110

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04012iBXD20199601-200110

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iBXD20199601-200110

35556SHAFT, PARKING LOCK PAWL

main35556-36010iBXD20199601-200110

35556FWASHER, PLATE (FOR PARKING LOCK PAWL SHAFT)

main90201-16012iBXD20199601-200110

35557PAWL, PARKING LOCK

main35557-36010iBXD20199601-199906

main35557-36020iBXD20199906-200110

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-30010iBXD20199601-200110

35561SHAFT, MANUAL VALVE LEVER

main35561-36010iBXD20199601-200110

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-65010iBXD20199601-200110

35595BRACKET, PARKING LOCK PAWL

main35595-36010iBXD20199601-199906

main35595-36020iBXD20199906-200110

9011908A43

main90119-08A43

9411050800

main94110-50800

14 parts on this diagram · 2 diagrams in section
