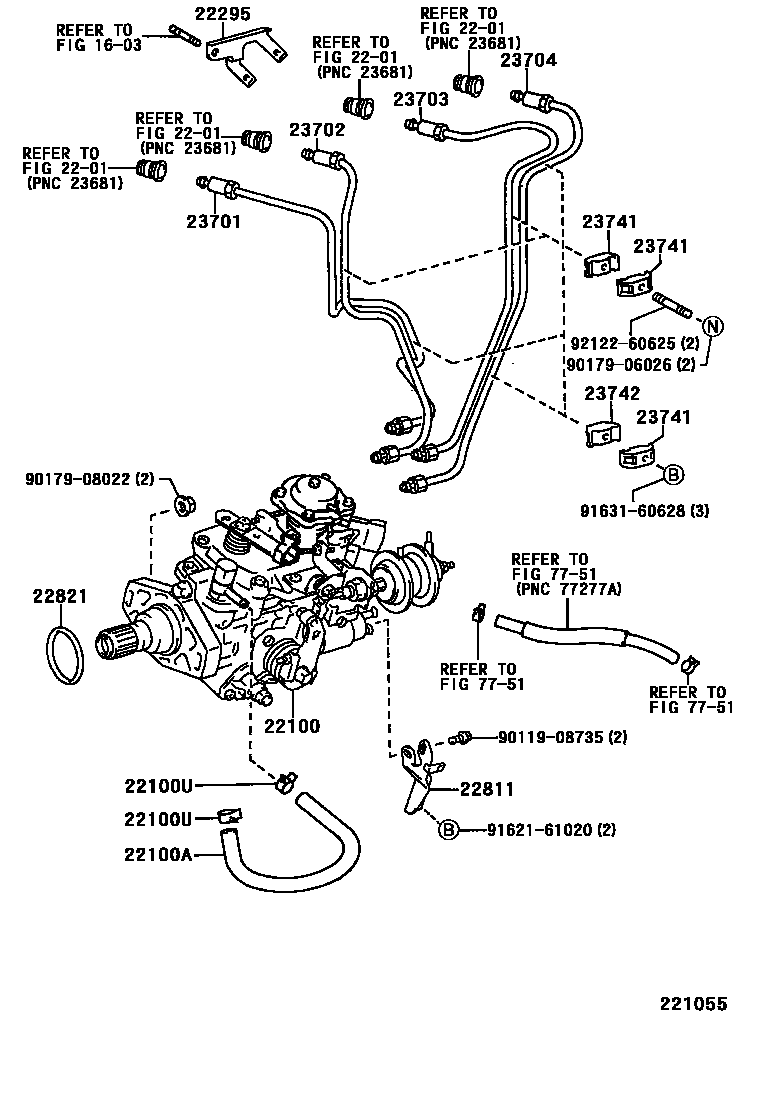

INJECTION PUMP ASSEMBLY
1603RADIATOR & WATER OUTLET
2201INJECTION NOZZLE
22100PUMP ASSY, INJECTION OR SUPPLY
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
22100UCLIP, HOSE FUEL(FOR INJECTION PUMP)
22295BRACKET, INJECTION PUMP CONNECTOR
22811STAY, INJECTION PUMP, NO.1
22821GASKET, INJECTION PUMP
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23741CLAMP, INJECTION PIPE, NO.1
23742CLAMP, INJECTION PIPE, NO.2
7751FUEL TANK & TUBE
9011908735
main90119-08735
9017906026
main90179-06026
9017908022
main90179-08022
9162161020
main91621-61020
9163160628
main91631-60628
9212260625
main92122-60625
21 parts on this diagram · 2 diagrams in section
