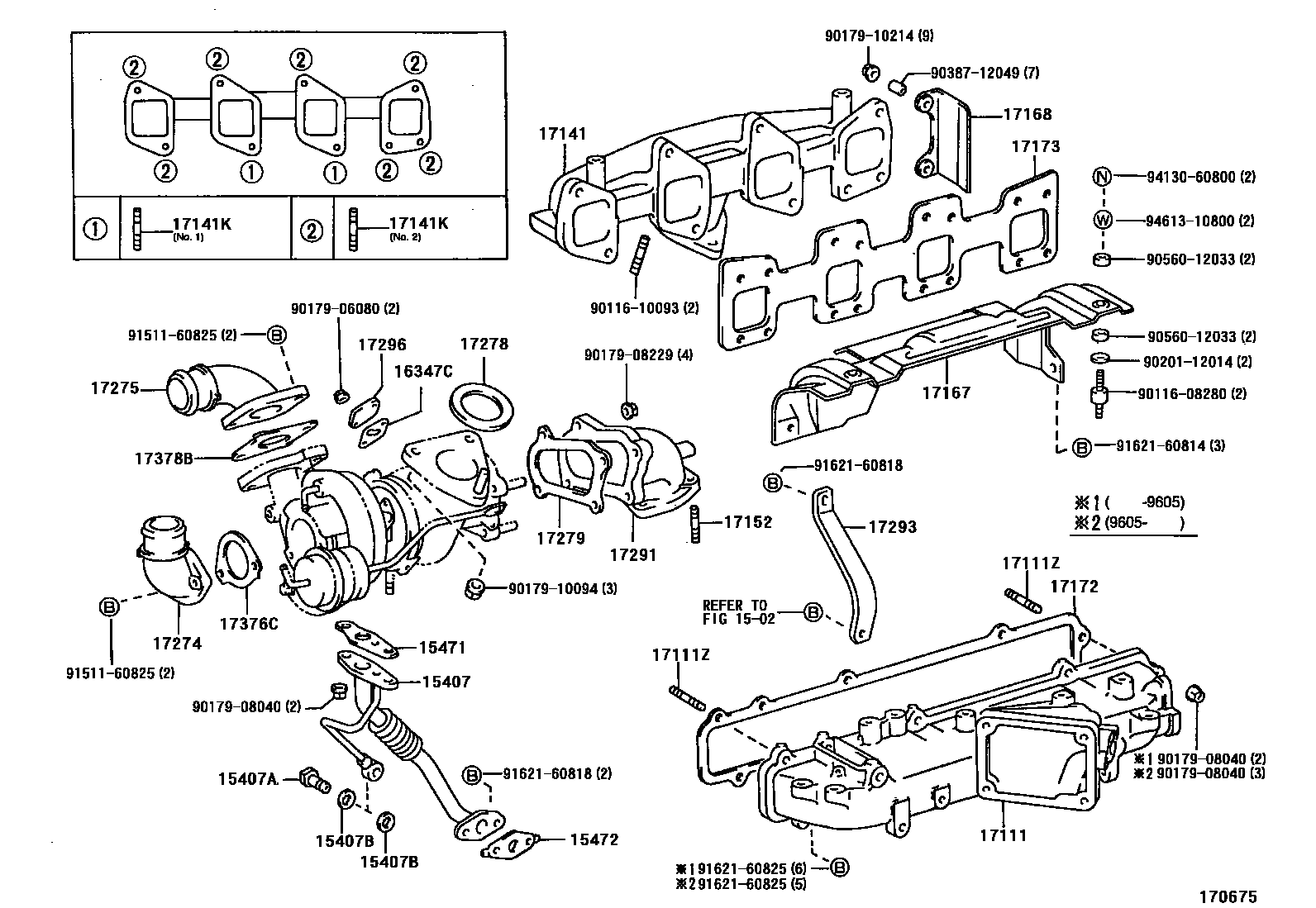

MANIFOLD
1502
15407PIPE SUB-ASSY, TURBO OIL INLET
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
15407BGASKET(FOR TURBO OIL INLET PIPE)
15471GASKET, TURBO OIL INLET
15472GASKET, TURBO OIL OUTLET, NO.1
16347CGASKET(FOR TURBO WATER PIPE)
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17172GASKET, MANIFOLD TO CYLINDER HEAD
17173GASKET, EXHAUST MANIFOLD TO HEAD
17274ELBOW, COMPRESSOR INLET
17275ELBOW, COMPRESSOR OUTLET
17278GASKET, TURBO TO EXHAUST MANIFOLD
17279GASKET, TURBINE OUTLET ELBOW
17291ELBOW, TURBINE OUTLET
17296PLATE, BEARING HOUSING, SIDE
17378BGASKET, AIR TUBE, NO.3
9011608280
main90116-08280
9011610093
main90116-10093
9017906080
main90179-06080
9017908040
main90179-08040
9017908229
main90179-08229
9017910094
main90179-10094
9017910214
main90179-10214
9020112014
main90201-12014
9038712049
main90387-12049
9056012033
main90560-12033
9151160825
main91511-60825
9162160814
main91621-60814
9162160818
main91621-60818
9162160825
main91621-60825
9413060800
main94130-60800
9461310800
main94613-10800
41 parts on this diagram · 4 diagrams in section
